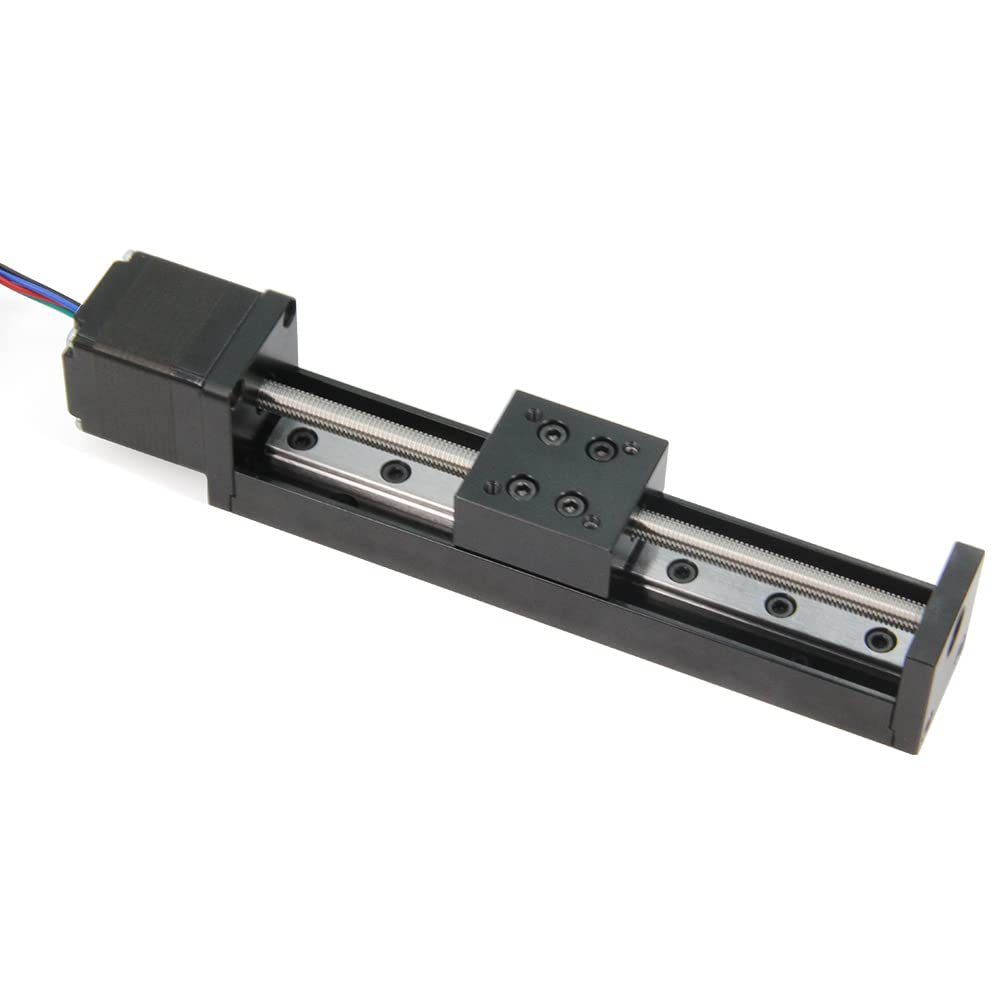

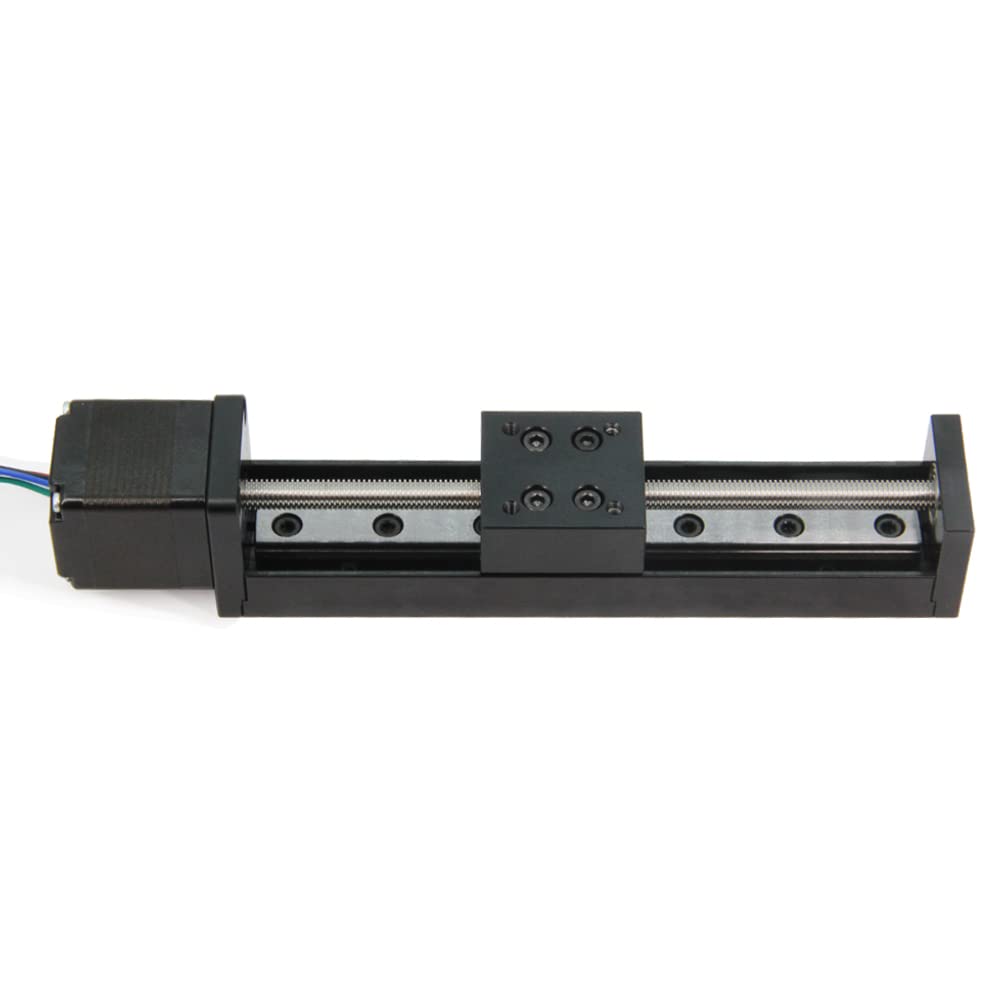

Mini Linear Rail Guide Small Sliders Lead Screw T6x1 with Nema 11 Stepper Motor for CNC Router Parts X Y Z Linear Stage Actuator 100mm Effective Stroke (Size:100mm)
4.2 (103 items)
Limited Time Sale$28.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219314752 | Release Date | 2026/05/03 | List Price | $19.20 | Model Number | 219314752 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Name: Mini Linear Rail Guide Small Sliders Lead Screw T6x1 with Nema 11 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator 100mm Effective Stroke Tips: Make sure you have the drive and controller, no drive and controller stepper motor will not work Linear Stage Actuator Parameter: Effective Travel Length: 100mm Total length: 175mm Type: linear system moulde Lead Screw type: T6x1: diameter 6mm and lead 1mm pitch 1mm Weight:about 326g Stepper motor Parameter: Step angle: 1.8 degree Motor voltage: DC 24V Motor flange size: 28mm Motor length: 30mm Holding torque: 6N.cm Current: 0.6A Resistance: 5.5 ohm Inductance: 3.2 mH Rotor Inertia: 8g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Widely used for CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement. Package Included: 1Kit Linear Stage Actuator with NEMA11 Stepper Motor Please Note: Any question or problem, do not hesitate to contact us, we will reply you within 24 hours As Manual measurement, please allow slight errors on size The color may exist slight difference due to different screen displays
- The Linear Guide Material: made of high quality metal,surface oxidation treatment,high hardness and excellent performance.
- Effective Travel: 100mm Effective Travel, T6x1: diameter 6mm and lead 1mm pitch 1mm ( The lead screw moves 1mm in one turn).
- High Precision: Linear Guide Repeat positioning accuracy of ±0.05mm, linear slide rail with high precision smooth movement.
- Load: Horizontal maximum load capacity: 2.5kg; Vertical maximum load capacity: 1kg; Speed: 0-10mm/s
- Widely used for CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.
| Item Weight | 13.1 ounces |
|---|---|
| Manufacturer | Yeebyee |
| Item model number | YE012-2 |
| Package Dimensions | 9.29 x 2.2 x 2.17 inches |
