Linear Actuator 12V, Stroke - 50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 450mm 500mm Heavy Duty Electric Linear Motion Actuator Motor Push Rod for Automotive Medical Device

The linear actuator is an electric drive device that converts the rotary motion of the motor into a linear reciprocating motion of the push rod.1. Built-in limit switches. When the telescopic bar runs to the top or to the top, it will automatically disconnect the electricity. 2. Product features: drive other objects to push, pull, rise, drop.3. It can be stop at any position, with self-locking function.4. Low noise: The low noise design, noise level below 50 dB5. The push rod is driven by a DC motor and the screw rotates. The telescopic rod can only telescope and will not rotate.6. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.7. The power of putting is related to speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power.8. Power Saving: The wire uses oxygen-free pure copper as a conductor, low resistance, durable, power saving and long service life. Name: linear actuatorMaterial: Aluminum alloyMax. Load capacity: 200kg/2000NInput Voltage: 12V DCSpeed: 5mm/s, 10mm/s, 15mm/s, 30mm/s, 50mm/s, 100mm/s, 160mm/sStroke Length: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mmRated power: 20W, maximum 35W.

• 【Heavy Duty】Electric putter, also known as push rod motor, electric cylinder and linear actuator. The same characteristics of push and pull and good environment adapt ability etc. Typical applications include driving electric gates, automatic windows and other home automation assemblies.

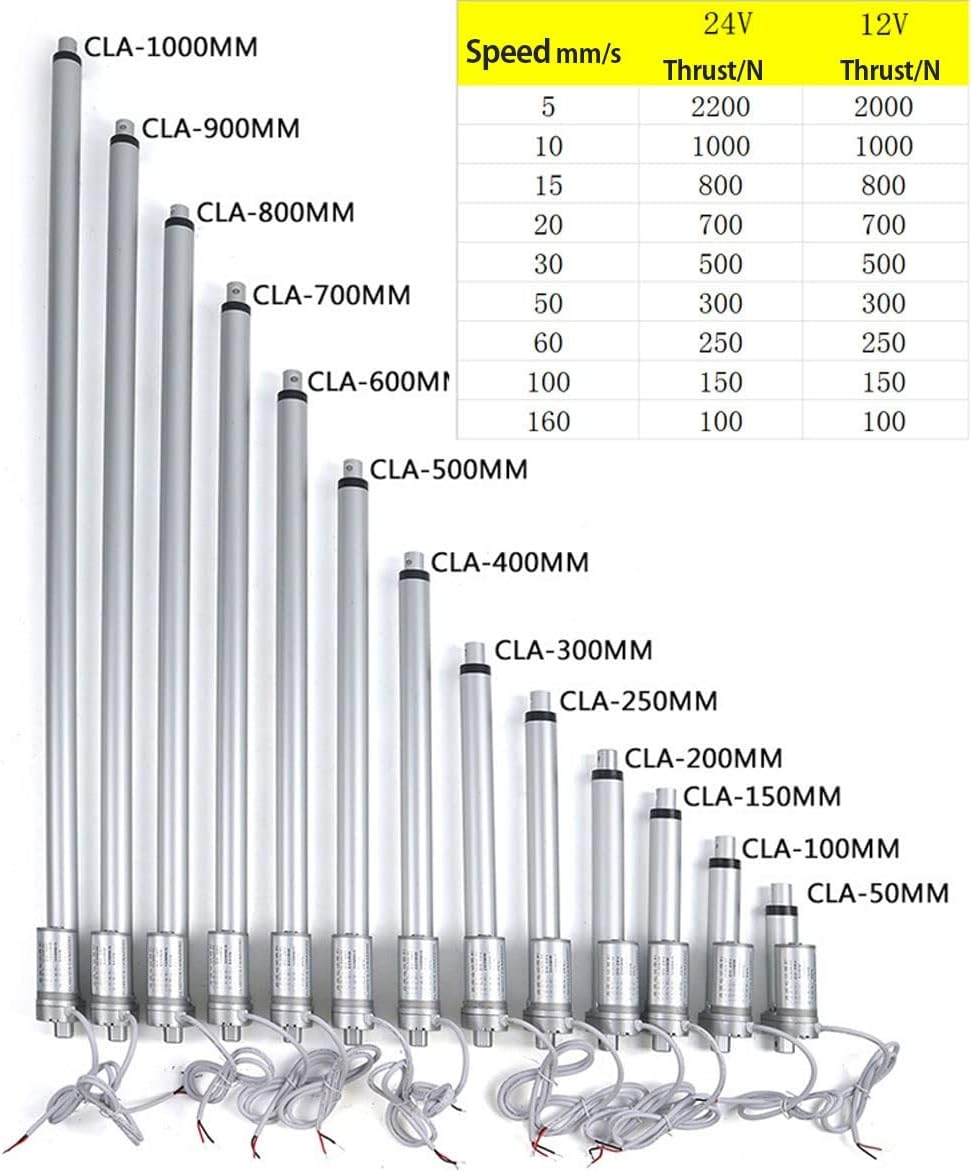

• 【Specification】Permanent magnet DC motor drive, DC 12V, Stroke Length: 50mm - 500mm, Limit Switch: Built-in, Speed: 5mm/s - 160mm/s, Maximum Load = 200kg(2000N).
• 【Material】This linear actuator features thick aluminum alloy tube and the metal motor housing for functional load capacity and durability. It is sturdy, well-sealed, waterproof, dustproof. It has built-in limit switches and designed with IP65 level protection.
• 【Powerful and Quiet】Provide max.2000N pushing force. Works with only 48dB, quiet, and not to create annoying sound. Stop at any place you want. Metal gears make movement more smooth.
• 【Multifunction】 It can be used to open and close a mechanical door, electric medical bed, electric sofa, electric stand lifting rod, industrial electric lifting system, lift tables, massage bed, automatic chicken coop door, electric window opener, etc.
