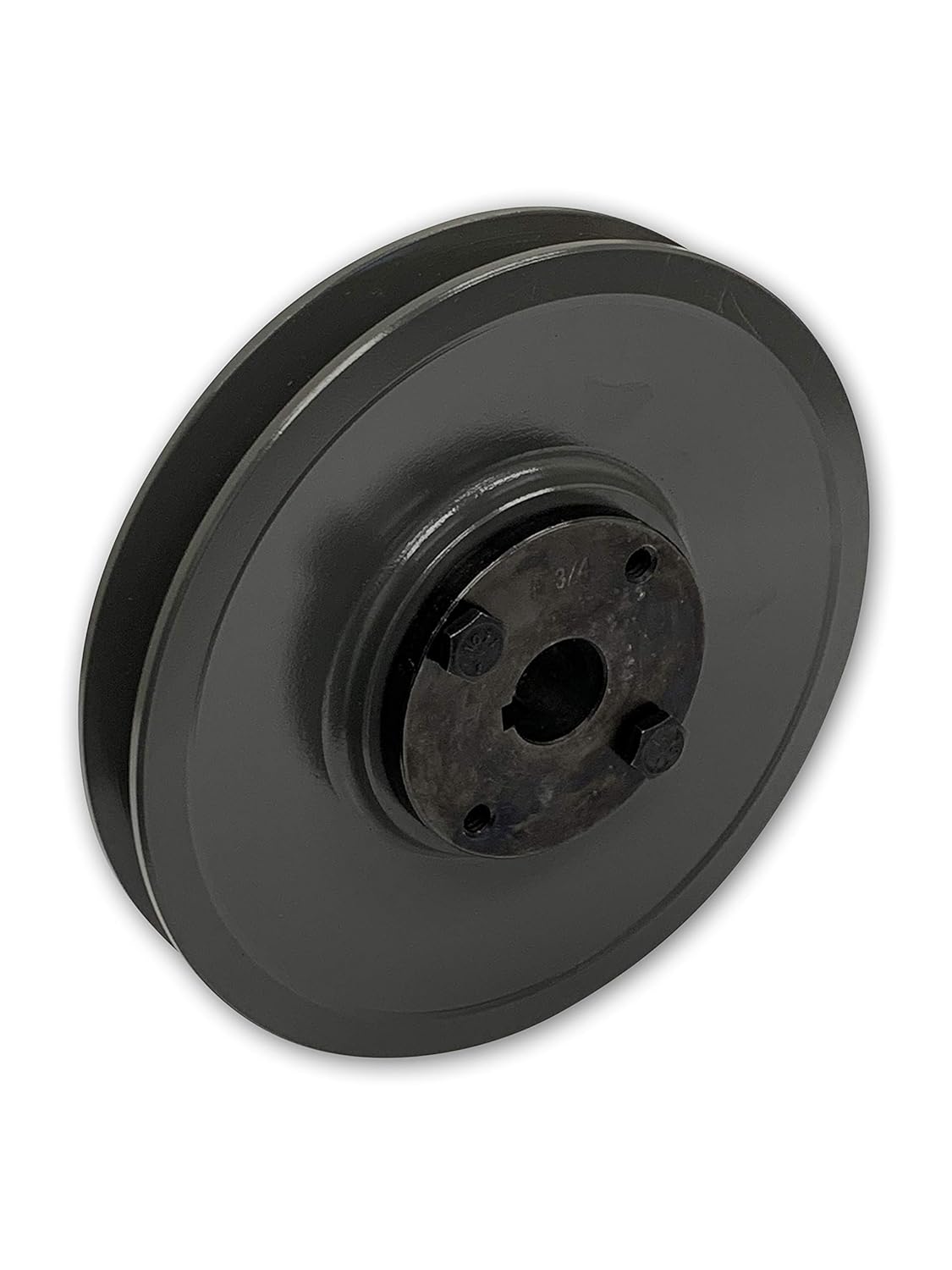

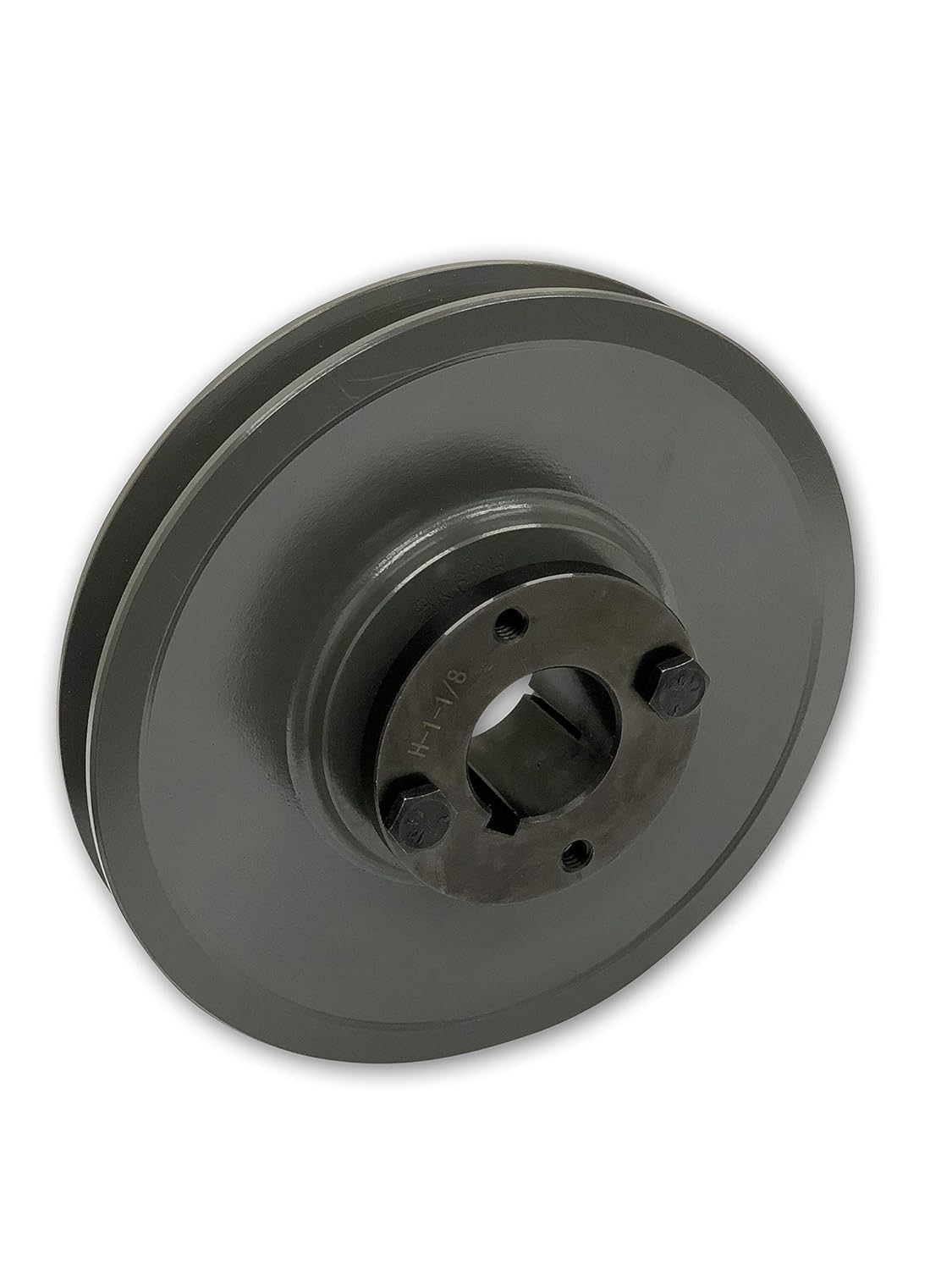

Single Groove 5.95" Cast Iron Electric Motor" H" Pulley/Sheave, Bushing Included, for 5/8" Top Width B/5L/BK/5LK Section V Belt, 1 Groove Pulley (No Bushing/Standalone Pulley, BK62H)
4.9 (121 items)
Limited Time Sale$30.57 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219315552 | Release Date | 2026/05/03 | List Price | $20.38 | Model Number | 219315552 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
5.95" Outside Diameter, Cast Iron BK62H Pulley with smooth-surface engineered for rigorous use, long life and minimal maintenance. This is a 2 piece bushing style pulley. Electric motor frame size guide. ...... 5/8" Shaft diameters are found on 56, 56H, 56Y Frame motors ........ 7/8" Shaft diameters are found on 56HZ, 145T, 182Y Frame motors.......... 1-1/8" Shaft diameters are found on 182T and 184T frame motors.......... 1-3/8" Shaft diameters are found on 213T and 215T frame electric motors
- 5.95" Outside Diameter , Single Groove H Style Pulley With No Bushing
- This Cast Iron Single Groove Pulley Takes 1 Belt. The Pulley Is Only To Be Used With " H " Style Tapered Bushings.
- Groove Will Fit The Following V-belt Type (5/8" Top Width 5l / 5lk / B / Bk / Bx ). This Pulley Will Also Fit 1/2" Top Width Belts ( A / 4l / Ak / 4lk / Ax ) However The Belt Will Sit 1/4" To 1/2" Deeper In The Grooves On Average.
- Motor Pulley Is Made of Cast Iron, The H Bushing Is Made from C45 Steel with Black Oxide Finish.
| Size | No bushing / Standalone Pulley |
|---|---|
| Model | BK62H |
| Belt Style | V Belt |
| Brand Name | PRO-EDGE INDUSTRIAL PNEUMATICS AND CONTROLS |
| Metal Type | Alloy Steel |
| Part Number | BK62H |
| Pulley Type | V-Belt |
| Manufacturer | PRO-EDGE INDUSTRIAL PNEUMATICS AND CONTROLS |
| Material Type | iron cast_iron |
| Number of Items | 1 |
