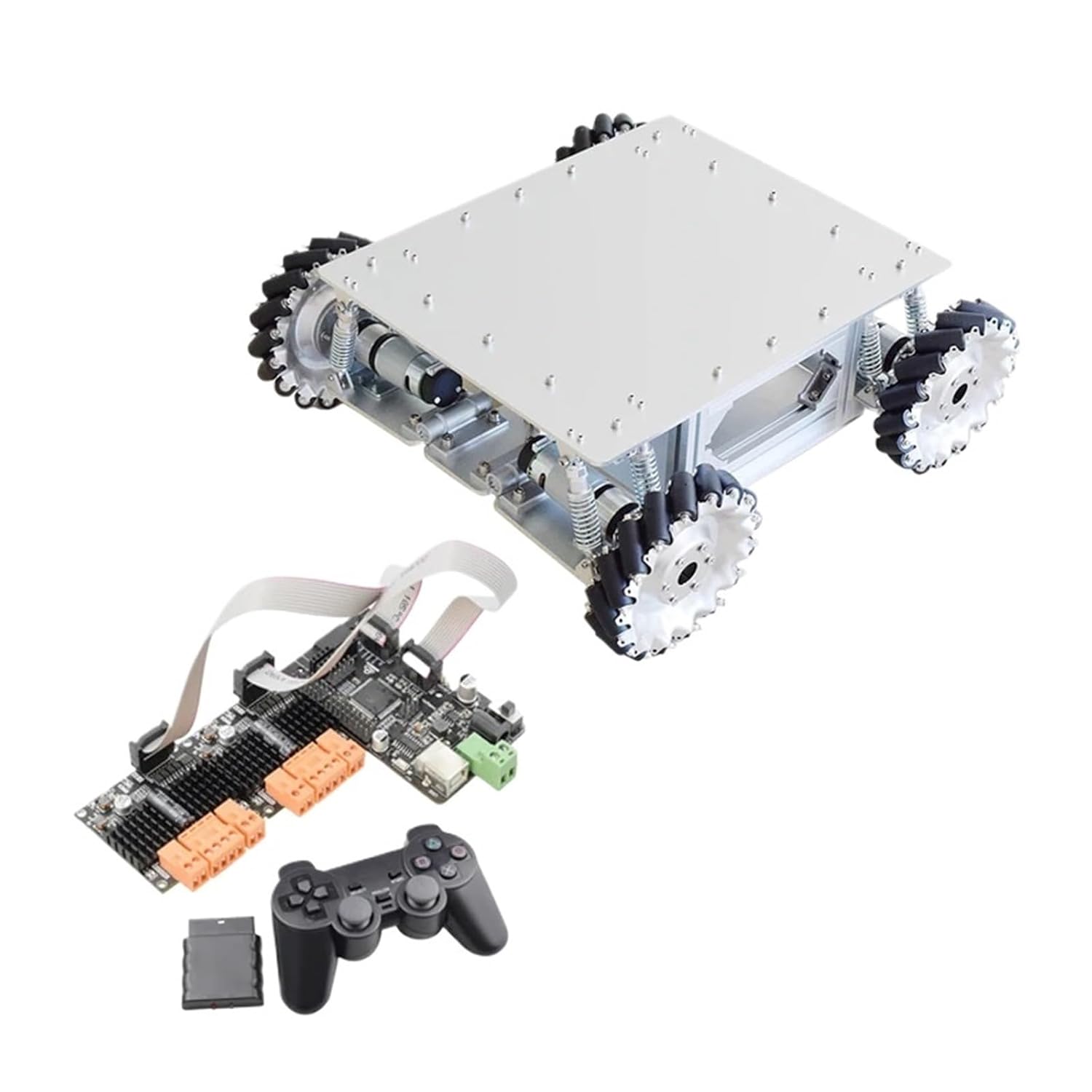

60KG Load Shock Absorption Mecanum Wheel Robot Car Chassis Kit with 4pcs Planetary Gear Motor for Ardo STM32 RaPi(with BT Control)
4.0 (137 items)
Limited Time Sale$1,825.82 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219320512 | Release Date | 2026/05/03 | List Price | $1,217.21 | Model Number | 219320512 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

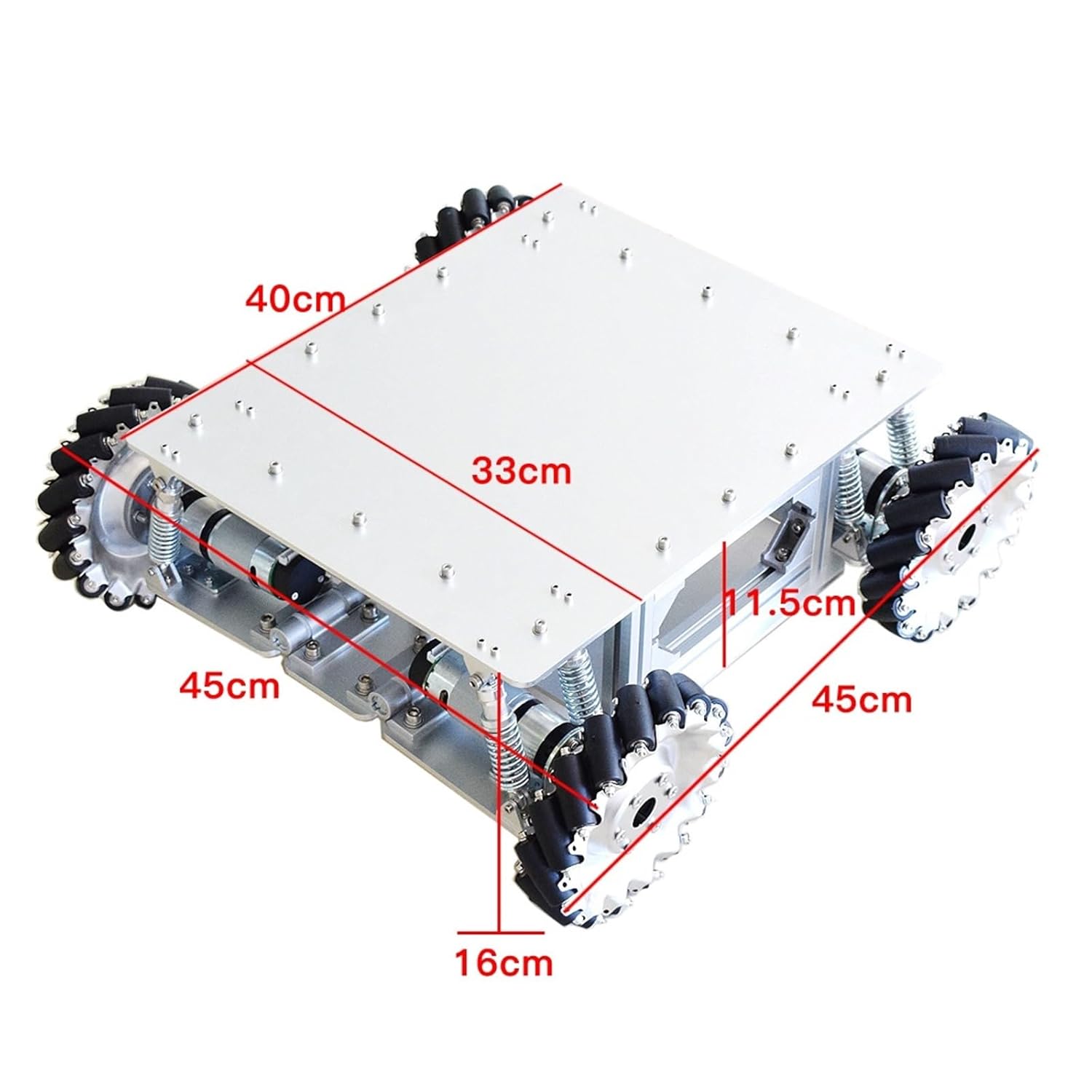

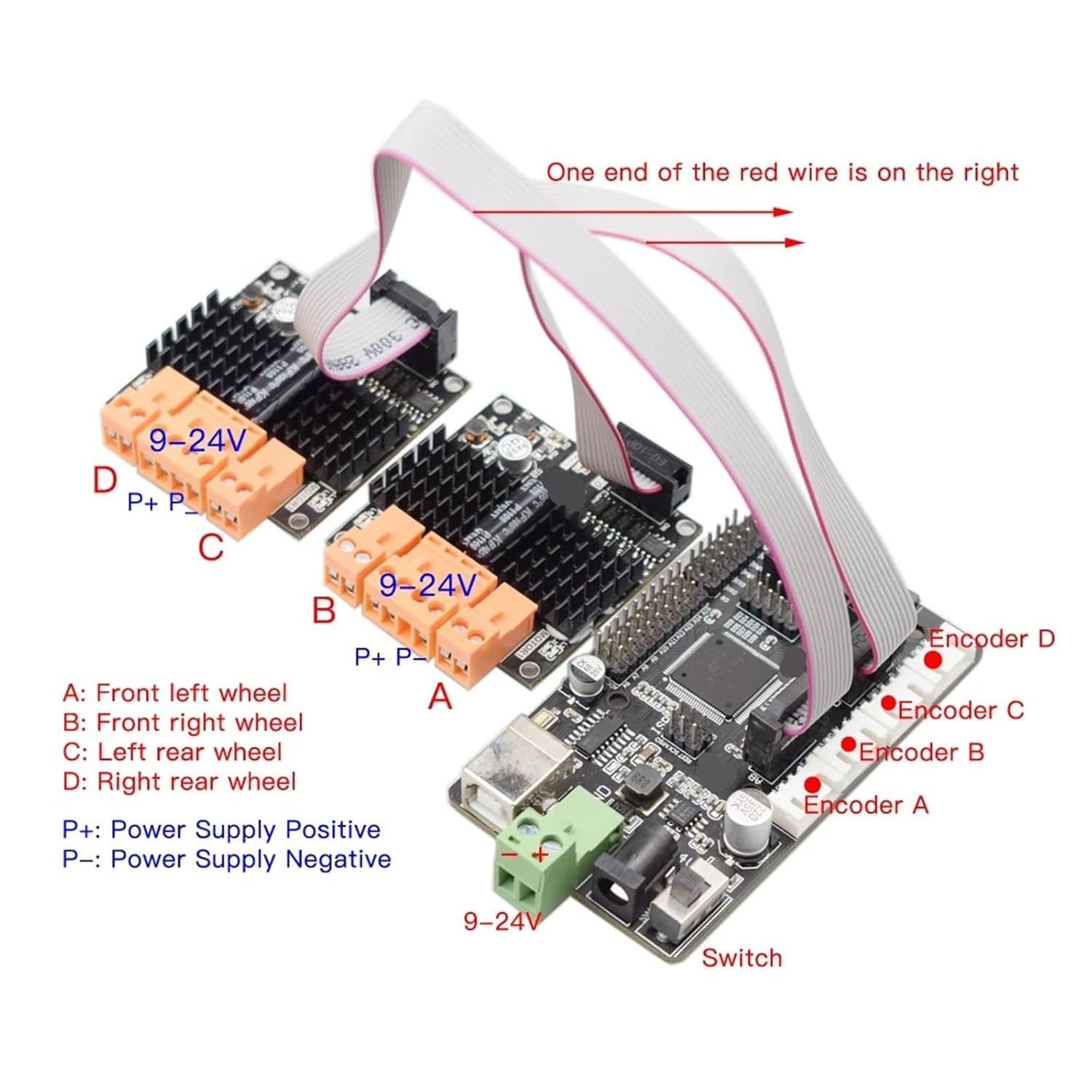

Aluminum alloy plate*2152mm mecanum wheel*424V Motor*4Motor Bracket*4Motor Wires* 1setScrews* 1 setShock-absorbing suspension accessories: 1setcontroller Kit*1 set(Optional)Warm prompt:Not included the battery, Power suggest: 24V lipo batteryParameters:This mecanum wheel robot weight: about 12KGPayload: about 40KGMotor parameters:Model: 36GP-555 Permanent Magnet Planetary Geared MotorSize: 36 * 114mm (excluding output shaft and terminal)Shaft length: 20.0MM unidirectional shaftShaft diameter: 8mmD-shaped shaft double ball bearing positioning structureVoltage: 24vWeight: about 480gWiring specifications: PH2.0-6PIN terminal connectorEncoder specifications: AB dual-phase encoder 11-line basic signal voltage 3.3V or 5.0VWheel Parameters:Size: 6 inch diameter / 152.4mmWeight: about 700g / pieceSmall roller: full bearing structure, very smooth. A set of four bearing 150KgThe diameter of the middle hole is 20mm, surrounded by a 6-division distribution circle with a diameter of 45mm, and the size is 5.20mm in diameterOverall wheel thickness: 45mmWorking voltage: 5VInput voltage (recommended): 7-12VInput voltage (limit): 6-28VDigital I / 0 port: 26 (including 10 PWM outputs)Analog input port: 12IIC interface: 1Serial port: 3 (including USB input port)SPI: 1DC current per I / 0 port: 40 mA5vUSB port DC current: 1000 mAFlash Memory: 256 KB (of which 8 KB is used as bootloader)Static memory (SRAM): 8 KBClock: 16 MHz300W motor drive module parameters:Motor channels: 2Input voltage: 6.5-37VDCControl signal input voltage: compatible with 3-5VControl signal input current: 15mA (with 5V control signal voltage input)PWM input frequency: 18-60KHzPeak current: 70A (up to 100ms), as the temperature increases, the current will be limitedContinuous current: 12A continuous output current per channelWorking temperature: -25 ~ 85 Overheating temperature: 85 ~ 95 Size: 50mm * 50mm * 12.5mmOvervoltage: 37.5VUnder voltage: 6.3V
- Three-dimensional: Enhanced visual depth
- Agile: Compact Mecanum wheel design suitable for both indoor and outdoor environments
- Functionality: Capable of forward, lateral, diagonal movement, rotation, and combined manoeuvres
| Item Weight | 26.5 pounds |
|---|---|
| Manufacturer | LAPBPVQAAR |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
