Starrett Inch Reading Dial Indicator Internal Chamfer Gage - Precision Measurement for Chamfered Holes - 0-1" Range, .001" Graduation, 0-90 Degree Angle - 683-3Z

These gages directly measure the diameter of chamfered holes. No setting master is necessary. When the three-blade plunger is pressed against a fl at surface, the gage should read the set number stamped on the back of the indicator. In case of wear, the gage may be adjusted to read the proper number. 0-1" Range In case of wear, the gage may be adjusted to read the proper number. Indicators are precise gages that visually show movement, typically in very small increments. Among many applications, they are used on fixtures for repetitive inspection or attached to a machine for adjustment. Starrett offers a variety of each of the major classes; mechanical dial, electronic display, lever style test and back plunger. Each type has its own unique strengths. Electronic indicators can output data. Analog dial indicators are easy to comprehend visually. Indicator requirements are very specific and Starrett offers everything you need a broad line of each indicator type, an extensive range of accessories to configure and position the gage, and as needed, an indicator-based, custom engineered solution. Resolution varies from 0.001" to 0.00005".

• No Setting Needed - When the Three-Blade Plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator. This means you'll save time and hassle when taking measurements.
• Precision Fit - Our Internal Chamfer Gages are essential for ensuring a precise fit between mating parts. By Measuring the chamfer diameter, you can determine if it falls within the acceptable tolerance range and make any necessary adjustments.
• Easy to Measure - This Tool makes easy to measure the largest diameter of any chamfer that falls within the range of angles printed on the dial face. No need to guess or try to remember complicated measurements - our gages take the guesswork out of the process.

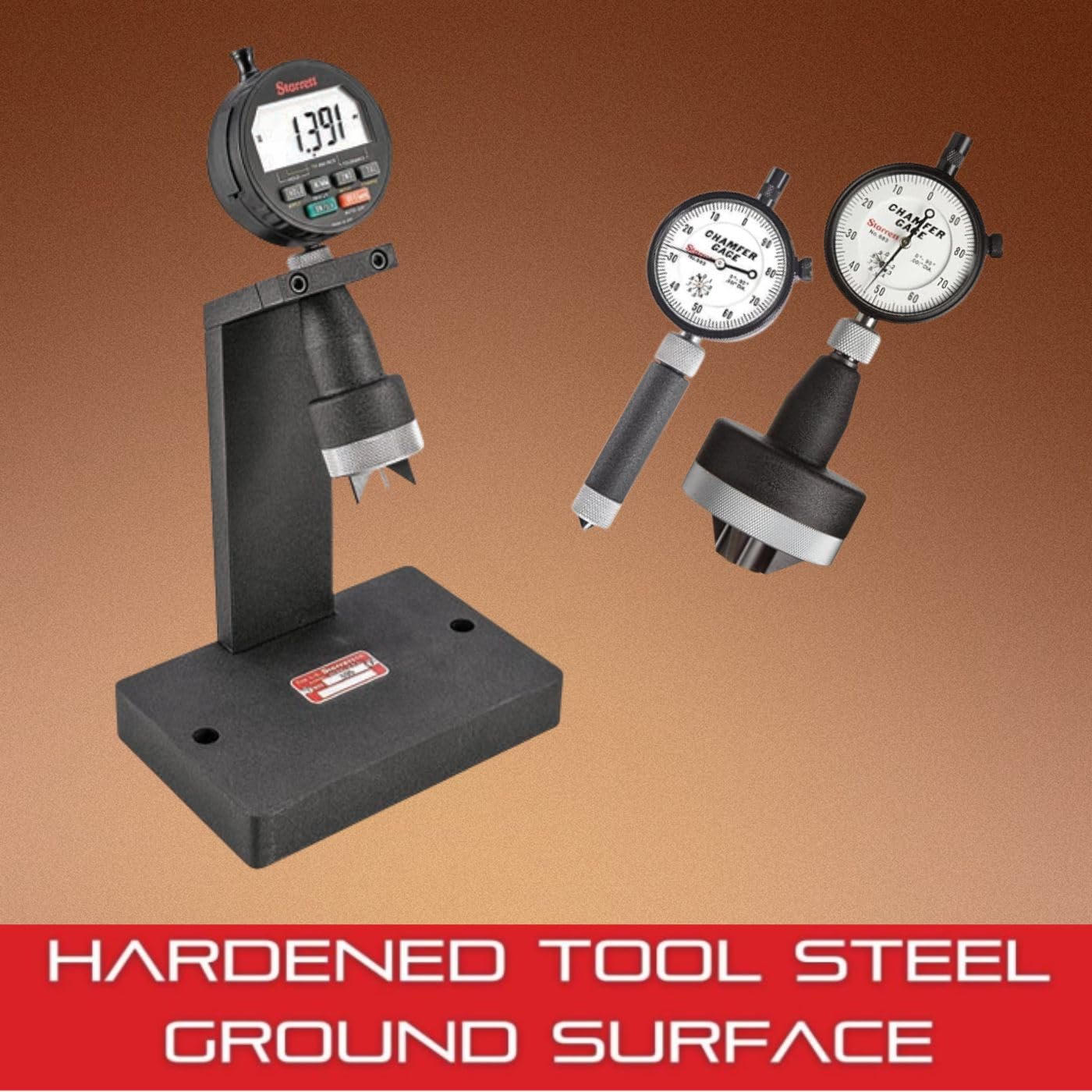

• Industry Leading Quality - Starrett Gages are built to last, with an industry leading quality that you can trust. All ground surfaces are of hardened tool steel with a deluxe padded case.
• The Standard For Excellence - Proudly made in the USA, Starrett combines over 140 years of American heritage and innovation with globally sourced materials to deliver exceptional quality tools and products.
