Sound Town Class-D Plate Amplifier for PA DJ Subwoofer Cabinets, 700W RMS, w/High-Pass Filter Outputs (STPAS-G800)

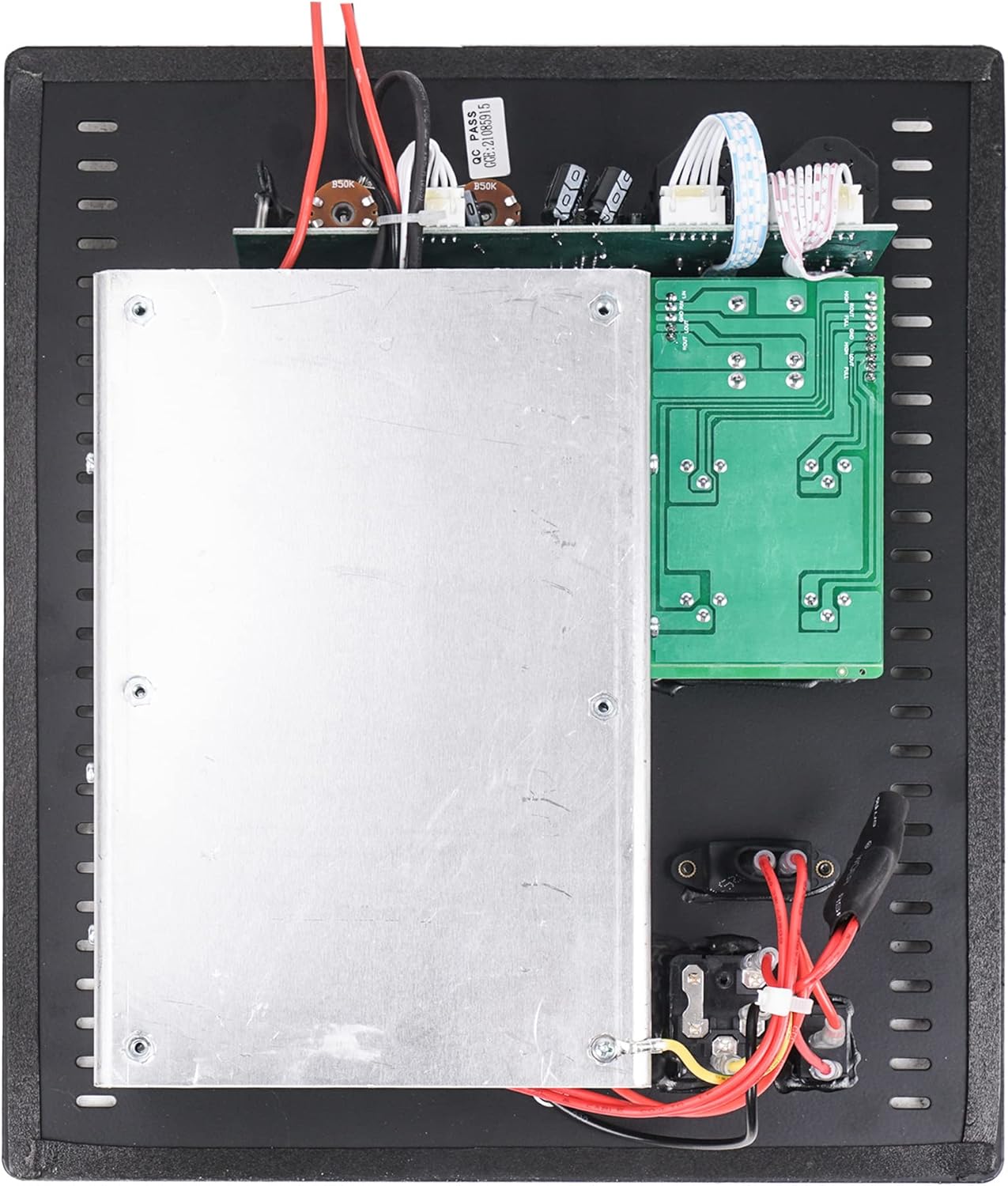

The Sound Town Class-D plate amplifier enables you to build your own powered subwoofer cabinet. The STPAS-G800 power amp is equipped with 2 XLR-1/4" combo and 2 RCA inputs, 2 XLR through, 2 XLR 100Hz high-pass outputs and 2 RCA outputs. It handles formidable 700W RMS power and reproduces low frequencies all the way down to 35Hz. The plate amplifier comes with master volume control and Low Pass Filter (LPF) adjustment. With a dynamic bass enhancement and RMS dynamic processor and second-order IIR low-pass filter built in, it generates deep and clean bass. FEATURES 700W class-D power amplifier plate 2 XLR-1/4" combo and 2 RCA inputs, 2 XLR (through, 100Hz high-pass respectively) and RCA outputs Deep and clean bass with dynamic bass enhancement and RMS dynamic processor and second-order IIR low-pass filter built in Over current and short circuit protection; sturdy construction with integrated aluminum heat sink panel SPECIFICATIONS Specifications Model STPAS-G800 Description High-power subwoofer plate amplifier Type Class-D Impedance Supports 8Ω Power 700W RMS Feature LPF Input 2 x XLR-1/4" combo (mic/line), 2 x RCA Output 2 x XLR (thru), 2 x XLR (100hz high pass), 2 x RCA (full-range) Control Volume, LPF Protection Overload and overcurrent protection Technical specifications LPF 40-160 Hz Voltage 110V-220V switchable Speaker model# reference METIS-15PWG, METIS-18PWG Dimension & Weight Product Width (in.) -- Product Height (in.) -- Product Depth (in.) -- Product Weight (lb.) 4.85 lbs Warranty/Certifications Manufacturer Warranty 1 Year  SUPPORT Â

• 700W class-D power amplifier plate
• 2 XLR-1/4" combo and 2 RCA inputs, 2 XLR (through, 100Hz high-pass respectively) and RCA outputs
• Deep and clean bass with dynamic bass enhancement and RMS dynamic processor and second-order IIR low-pass filter built in
• Over current and short circuit protection; sturdy construction with integrated aluminum heat sink panel
