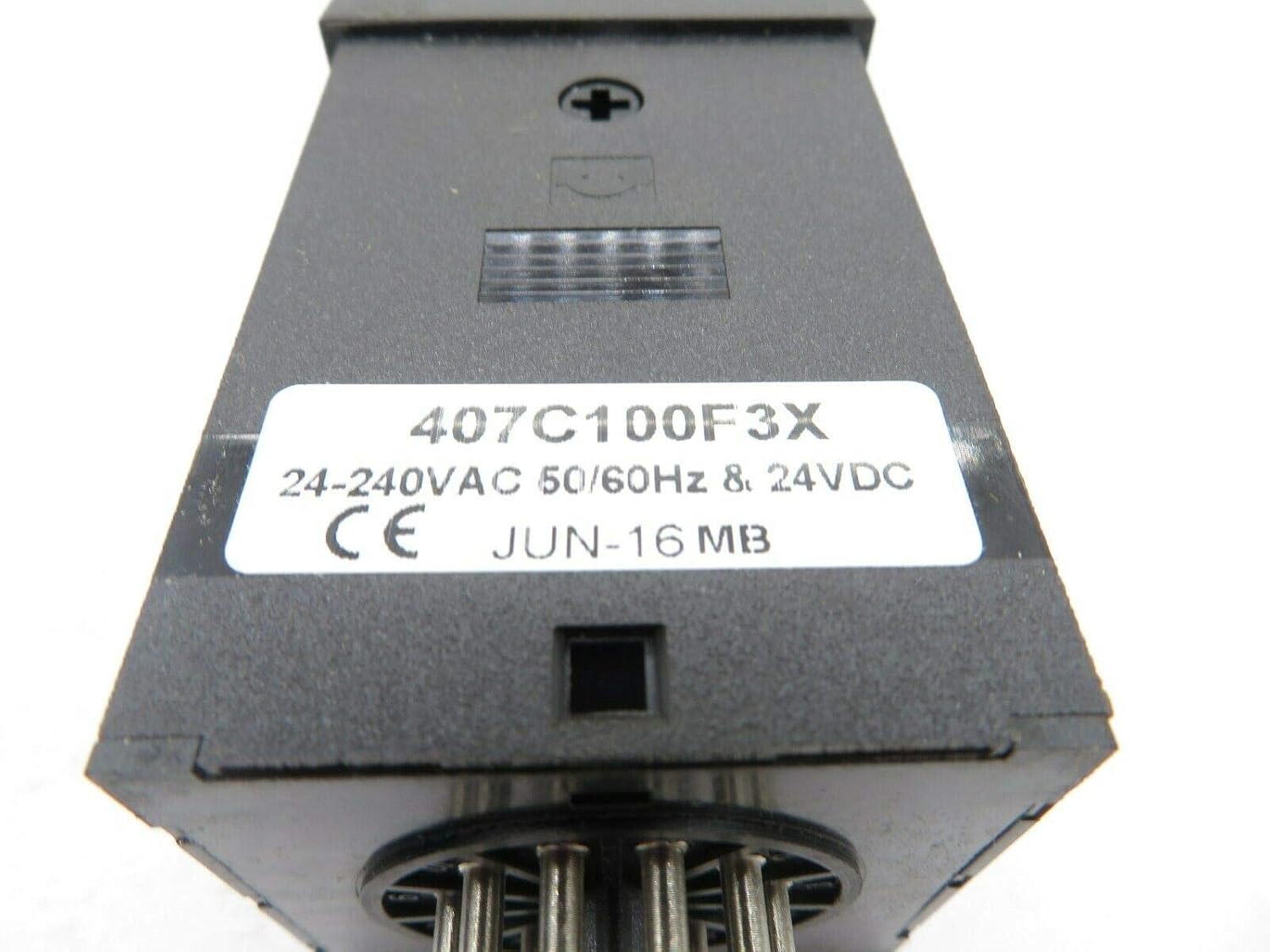

ATC 407C-100-F-3-X 1/16 DIN Multi-Mode Timer, 6 Dial-Selected Ranges, 24 to 240 VAC (50/60 Hz), 11-Pin On-Delay, Off-Delay, Standard

The 407 is available with selectable On-Delay, Off=Delay or Interval timing modes. These timing modes energize a set of DPDT output contacts. When in the On-Delay mode, the 407 begins timing when the timer is energized. In On-Delay mode, the contacts transfer at time out. When in the Off-Delay mode, the 407 begins timing when the Start input is de-energized. In Off-Delay mode, the contacts transfer at time out. When in the Interval mode, the contacts transfer when the timer is energized. In Interval mode, the contacts release a time out.

• All 407 timers can be powered using 24-240 VAC or 24 VDC power, greatly simplifying ordering and inventory management of replacement units
• Propriety integrated circuit includes counting technology along with a stable oscillator to provide repeatable time delays
• The 48mm (1/16 DIN) housing is compact. The 407 is mounted in an 11-pin round socket. With an optional mounting clip, the 407 can be panel mounted
• The Mode Select and Range select switches are located on the side of the unit, so that when panel mounted, these switches are not accessible to the operator
