Linear Scale, DRO-3V Digital readout Display and 3 Pieces 0-1000mm Linear Scales Encoder for Milling Machine EDM Boring Machine Grating Ruler

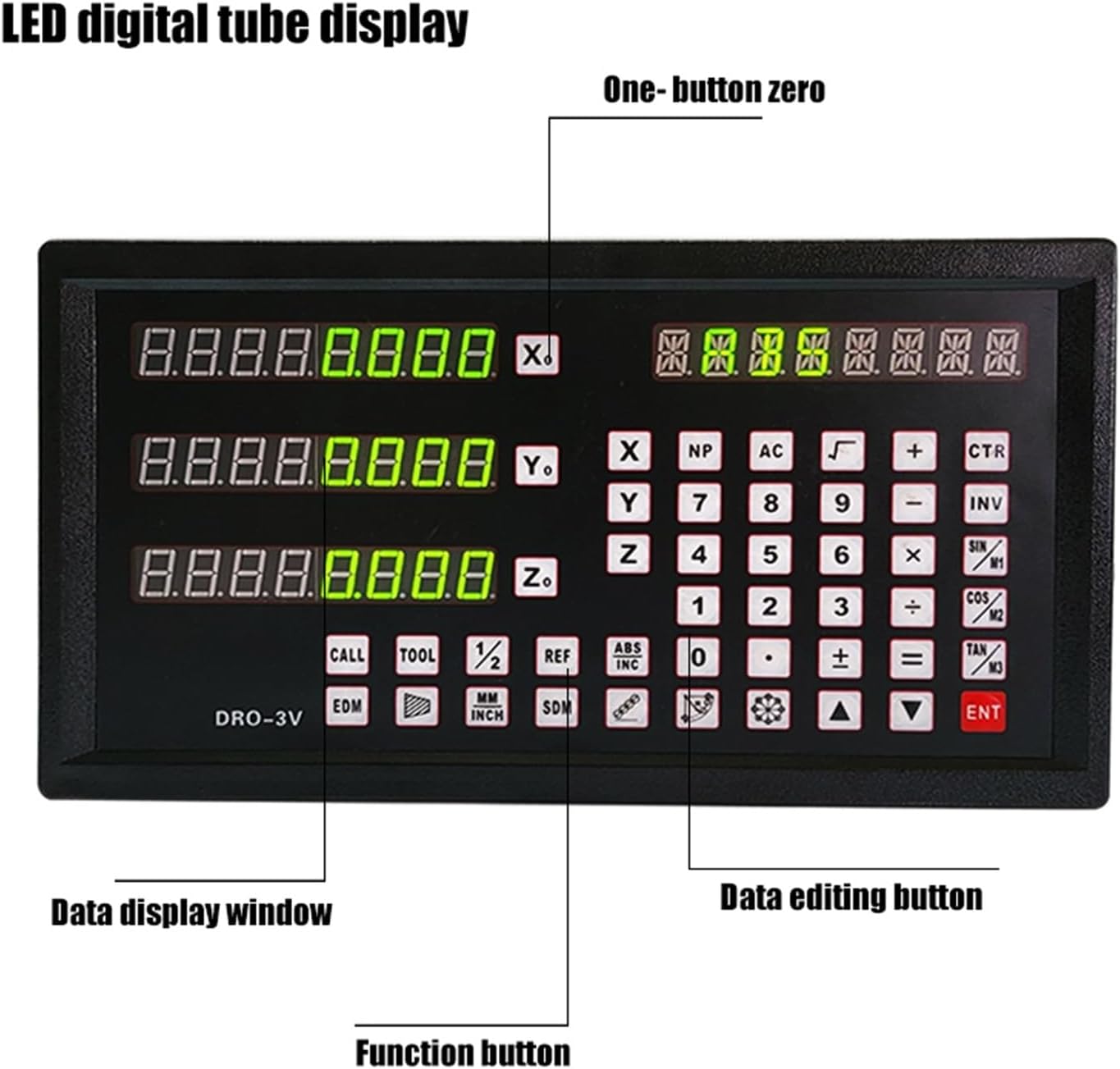

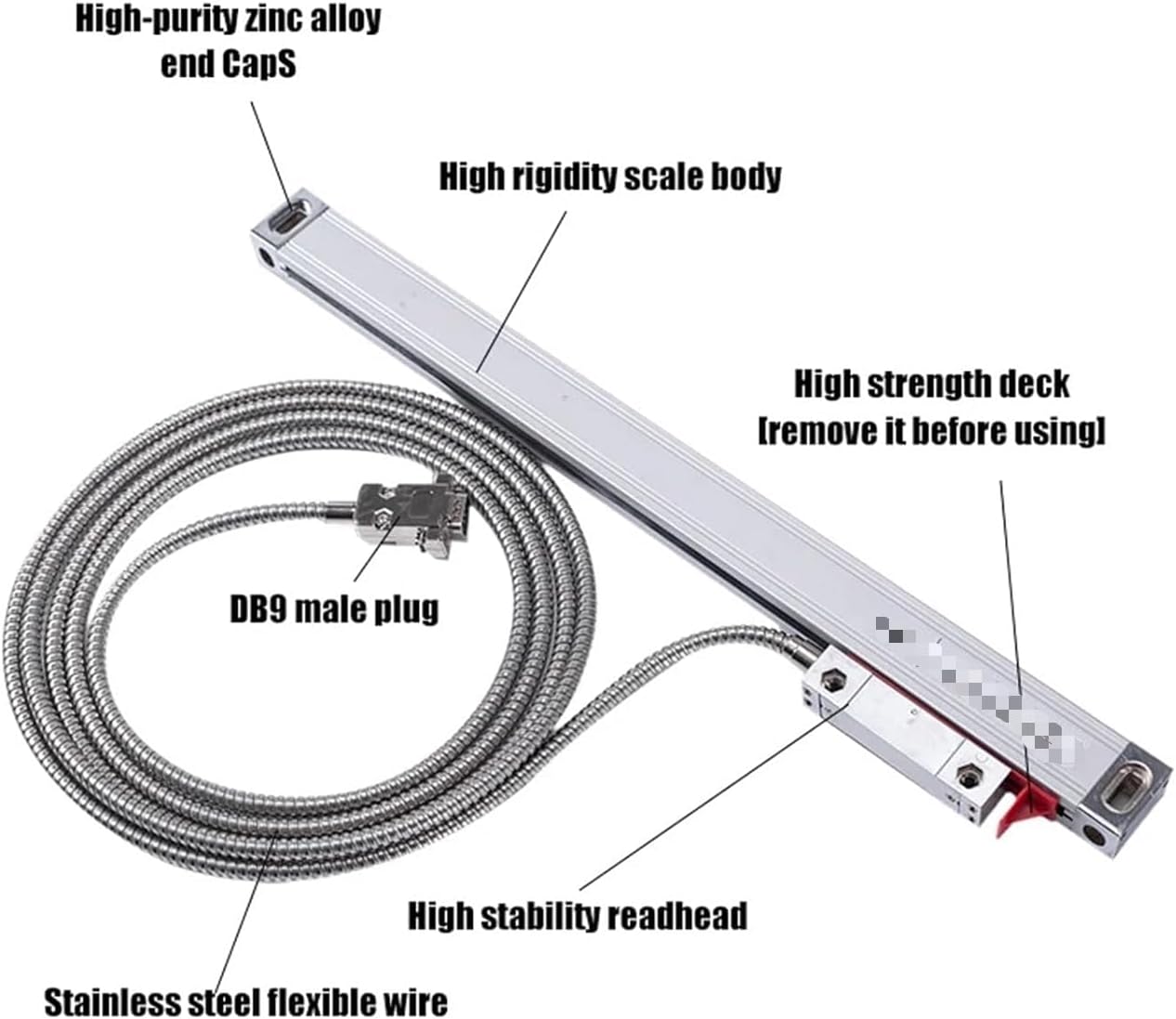

Package Contents -1pc DRO-3V display, display cover, mounting bracket, screw bag, user manual -3pcs 50mm-1000mm travel linear scale, scale cover, mounting bracket, screw bag DRO Function DRO Digital Readout Parameters 1. Voltage Range: AC 90V~260V/50HZ~60HZ 2. Acceptable Signal: TTL Square Wave/EIA-442 3. interface: DB9 4. Acceptable Resolution: 10um, 5um, 2um, 1um, 0.5um Advantages 1. Fully functional, can be widely used in milling machines, lathes, drilling machines, boring machines, wire cutting and EDM machines 2 Wide voltage can be widely used all over the world 3. If necessary, we provide different types of interface kits for different countries such as the United States, Australia, the European Union and the United Kingdom. Function 1: Clear 2: Reset 3: mm/inch mode 4: ABS/INC coordinate conversion 5: 200 sets of secondary data 6: Power-off memory; 7: 1/2 center 8: Linear error compensation 9: Sleep mode 10: Clear 200 sets of Sdm data; 11: ABS/INC mode 12: Calculator 13: Circular drilling 14: Oblique line drilling 15: Inclined surface processing 16: Arc processing 17: Lathe function (optional) 18: Rectangular cavity progressive processing 19: Digital filtering 20: Vibration filtering 21: Lathe function 22: Diameter/radius function 23.Y+Z function 24.RS232 (optional) 25.EDM (optional) Ruler function Parameters Model: NTS-S, NTS-M Available measurement: 50mm to 1000mm Total length: measured value + 142mm Dimensions Cross-sectional dimensions: 21.5mmx33.5mm Input voltage: 5VDC Output signal: TTL Resolution: 5um/0.005mm Cable length: 3 meters

• Comprehensive: This DRO system is fully equipped for a wide range of applications and is suitable for milling, lathes, drilling, boring, wire cutting and EDM machines
• Wide voltage compatibility: Wide compatibility allows for global use, providing convenience for a variety of environments
• User-friendly interface: Features such as clear/reset function, ABS/INC coordinate conversion and memory function for up to 200 data sets improve usability and efficiency
• High accuracy: With an impressive 5um resolution and a variety of measurement options (50mm to 1000mm), this DRO system ensures accurate readings for all your machining needs
