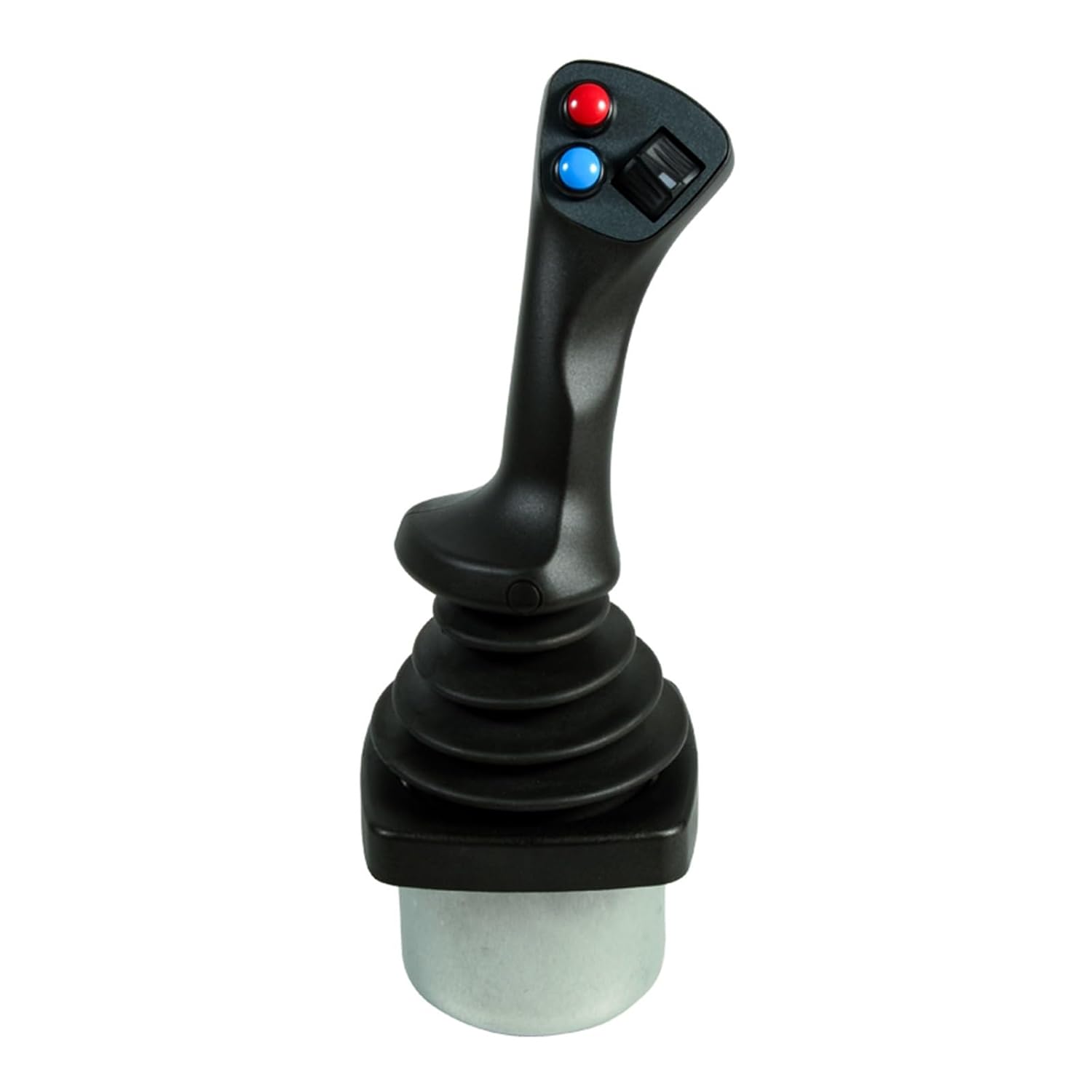

BLAQGFO Electric Joystick SMC81A87L Special Electric Joystick Port Machinery Mining Machinery

SMC81A87L Shantui special handleThe walking control adopts an electric control single handle device, which can realize the "manual and automatic fingertip shifting" function;The working device operation adopts a single handle device, which is flexible, light and comfortable, and highly reliable;1. Basic parameters:1-1. Three-axis industrial joystick SMC81A87L handle1-2. Grip operation X\Y axis: swing limit: square limitX axis: spring self-reset mechanism, swing angle ±20°Y axis: D N R three-speed self-holding mechanism, swing angle ±20°Finger wheel operation Z axis: swing up and down, white indicator light is always onZ axis: spring self-reset mechanism, swing angle ±30°1-3. A87L left-hand operation handle--panel layout2 self-reset buttons on the front of the handle(Button 1: self-reset red; button 2: self-reset green)Thumbwheel 1: black self-reset1-4. Operation life: joystick: more than 5 million times; button: 1 million times1-5. Installation method: flange type from top to bottom installation, standard Shantui model dedicated installation panel1-6. Protection level: IP66 above the panel1-7. Working temperature: -40+70℃; Storage temperature: -50+80℃~ ... Dual signal output: 0.5--2.5--4.5VZ axis single signal output: 0.5--2.5--4.5V2-3. Harness definition: Meets ROHS requirements,Lead connector model: Tyco 16P connector TE 1-964449-122# harness; cable length: 400±10mmNote: Installation method: Do not change the original vehicle installation aperture; harness: Do not change the original vehicle cable, and play

• 1. Comprehensive industrial joystick: The Electric joystick SMC81A87L is a high-quality three-axis joystick designed for special electric joystick port machinery in the mining industry. With its advanced grip operation and finger wheel control, it provides precise and efficient control over X, Y, and Z s movements.
• 2. and reliable: This joystick is built to withstand heavy usage with a lifespan of more than 5 million joystick operations and 1 million button presses. Its flange type installation method ensures secure and stable mounting, while the IP66 protection level guarantees resistance to dust and water.
• 3. User-friendly design: The A87L left-hand operation handle features a carefully designed panel layout that facilitates easy access to essential controls. It includes two self-reset buttons for quick resetting (red and green), as well as a black self-reset thumbwheel for enhanced functionality.
• 4. Wide temperature range compatibility: Whether you're working in extreme cold or hot conditions, this Electric joystick can handle it. With a working temperature range of -40℃ to +70℃ and a storage temperature range of -50℃ to +80℃, it ensures reliable performance in any environment.
• 5. Convenient harness and cable setup: The joystick comes with a Tyco 16P connector TE 1-964449-1 harness that meets ROHS requirements. The 22# harness has a cable length of 400±10mm, allowing for easy -and-play installation without the need to modify the original vehicle installation aperture or cable.
