Brake Drum/Disc Lathe Small and Medium Vehicle Brake Disc and Drum Repair Machine with Variable Frequency Speed Control 110V 1100W

Product Parameters Model: T8445 Processing diameter range Brake drum: 180-450mm (7.1-17.7 inches) Brake disc: ≤400mm (15.7in) Rotating speed of workpiece: 30/52/85r/min Maximum travel of tool: 170mm (6.7in) Feeding capacity: 0.16mm/r Motor power: 1.1KW Machine voltage: 110V 60Hz Machine size: 100x98x110cm (39.4x38.6x43.3 inches) Net weight: 264kg (582LBS)

• Main Parameters: Processing diameter range Brake drum: 180-450mm (7.1-17.7 inches).Brake disc: ≤400mm (15.7in). Rotating speed of workpiece: 30/52/85r/min.Maximum travel of tool: 170mm (6.7in).Feeding capacity: 0.16mm/r.

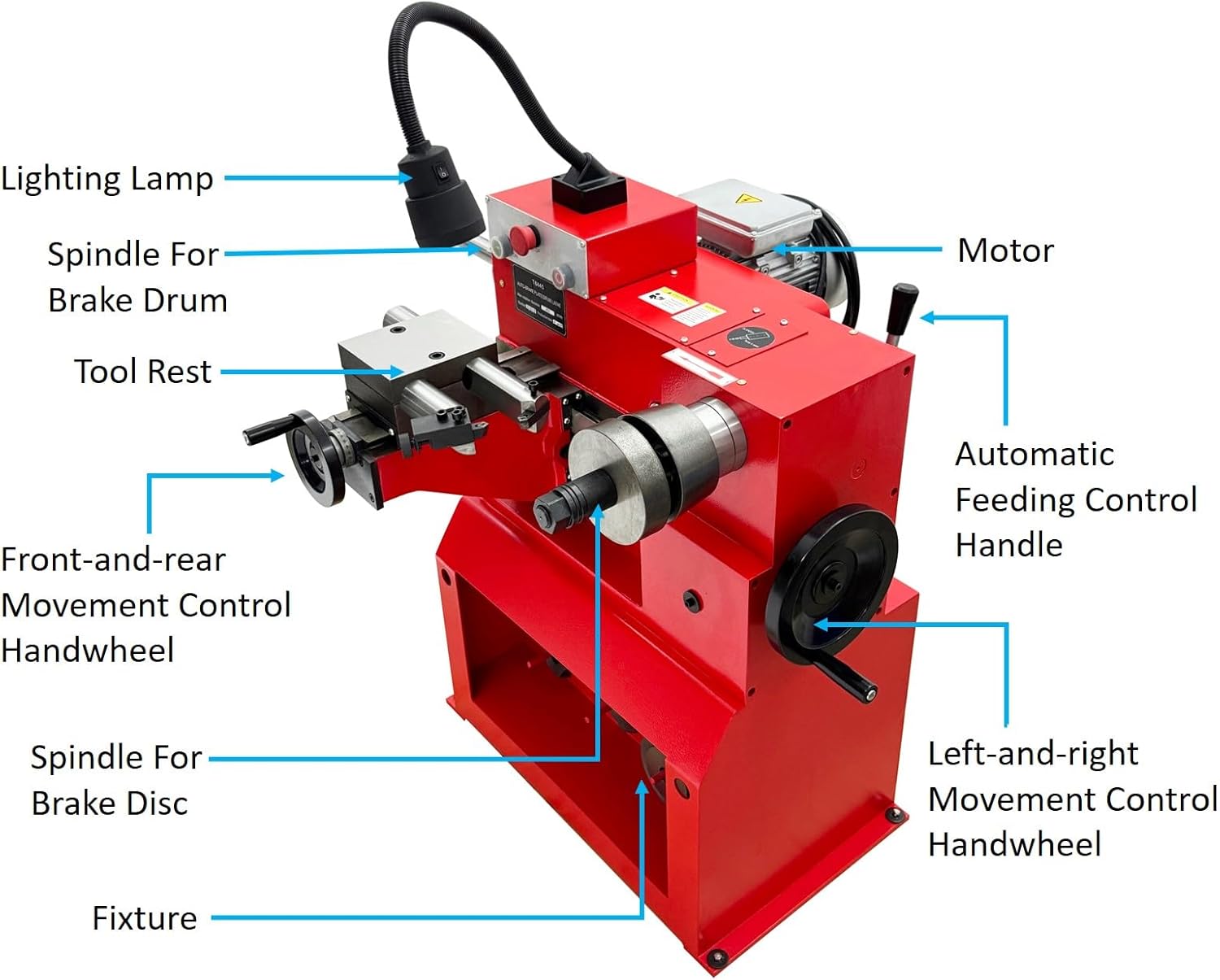

• Excellent Performance: High quality motors provide stable and efficient driving force for lathe operation. The tool holder structure has high strength and high machining accuracy, which can achieve efficient machining of brake discs and brake drums, and control automatic feeding.

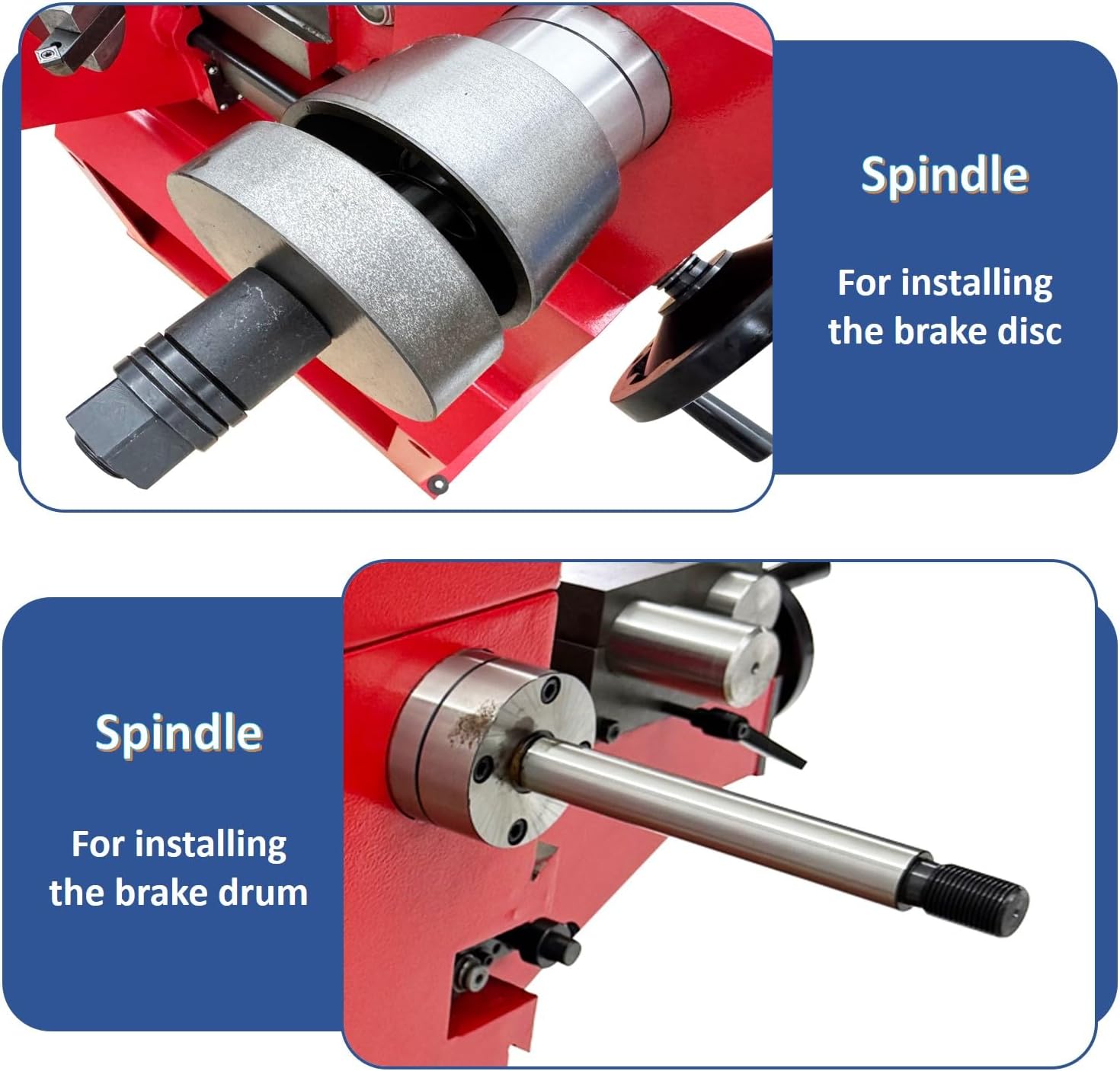

• Efficiency: Two spindles are used to install brake drums and brake discs accordingly, thus meeting the different processing requirements of brake drums and brake discs, effectively improving processing efficiency and quality. The knife holder can be controlled to move in the front to back and left to right directions through different handwheels.

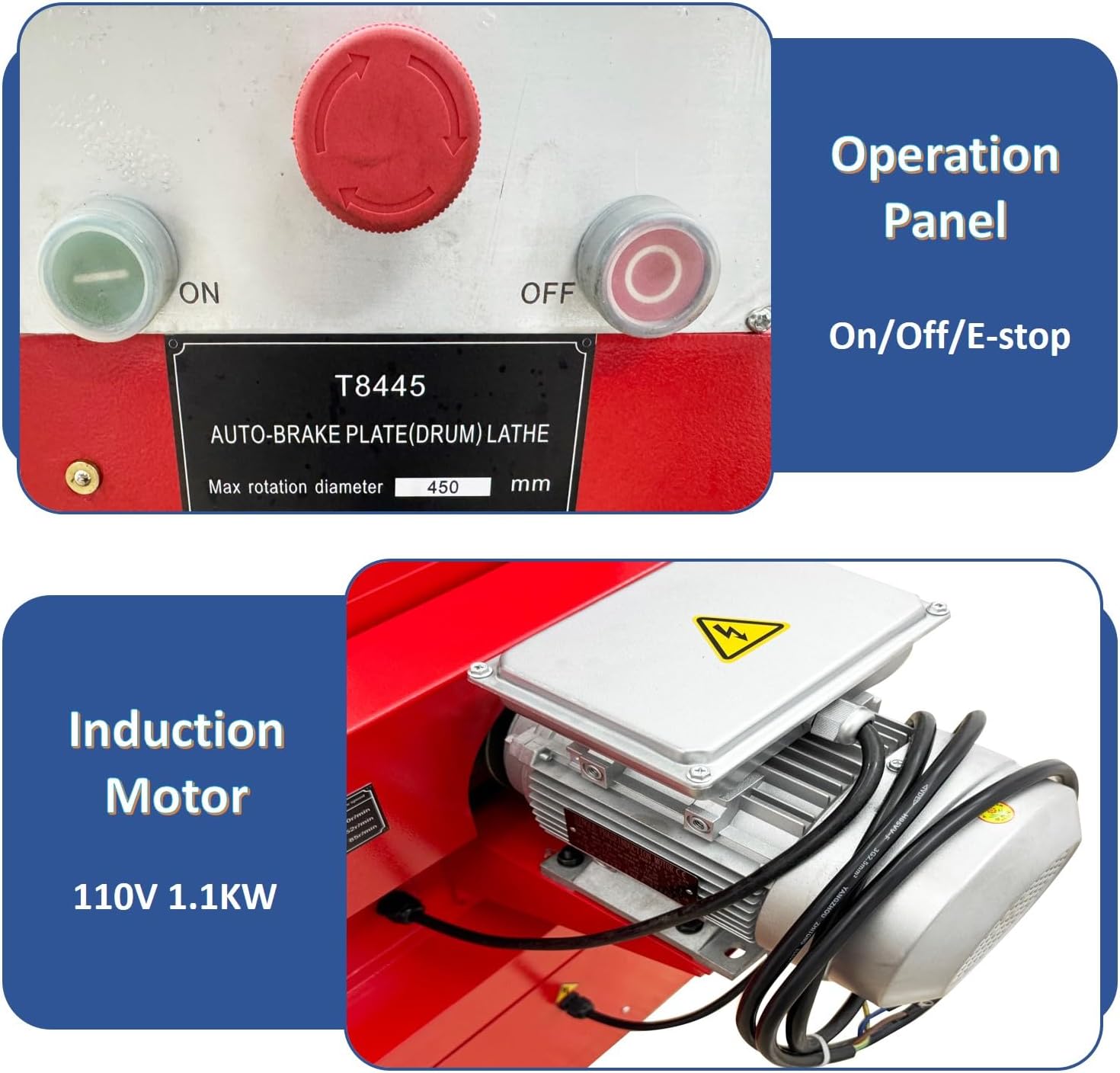

• Safe and Reliable: The ON and OFF switches are arranged separately and controlled independently, making it easy for users to operate. In emergency situations, the user presses the emergency stop switch to stop the lathe, quickly ensuring the safety of both the machine and the operator.
• Wide Application: Brake Drum/Disc Lathe is suitable for repairing brake discs and brake drums of small and medium-sized vehicles, and can achieve bi-directional automatic cutting and provide mechanical limitations.
