Uniweld UDFT Electric/Manual R-410A Ratchet + Clutch Flaring Tool

Uniweld’s UDFT Deluxe Flaring Tool is specifically designed to meet R-410A flaring specifications and all 45° flares for tubing, 1/8"-3/4" O.D. Tubing. The internal break away clutch that disengages when flare is completed prevents over flaring and crushing the copper tubing. The 3/4″-12 point reversible ratchet wrench included reduces the amount of effort required to manually flare in a confined work space. The 3/8″ square drive can be used with a cordless electric drill for faster flaring. Features an eccentric off center cone that spins on an axis and rolls out a perfectly uniform 45° flare with a burnished flare surface. Mini Split A/C units are becoming increasingly popular and require flare connections on each end of the copper line set to connect the evaporator and condenser. Since R-410A is a much higher-pressure refrigerant, Mini Split manufacturers established R-410A flaring specifications that require a larger diameter, deeper flare for more surface area to seal against the male flare fitting and produce a stronger connection. Uniweld’s Deluxe Flaring Tool features a built-in tube stop height gauge that makes a perfect R-410A flare without the guess work. Specifically designed to meet R-410A flaring specifications and can also be used on all 45° flares for Soft Copper, Brass and Aluminum Tubing.

• Specifically designed to meet R-410A flaring specifications and all 45° flares.

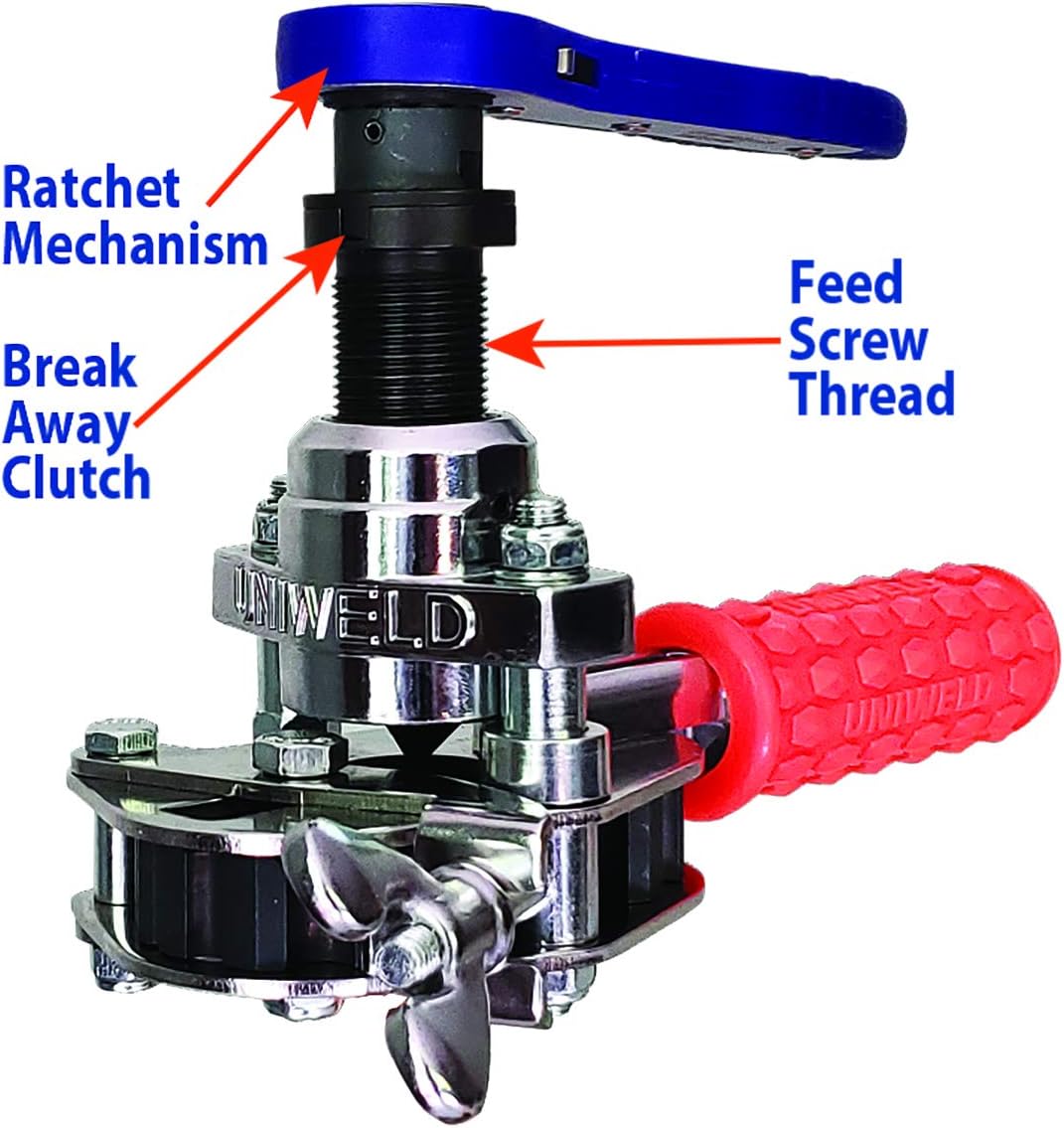

• Internal break away clutch that disengages when flare is completed, prevents over flaring and crushing the copper tubing.
• Automatic tube stop height gauge for a perfect R-410A flare every time!
• 3/4" -12 point reversible ratchet wrench included reduces the amount of effort required to manually flare in a confined work space.
• 3/8" square drive can be used with a cordless electric drill for faster flaring. Cordless drill and socket adapter not included.
• Eccentric off center cone that spins on an axis and rolls out a perfectly uniform 45° flare with a burnished flare surface.

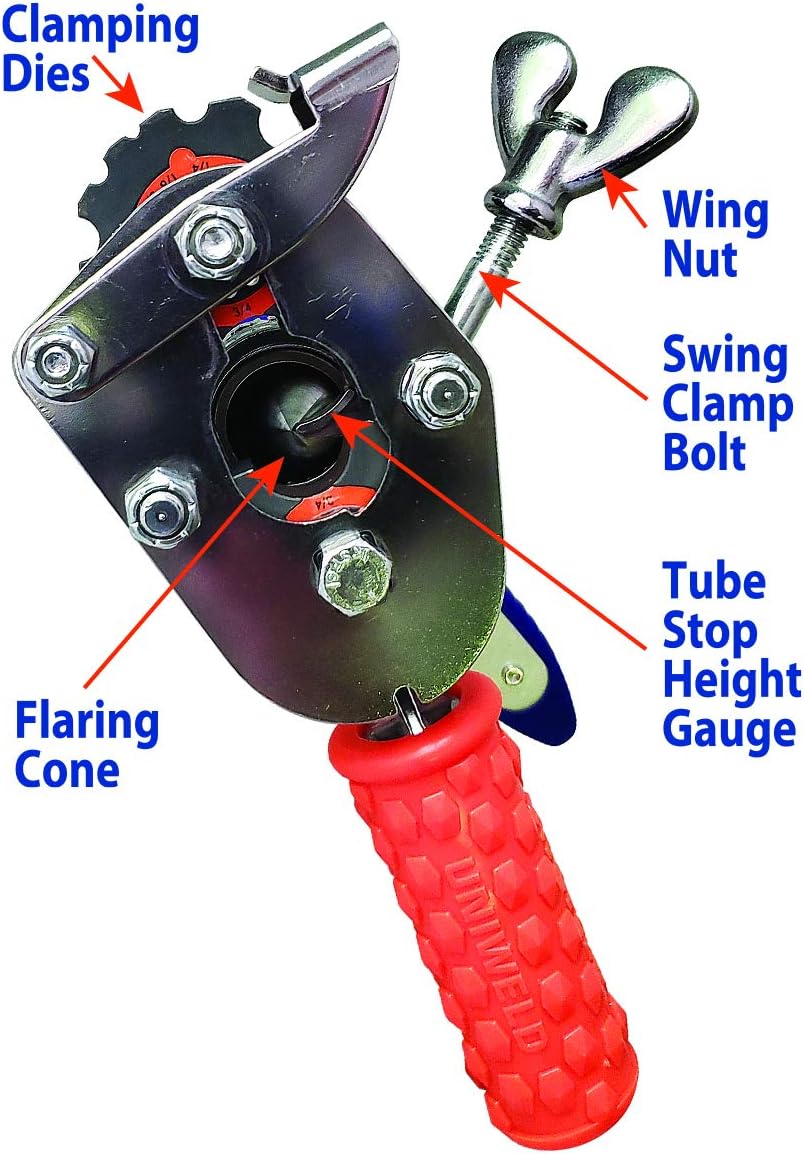

• Self-Centering Clamping Dies for 8 Tube Sizes: 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 inch O.D.
• U.S. and International Patents Pending
