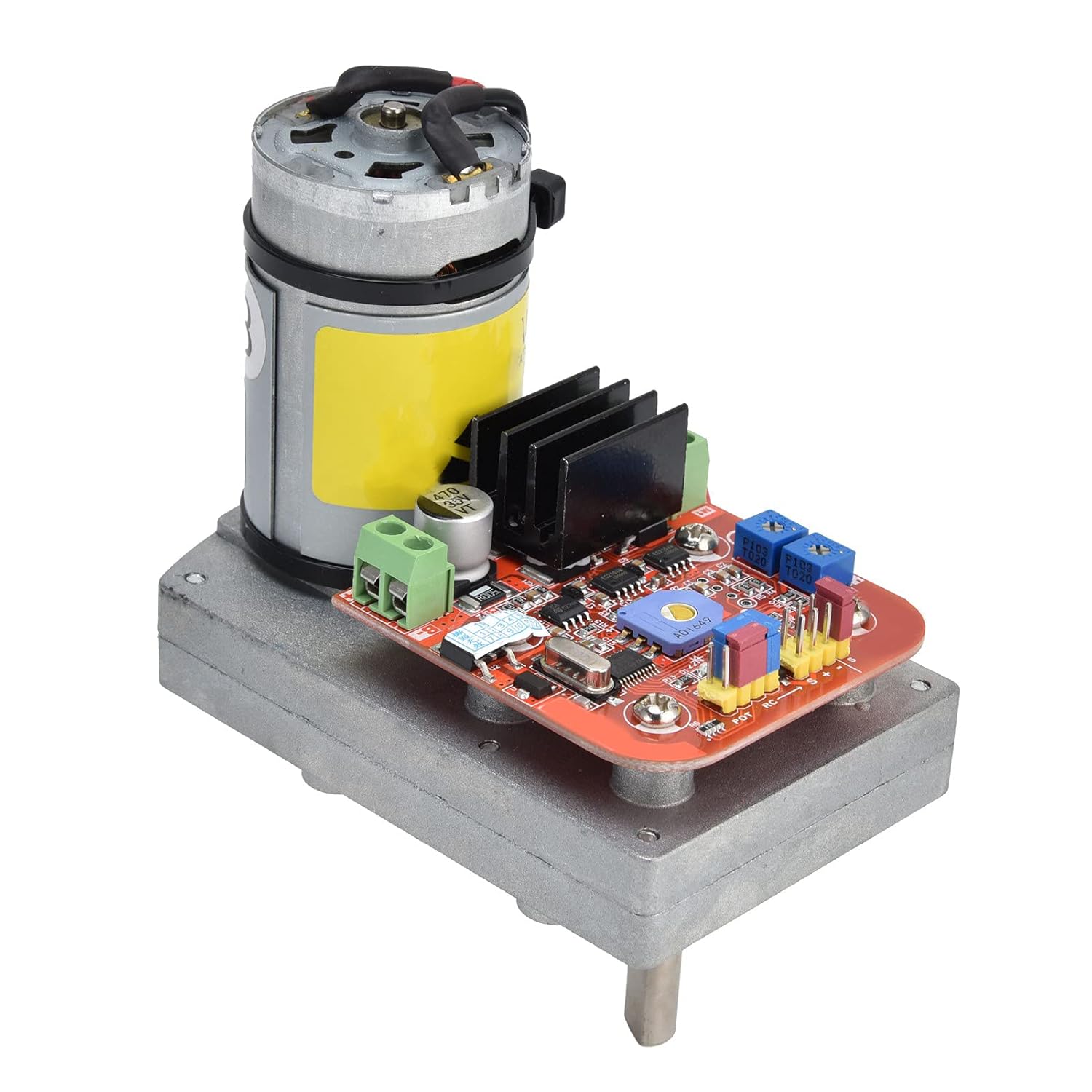

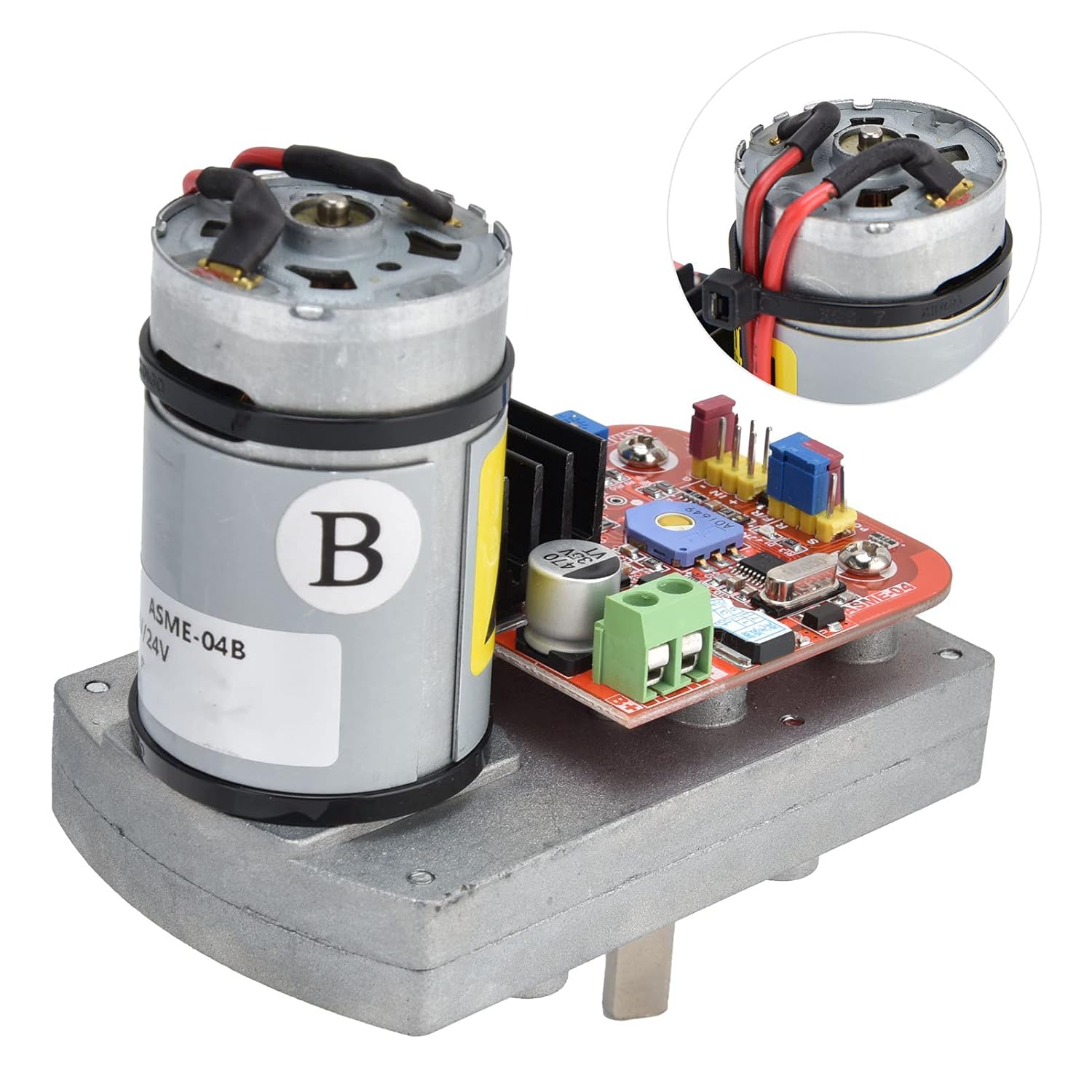

Robot Servo Motor, Aluminum Alloy Super Torsion Digital Steering Metal Gears Mechanical Equipment ASME‑04B for Remote Systems,11V-30V/DC
4.7 (20 items)
Limited Time Sale$35.07 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219482104 | Release Date | 2026/05/03 | List Price | $23.38 | Model Number | 219482104 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Type: Robotic Servo Motor Maximum Torsion: 380kg.cm (24V) (Actual Measurement, Not Theoretically Calculated Value) 3648N.cm(24V) (Actual Measurement, Not Theoretically Calculated Value) 190kg.cm(12V) (Actual Measurement, Not Theoretical Calculation Value) 1824N.cm(12V) (Actual Measurement, Not Theoretically Calculated Value) Rotation Angle: 300°Maxium Input Mode: Pulse (Remote Control, Multi-Channel Steering Gear Controller, Single-Chip Microcomputer) or Analog Voltage (Potentiometer) Control", "MCU Programming", Etc.; Voltage Input Range: 0V to +5V Control Accuracy: 0.32° Rated Voltage: 12V~24V/DC (11V/Minium~30V/Maxium, Limit Voltage) No-Load Current: 500mA (Current Limit: 5A, Recommended to Use A Switching Power Supply or Battery Greater than 5A) Limit Angle: ±150° or 0°~300°(Maxium) The Steering Gear Has Electronic Limit Adjustment Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum Weight: Approx. 550g / 19.4oz Dimension Size: Approx. 95 x 60 x 110mm / 3.7 x 2.3 x 4.3in Limit Voltage: 11V-30V/DC(Maxium) Current Limit Value: 5A±0.2A(Maxium) Working Angle: ±150° or 0°~300°(Maxium) Package List: 1 x Robotic Arm Servo1 x Connection Line
- Servo is perfectly compatible with remote systems such as Futaba, JR, Hitec, etc.Robot servo can be widely used in robots, robotic arms, production lines, camera pan‑tilt control robots.
- Metal gears are conducive to high‑torsion output of high‑power motors, sturdy and long lasting.
- Pulse Signal Input Range: 0.5ms-2.5ms Suitable for All "Multi-Channel Steering Gear Controllers", "1ms-2ms Model Airplane Remote Control", "MCU Programming", Etc.
- Robot servo has high stability and can stably control the steering gear to work within a safe torsion range. Even if the is blown, the steering gear can continue to work.
- The D‑hole anti‑skid key connection on the servo arm plate is compatible with the ASMC ASME servo axle, making the installation very simple.
| Item Weight | 1.38 pounds |
|---|---|
| Manufacturer | Hyuduo |
| Package Dimensions | 4.72 x 3.54 x 2.76 inches |
