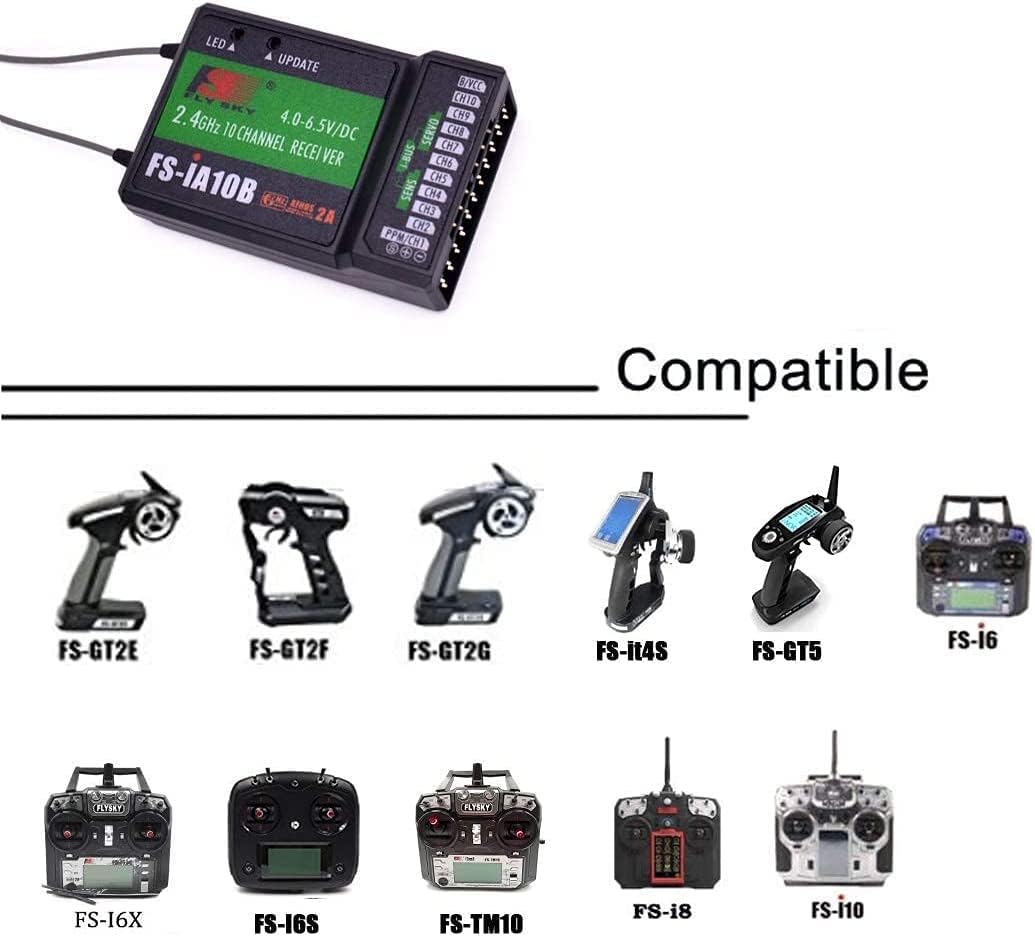

Flysky Fs-ia10b Receiver 2.4G 10Ch Ppm Output Compatible for Flysky Fs-i6 Fs-i6s Fs-i10 Transmitter

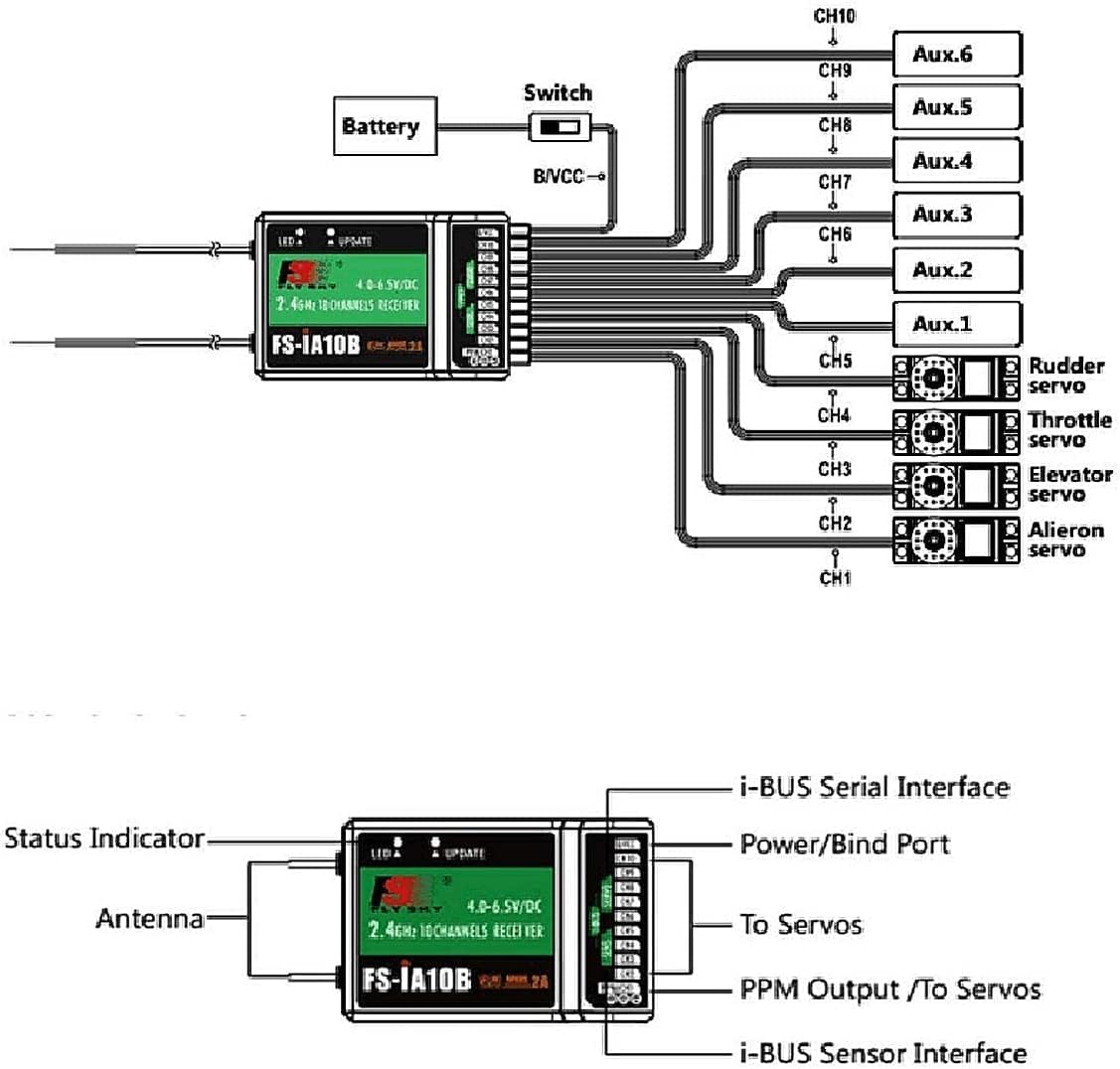

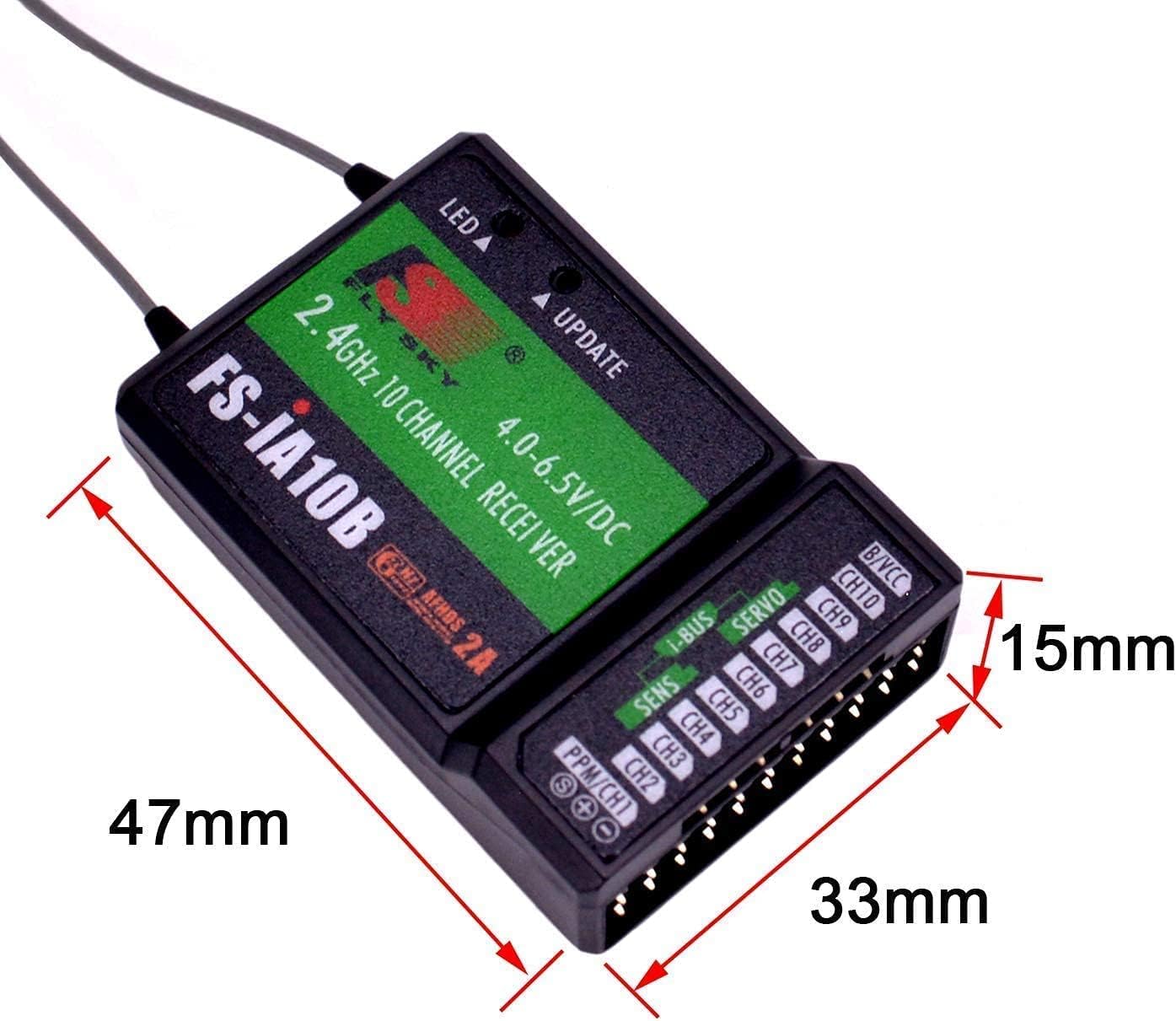

Note:The receiver cannot be directly connected to the battery, you need to connect the battery through an ESC or a step-down device, and ensure that the voltage is between 4.0-6.5V. Specification: Number of Channels: 10 Suitable models: Airplane / glider / helicopter Health Frequency range :2.4-2 .48 GHz Number of newspapers: 160 Transmitting power: not more than 20dBm Receiver sensitivity:-105dBm 2.4G modes: automatic frequency second generation digital system Encoding: GFSK Antenna length: 26 mm * 2(dual antenna) Weight: 19.3g Input power :4.0-6.5V DC Dimensions: 47*33.1*14.7mm Color: Black Certification: CE0678,FCC i-BUS Interface: Yes Data acquisition interface: Yes Package Included: 1x Flysky fs-iA10B 10ch receiver 1x Bind plug Matching(bind) A. Install the battery to 2.4G transmitter and shut it down. B. Insert the matching lines to the channel BIND/CH3 port of the receiver. C. Connect the receiver battery to VCC port of the receiver, on the same time the two LED are flashing and this means the receiver are going to the matching status. D. Press and hold the button on the transmitter, and then switch on the power supply. E. Observe the LED on the receiver, if find that the LED is not flash anymore and that means successful Matched. (This process about 5s) F. Release the match button on the transmitter, take out the match line. G. Install the server and then test. H. If the tests fail, please repeat the action above. G. If the tests success, then insert the power supply port into VCC, match complete. (The above ways of match is only suitable for FLYSKY 2.4G products)

• ★ Flysky FS-IA10B 2.4G 4CH Receiver
• ★Suitable models: Airplane / glider / helicopter Health,easy install and use.
• ★2.4G modes: automatic frequency second generation digital system.
• ★Original receiver
• ★How to bind with transmitter: https://www.youtube.com/watch?v=Ddb4rDuisSk
