FT5330M 35KG RC Digtal Servo 180 Degree Waterproof Full Metal Gear High Torque Servos 25T Servo Arm for Traxxs X4 1/8 1/10 Rc Car (FT5330M 180°)

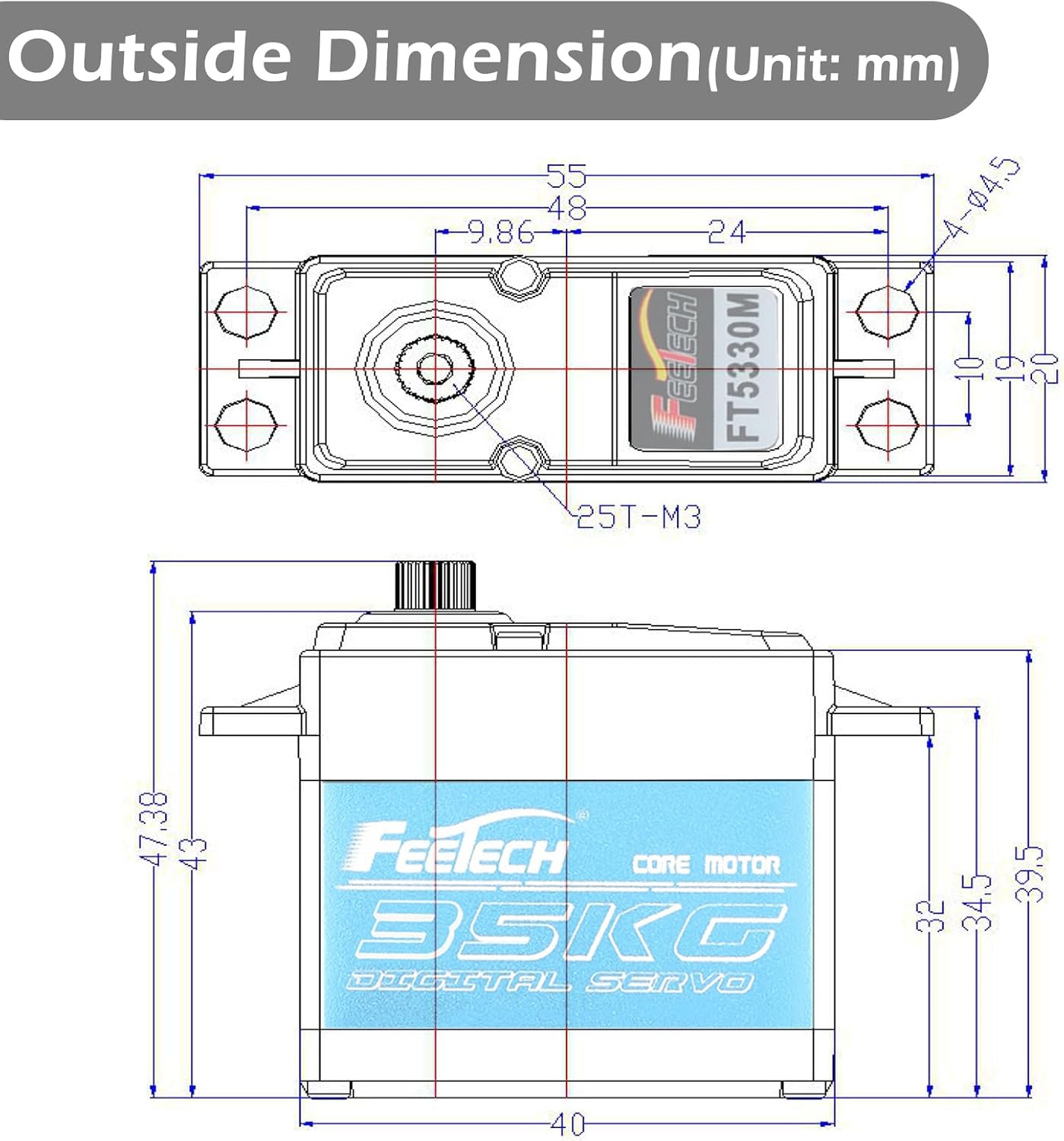

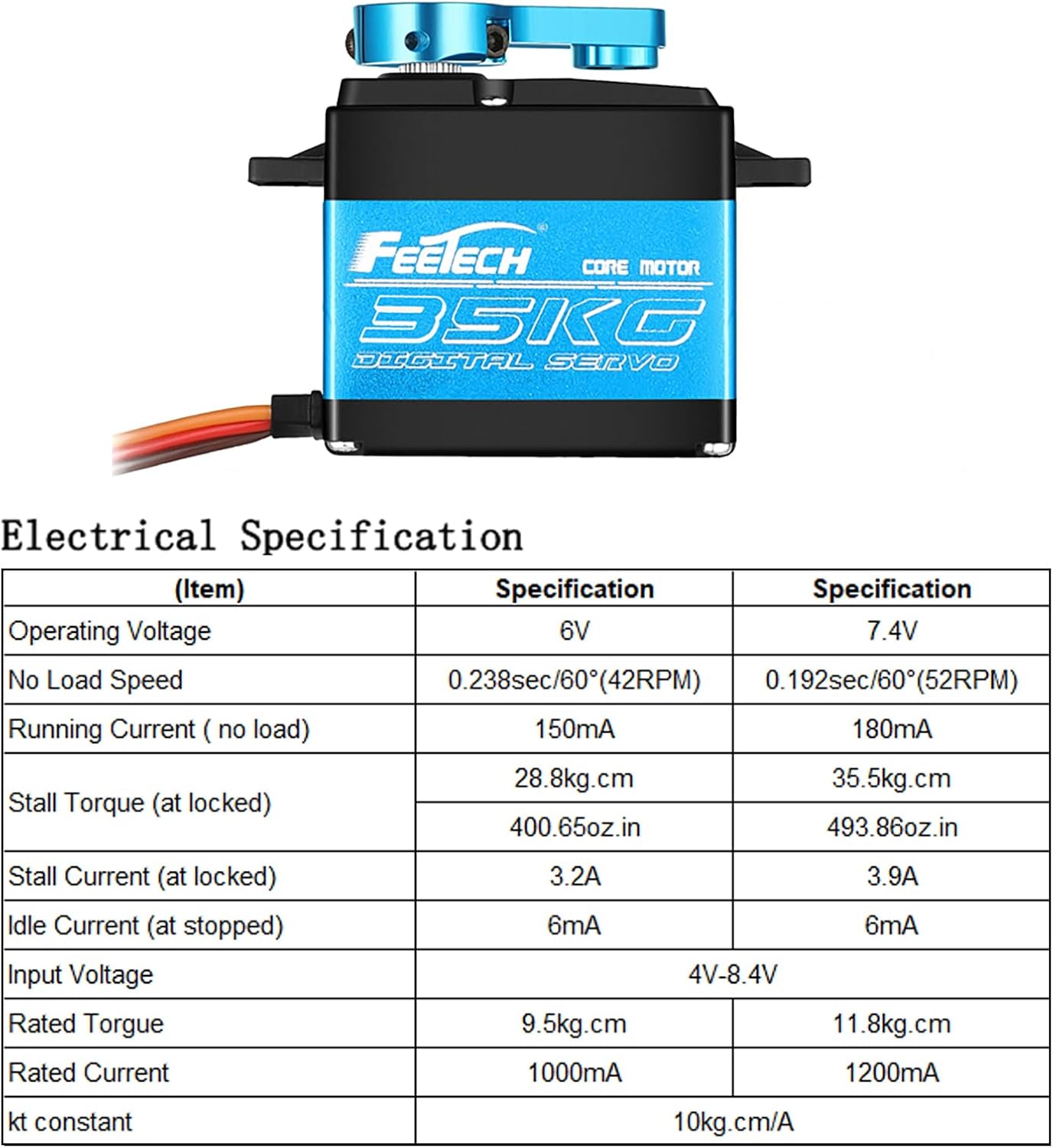

Electrical Specification No Load Speed: 0.238sec/60°(42PPM) @6V / 0.192sec/60°(52RPM) @7. 4V Runnine Current ( no load): 1 50mA @6V / 180mA @7. 4V Stall Torque (at locked): 28.8kg. cm 400. 65oz. in @6V / 35. 5kg. cm 493.86oz. in @7. 4V Stall Current (at locked): 3.2A @6V / 3.9A @7. 4V Idle Current (at stopped): 6mA @6V / 6mA @7. 4V Rated Torgue: 9.5kg. cm . @6V / 11.8kg. cm @7. 4V Rated Current: 1000mA @6V / 1200mA @7. 4V Input Vol tage : 4V-8.4V KT: 10kg. cm/A Mechanical Specification: Operating Temperature Range -20°C~60°C Size: 55X20X43mm Operating Travel: 180°(at 500→2500μsec) Neutral Position: 1500 μsec Pulse Width Range: 500→2500 μsec Waterproof performance: IP54 Limit Angle: No limit Case material: PA+Aluminum Gear material: Steel Bearing type: Ball bearings Angle sensor: Carbon-Film Potentiometer Life:1000000Cycles Min Connector and Cable: JR Material: PVC Length: 30cm Horn Type: 25T/5.9mm Gear Ratio: 1/356 Back Lash: ≦0.5 degree Rocker phantom: 0 degree Rocker screw: M3*6 Motor: Core Motor Pin Definition: Yellow-Signal, Red-Vcc, Brown-GND Package Includes: 1 X FT5330M 35KG Digital Servo 1 X 25T Arm 1 X Servo Accessories

• High quality: FT5330M is equipped with sturdy PA aluminum intermediate shell, strong steel metal gears and hard iron axle, which makes it more stable and longer-lasting
• Rich application scenarios: suitable for 1/8 and 1/10 scale trucks, off-road vehicles, RC robotic arms and so on
• Protection mechanism: When the output torque exceeds the overload torque for 8S or the temperature exceeds 70℃, the steering gear will stop output torque automatically. The overload torque can be modified
• Parameters: Rotation angle of 180 degrees (500~2500μsec )
• Please feel free to ask us any questions and we will do our best to help you solve the problem
