VGEBY RC Motor 540 Brushed Motor 320A ESC Combo Set for SCX10 / TRX4 D90 / / GEN8 RC Crawler

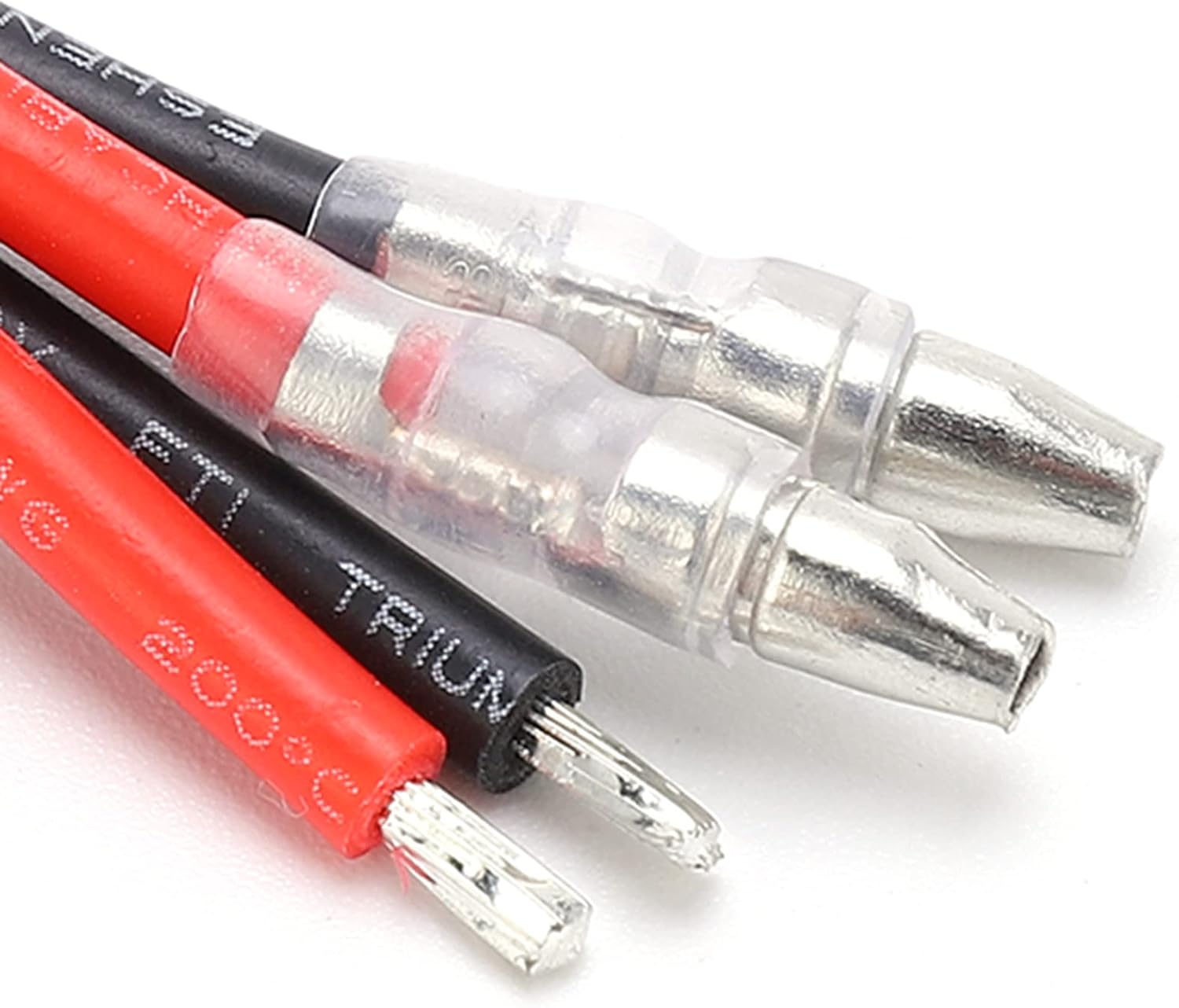

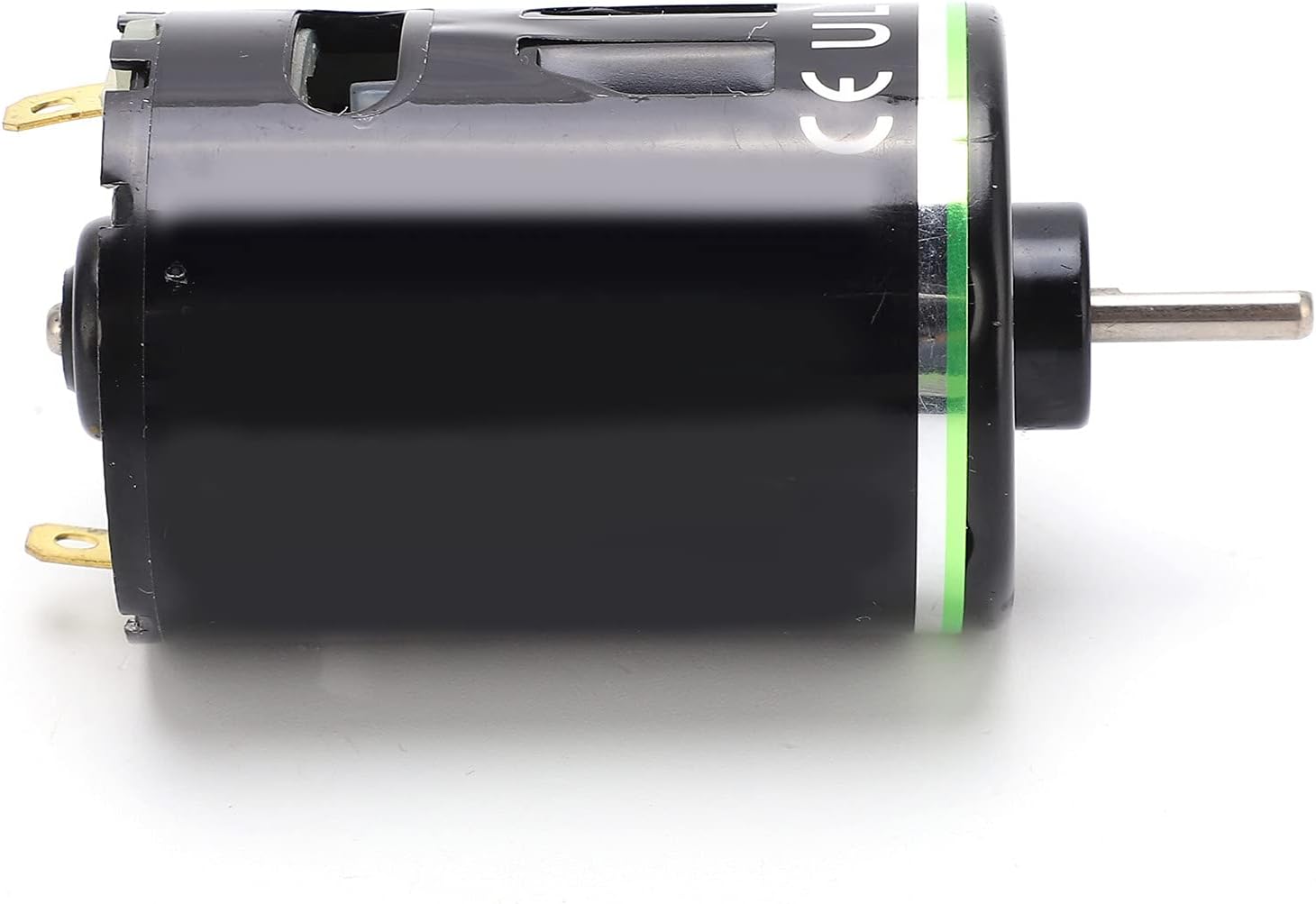

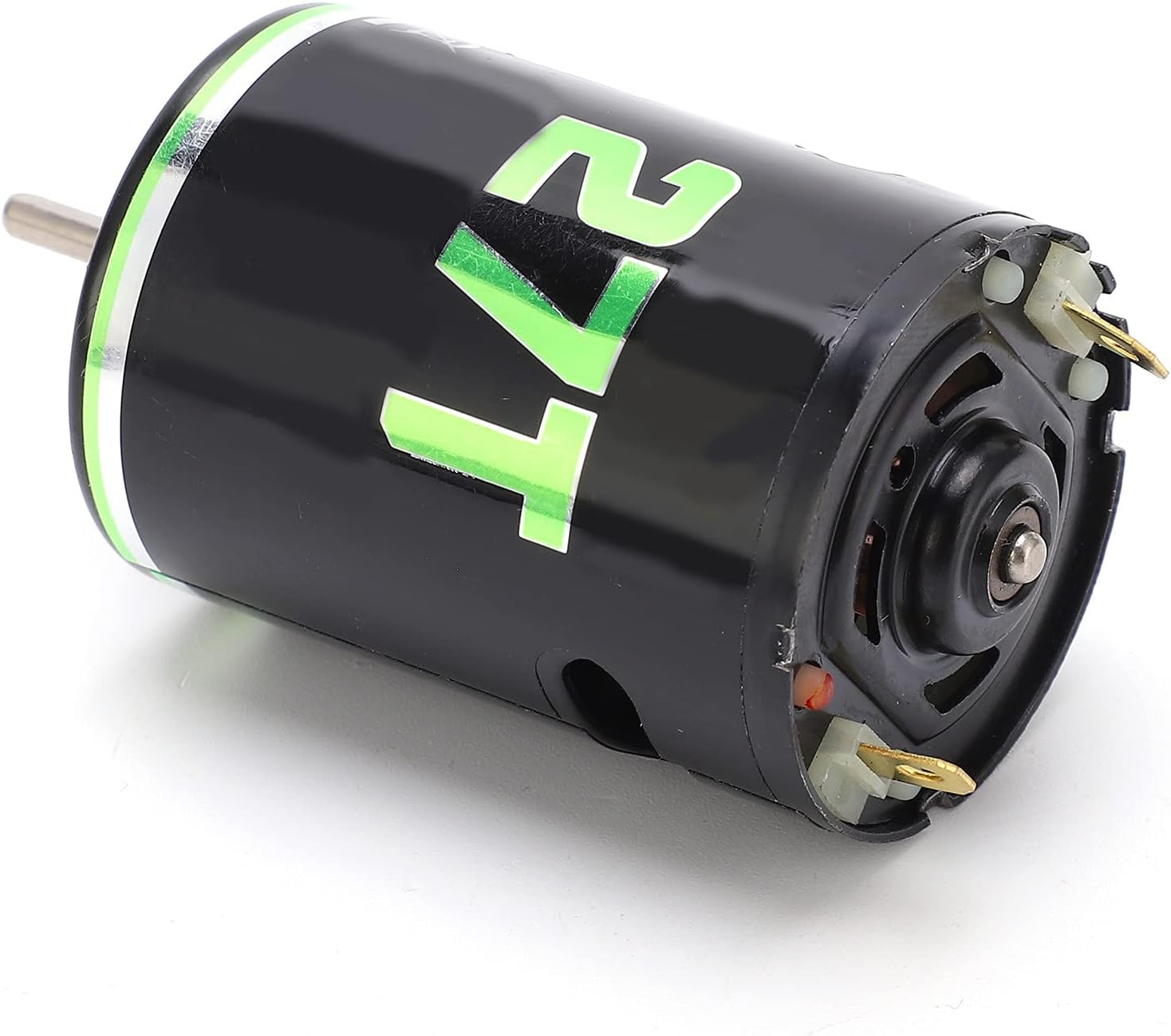

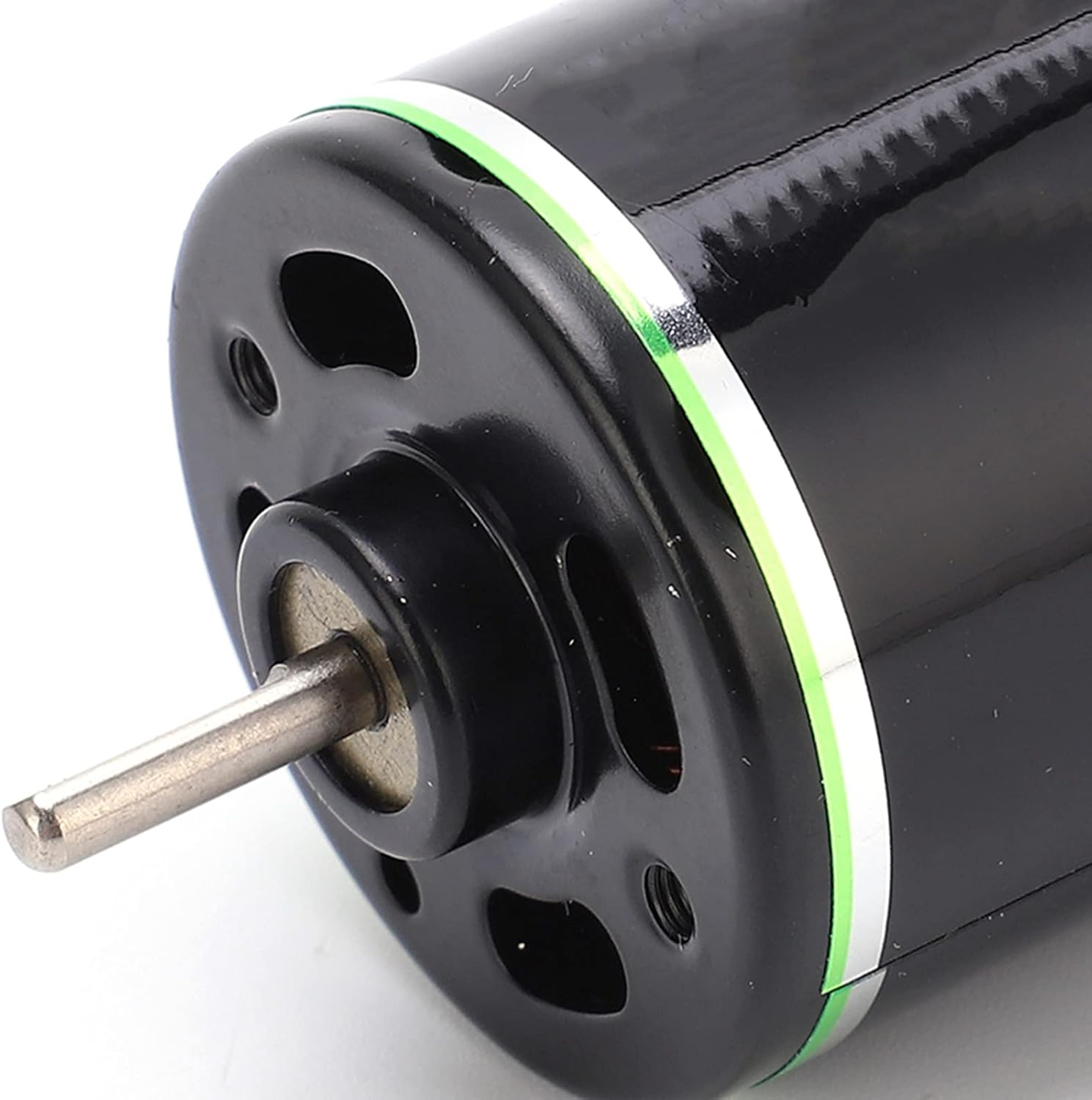

How to Use: Solder the red wire to the positive electrode and the black wire to the negative electrode. Connect the motor to the ESC, install it on the RC car and use it after powering on. Specification: Item Type: 540 Brushed Motor 320A ESC Combo Material: Iron + Plastic + Copper Product Color: As Pictures Shown Product Weight: Approx. 219g / 7.7oz Application: Fit for SCX10 / TRX4 D90 / / GEN8 RC Crawler / Trucks / Drift Car Motor: Length: Approx. 50mm / 2.0in Diameter: Approx. 36mm / 1.4in Shaft Length: Approx. 12mm / 0.5in Shaft Diameter: Approx. 3.175mm / 0.1in Operating Voltage: 7.2-7.4V Maximum Voltage: 12V ESC: Direct Current: 60A Explosion Current: 320A Power Supply: 2-3 S Lithium Battery, Ni-mh Battery 5-9 S BEC?5 V / 2A ESC Size: Approx. 43x29x27mm / 1.7x1.1x1.1in (no cable) No-Load Current: 1.4A Continuous Output Current: 320A (forward), 160A (back), 270A (brake) Voltage No-Load Speed 7.2 V: 35T 12000 rpm / 45T 10000 rpm / 55T 8000 rpm Package List: 1 x 540 Brushed Motor 1 x 320A Brushed ESC 2 x Wiring Note: 1. Please allow 1?3mm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

• LOW FRICTION AND LOW NOISE: High‑purity copper windings and sealed bearings, it is and has low friction and low noise
• HIGH FINISH AND GOOD STABILITY: The rotor is precisely balanced, with high finish, good stability, excellent performance, and easy to disassemble and replace
• GOOD HEAT DISSIPATION AND HIGH POWER: 540 motor has high twisting force, two‑way bearings, strong magnetic force, low heat generation and high power
• COMPATIBLE WITH: Excellent twisting force and long life, direct welding wiring , providing flexible welding options. It is fit for Axial SCX10 / D90 / / GEN8 RC Crawler / Trucks / Drift Cars
• : Please confirm size and compatibility before order. We take full responsibility for our product. Any product quality problem or service issue, please feel to email us for help. We will reply you within 24 hours
