40A 2–4S RC Brushless Motor ESC for RC Plane & Airplane with 5V/6V 4A SBEC

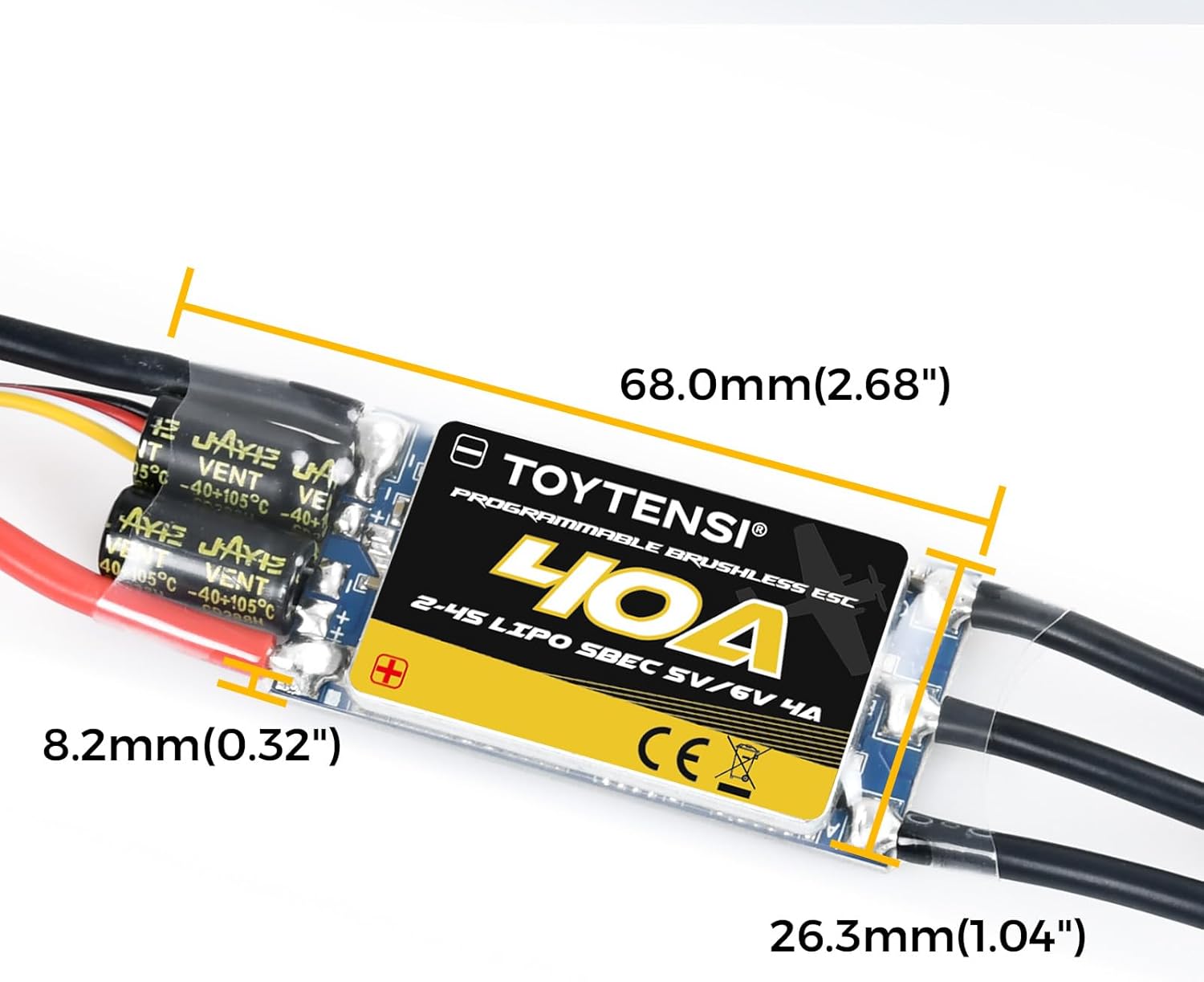

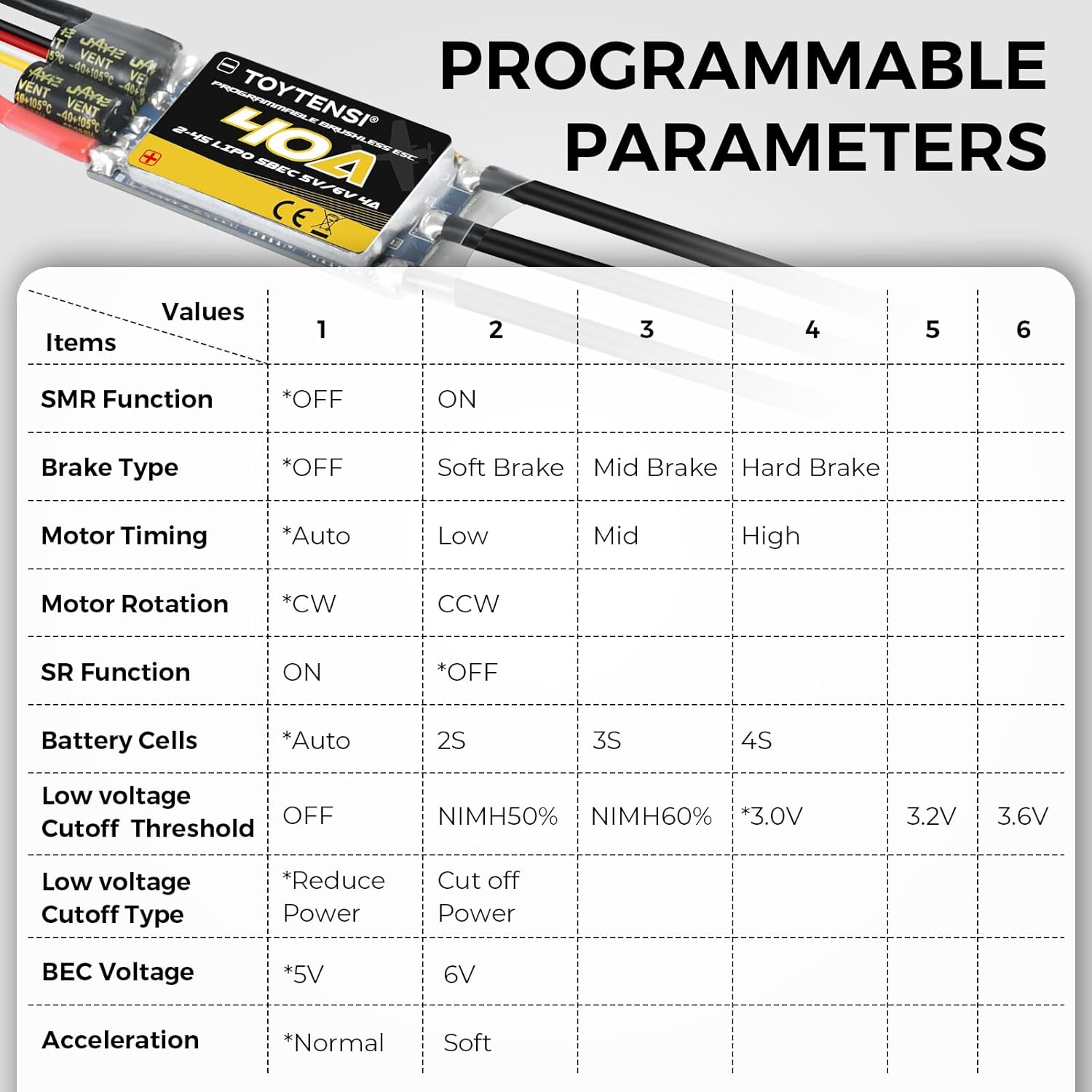

𝐈𝐍𝐓𝐑𝐎𝐃𝐔𝐂𝐓𝐈𝐎𝐍: Designed specifically for RC fixed-wing airplanes, TOYTENSI 20A-100A brushless speed controllers possess the high reliability and quality you have come to expect throughout our entire product line. These must-have brushless speed controllers provide smooth and accurate throttle linearity for all your flights. 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒: ●Super smooth and accurate throttle linearity ●Selectable high voltage switching BEC (Battery Eliminator Circuit) ●Support for most motors, including high RPM motors ●Utilizes new MOSFET technology for low heat and high reliability ●Power on protection, over-heat protection, low-voltage protection and lost-signal protection 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒: ●𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗡𝗮𝗺𝗲: TOYTENSI 40A 2-4S SBEC ESC ●𝗖𝗼𝗻𝘁./𝗣𝗲𝗮𝗸 𝗖𝘂𝗿𝗿𝗲𝗻𝘁: 40A/60A ●𝗜𝗻𝗽𝘂𝘁 𝗩𝗼𝗹𝘁𝗮𝗴𝗲: 2-4S LiPo ●𝗕𝗘𝗖 𝗢𝘂𝘁𝗽𝘂𝘁: 5V/6V 4A ●𝗜𝗻𝗽𝘂𝘁 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿𝘀: XT60 (Male) ●𝗢𝘂𝘁𝗽𝘂𝘁 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿𝘀: 3.5mm Gold Connectors (Female) ●𝗟𝗲𝗻𝗴𝘁𝗵: 68mm/2.68in ●𝗪𝗶𝗱𝘁𝗵: 26.3mm/1.04in ●𝗛𝗲𝗶𝗴𝗵𝘁: 8.2mm/0.32in ●𝗪𝗲𝗶𝗴𝗵𝘁: 44.2g 𝐒𝐄𝐓𝐓𝐈𝐍𝐆𝐒: ●𝗦𝗠𝗥 (𝗦𝘄𝗶𝘁𝗰𝗵 𝗠𝗼𝘁𝗼𝗿 𝗥𝗼𝘁𝗮𝘁𝗶𝗼𝗻) 𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻: *𝗢𝗙𝗙/ON ●𝗕𝗿𝗮𝗸𝗲 𝗧𝘆𝗽𝗲: *𝗢𝗙𝗙/Soft Brake/Mid Brake/Hard Brake ●𝗠𝗼𝘁𝗼𝗿 𝗧𝗶𝗺𝗶𝗻𝗴: *𝗔𝘂𝘁𝗼/Low/Mid/High ●𝗠𝗼𝘁𝗼𝗿 𝗥𝗼𝘁𝗮𝘁𝗶𝗼𝗻: *𝗖𝗪/CCW ●𝗦𝗥 (𝗦𝘆𝗻𝗰𝗵𝗿𝗼𝗻𝗼𝘂𝘀 𝗥𝗲𝗰𝘁𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻) 𝗙𝘂𝗻𝗰𝘁𝗶𝗼𝗻: ON/*𝗢𝗙𝗙 ●𝗕𝗮𝘁𝘁𝗲𝗿𝘆 𝗖𝗲𝗹𝗹𝘀: *𝗔𝘂𝘁𝗼/2S/3S/4S ●𝗟𝗼𝘄 𝘃𝗼𝗹𝘁𝗮𝗴𝗲 𝗖𝘂𝘁𝗼𝗳𝗳 𝗧𝗵𝗿𝗲𝘀𝗵𝗼𝗹𝗱: OFF/NIMH50%/NIMH60%/*𝟯.𝟬𝗩/3.2V/3.6V ●𝗟𝗼𝘄 𝘃𝗼𝗹𝘁𝗮𝗴𝗲 𝗖𝘂𝘁𝗼𝗳𝗳 𝗧𝘆𝗽𝗲: *𝗥𝗲𝗱𝘂𝗰𝗲 𝗣𝗼𝘄𝗲𝗿/Cut off Power ●𝗕𝗘𝗖 𝗩𝗼𝗹𝘁𝗮𝗴𝗲: *𝟱𝗩/6V ●𝗔𝗰𝗰𝗲𝗹𝗲𝗿𝗮𝘁𝗶𝗼𝗻: *𝗡𝗼𝗿𝗺𝗮𝗹/Soft The options marked with “*” are the factory default settings.

• High-Performance 32-Bit Processor: Built with a fast-response 32-bit microprocessor to deliver smooth and accurate throttle control, compatible with most sensorless brushless motors for RC airplanes
• High-Power Switching SBEC: Integrated switch-mode BEC provides selectable 5V or 6V output up to 4A, supplying stable power for receivers and multiple servos without an external BEC
• Pre-Installed Connectors, No Soldering Required: Comes with pre-installed XT60 battery connector and 3.5mm gold-plated motor connectors, allowing quick and safe installation without soldering
• Comprehensive Protection Features: Includes power-on protection, over-temperature protection, low-voltage cutoff, and signal-loss protection to help safeguard your ESC, motor, and aircraft
• Fully Programmable ESC: Supports programming via transmitter or optional LCD Program Box (sold separately), allowing users to adjust settings for different flying preferences
