QWinOut A2212 1400KV Brushless Outrunner Motor 10T + 30A Speed Controller ESC + 3.5mm Banana Connectors for DIY RC Drone Aircraft KK 4 Axle Copter UFO

100% Brand New ! Brand: QWinOut A2212 1400KV Brushless Motor KV: 1400 Max Efficiency: 80% Max Efficiency Current: 4-10A (>75%) Current Capacity: 12A/60s No Load Current @ 10V: 0.5A No. Of Cells: 2-3 Li-Poly Motor Dimensions: ?27.5 x 30mm Shaft Diameter: ?3.17mm Weight: 47g Including: 1 /4/6 set * 2212 1400KV Brushless Outrunner Motor with Mounts with 3.5mm male banana plug 2-4S 30A Brushless ESC NOTE: We have set up the program, the ESC do not need additional program. Working current: 30A Output: Continuous 25A, Burst 40A up to 10 Secs Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery BEC: 5V 3A Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor) Size: 45mm (L) * 25mm (W) * 11mm (H) Weight: about 25g Features 1.Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected. 2.Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters. 3. Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: reset all the programmable items to their default settings. 4. Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

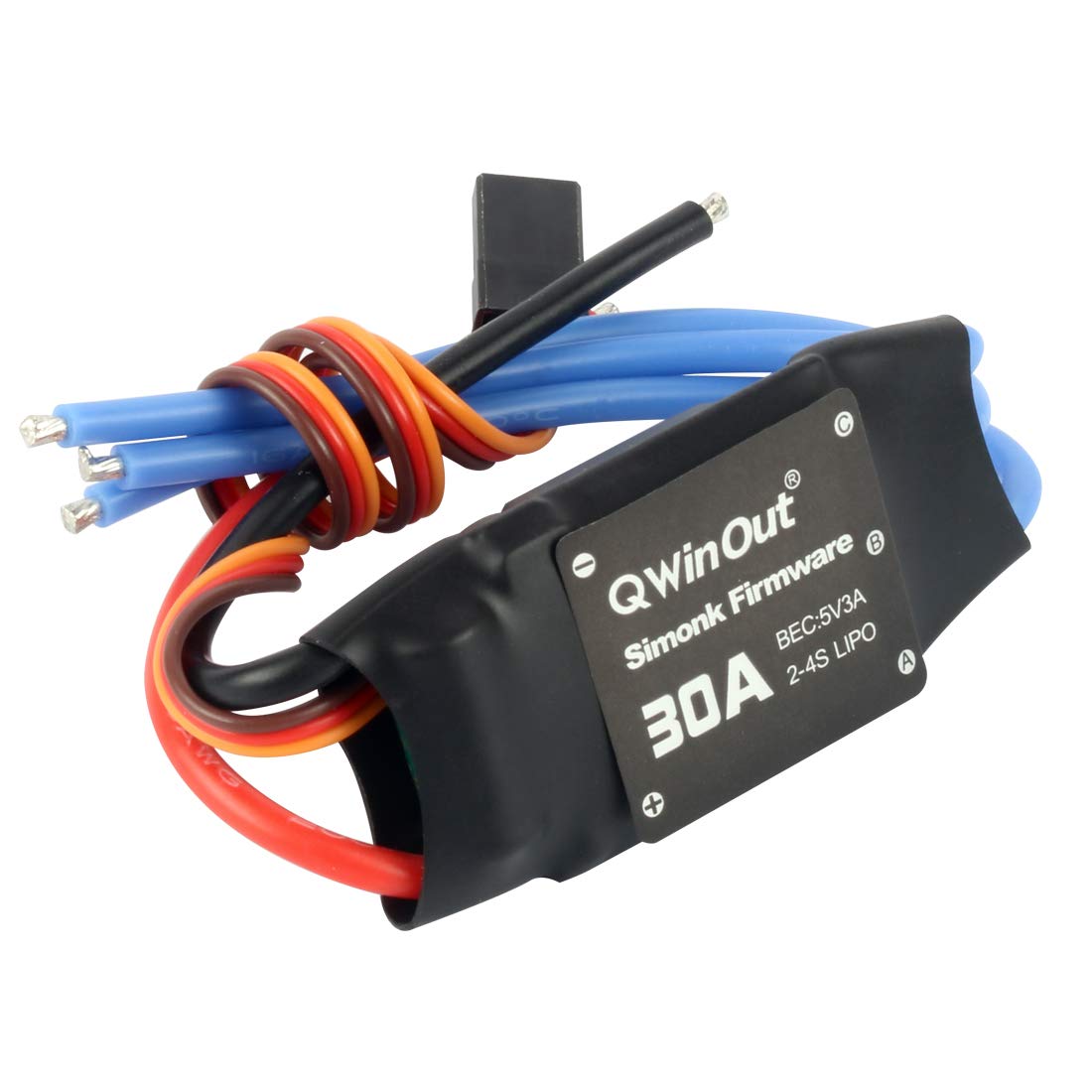

• A2212 1400KV Brushless Outrunner Motor + 2-4S 30A RC Brushless ESC
• Already solded with 3.5mm Male banana connectors, effectively avoid welding problems
• Compatible for: DIY FPV KK MK MWC RC Quadcopter Hexacopter Multi-Rotor Aircraft; four-axis six-axis fixed-wing drone.
• Advantages fo the ESC 1. Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 2. Extreme low resistance PCB is helpful for getting a super current endurance capability. 3. Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
