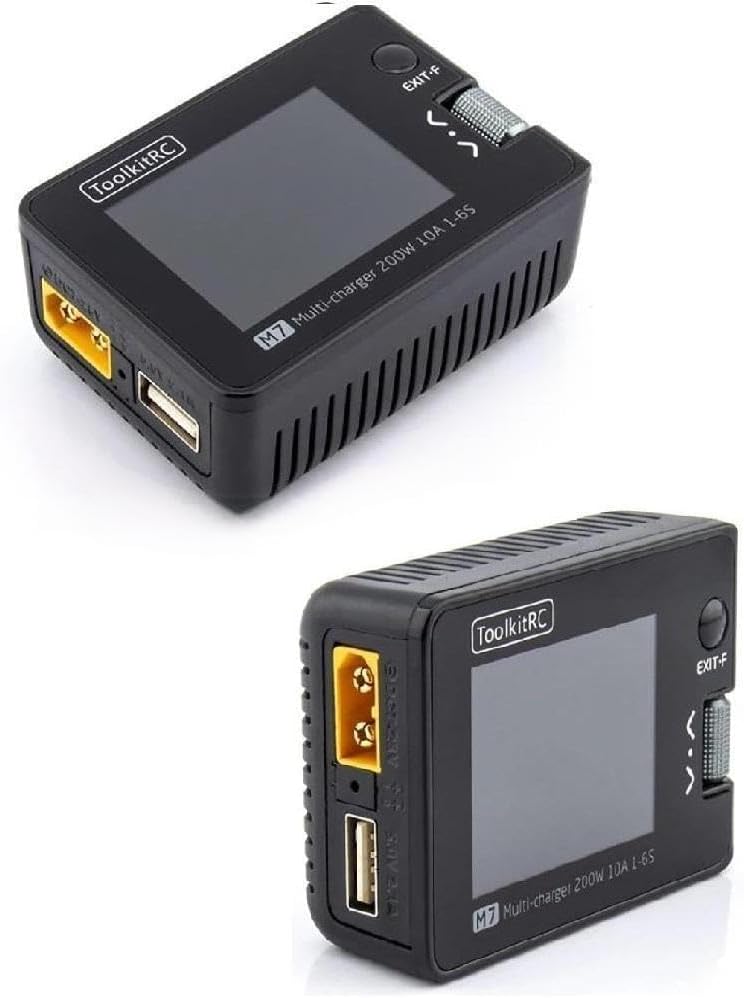

SPARKHOBBY ToolkitRC M7 200W 10A 1-6S Lipo High Power Lithium Battery Multifunctional Balance Charger Discharger 2.0inch LCD for RC Drones (1PC M7 Black)
4.1 (121 items)
Limited Time Sale$23.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219623729 | Release Date | 2026/05/03 | List Price | $15.60 | Model Number | 219623729 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Item: Toolkitrc M7 lithium battery multi-function balance charger Parameters: Size: 73*51*27 mm Weight: 90g LCD: IPS 2.0inch LCD 320*240 Pixel Input voltage: 7.0-28.0V @MAX 12A Type of battery: Lipo LiHV LiFe Lion@1-6 NiMh @1-16S Pb @1-10S Balance current: 400mA @2-6S Charger power: 200W @MAX 10A Discharge power: 200W @MAX 10A Recycle mode 10W@3A Normal mode USB: 2.1A @5.0V or Upgrade Input: PWM: 880-2200us @20-400Hz PPM: 880-2200us*8CH @20-50Hz SBUS: 880-2200us*16CH @20-100Hz Voltage: 1.0-5.0V @1-6S Internal resistance: 1-99mR @1-6S ESC: 200W@10A PWM Output Output: PWM: 500-2500us @20-1000Hz PPM: 880-2200us*8CH @20-50Hz SBUS: 880-2200us*16CH @20-100Hz Power supply: 1.0-28.0V @1.0-10A mode:CC+CV OverCurrent Cutoff time: <5ms Discharge current: Recycle mode Max 10A @200W External mode Max 10A @200W Inter mode Max 3A @10W Lithium battery cut-off voltage can be set (TVC function) Multi-language system, you can upgrade any language you need USB 2.1A@5.0V output, rechargeable mobile devices The device is simulated as a U disk, and the upgrade file is copied to realize the product firmware upgrade Package Included: 1X ToolkitRC M7 Charger
- M7 is a multifunctional tool chain product that integrates functions such as a balanced charger and discharger, an electric display, a signal measuring device, and a signal source.
- Can charge and discharge and balance .management of LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S batteries .Charge current:MAX 10A @MAX200W
- Can measure battery voltage, battery internal resistance, lithium battery balance management .Can measure the signal value of PWM/PPM/SBUS, with an accuracy of 1 microsecond.Can output PWM/PPM/SBUS standard signals with an accuracy of 1 microsecond
- Constant current and constant voltage source output, customizable 1-28V constant voltage, 1-10A constant current
- Can be adapted to mainstream drone batteries, automatically activated and charged
| Brand | SPARKHOBBY |
|---|---|
| Color | 1pc M7 Black |
| Amperage | 10 Amps |
| Item Weight | 150 Grams |
| Manufacturer | ToolkitRC |
| Current Rating | 10 Amps |
| Output Voltage | 28 Volts (DC) |
| Mfr Part Number | Toolkit RC M7 001 |
| Number of Ports | 7 |
