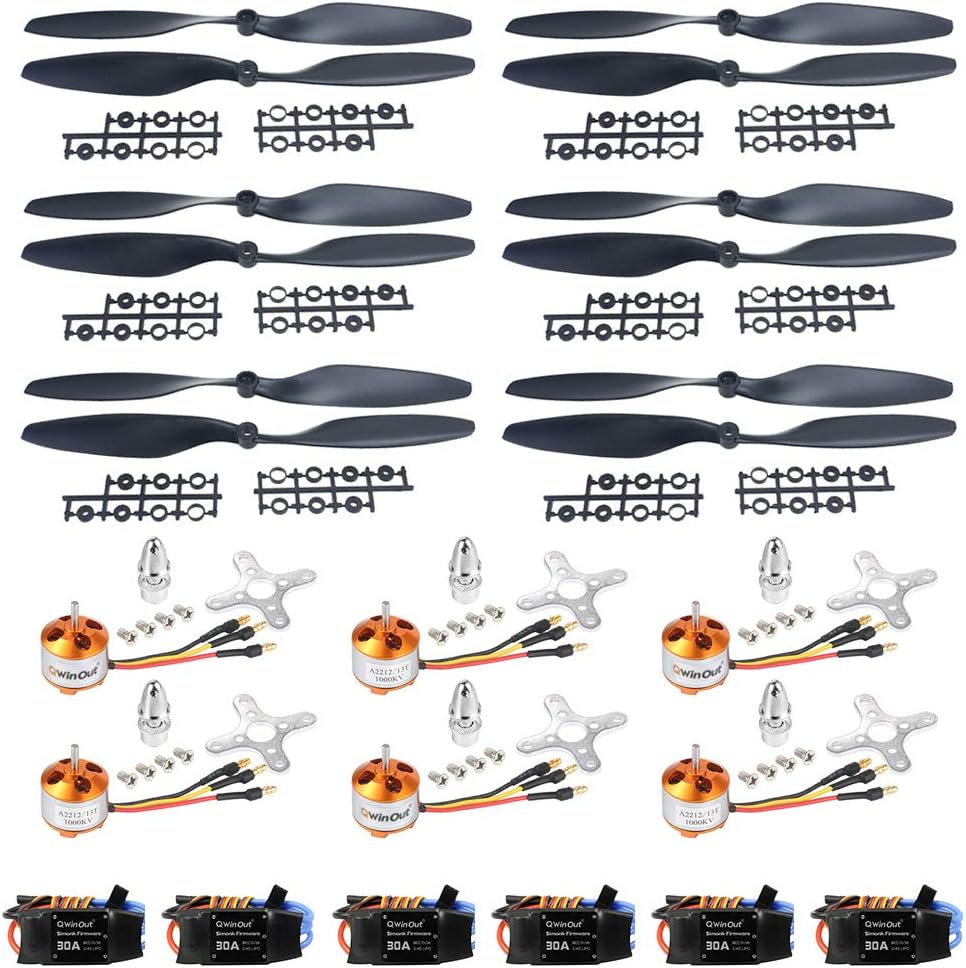

QWinOut A2212 1000KV Outrunner Motor + 30A ESC + 1045 Prop Propeller for F450 F500 F550 DIY Drone Kit (4 Set)

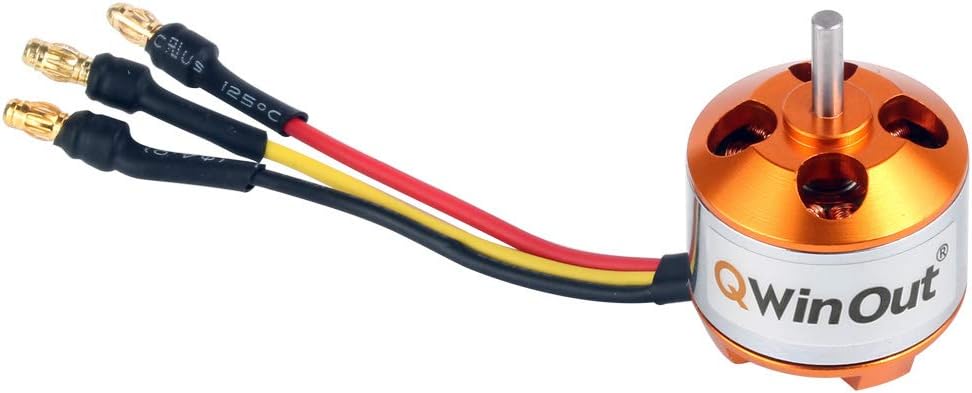

1Pair Plastic 10x4.5" 1045 1045R CW CCW Propeller Props Black for F450 500 F550 4-axle X - axis KK MK FPV Multi-Copter Aircraft UFO RC QuadCopter Drone Diameter: 10 "(25.4 cm) Slope: 4.5 "(11.43 cm) Bore: approximately 3MM 4MM 5MM 6MM 7.8MM (come with the prop shaft washer,you can use for different shaft) 1 Pcs QWinOut A2212 1000KV Brushless Outrunner Motor 13T with 3.5mm Male Banana Bullet for RC DIY Aircraft Multi-Copter Quadcopter Drone Brand: QWinOut KV: 1000 Max Efficiency: 80% Max Efficiency Current: 4-10A (>75%) Current Capacity: 12A/60s No Load Current 10V: 0.5A No. Of Cells: 2-3 Li-Poly Motor Dimensions: ?27.5 x 30mm Shaft Diameter: ?3.17mm Including: 2212 1000KV Brushless Outrunner Motor with Mounts DT-30A Brushless ESC : ATTENTION:This ESC do not have the English instruction. Before producing, the manufacturer have set up the program, the ESC do not need additional program. 1.1 Output: Continuous 30A, Burst 35A up to 10 Secs 1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery 1.3 BEC: 2A / 5V (Linear mode) 1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor) 1.5 Size: 45mm (L) * 24mm (W) * 11mm (H) 1.6 Weight: 22g Each Set Packing list: 1 pcs motor 1 pcs esc 2 pcs props

• NOTE: Motors and ESC was soldered with 3.5mm Female banana connectors, effectively avoid welding problems; 2. We have set up the ESC program, do not need additional program

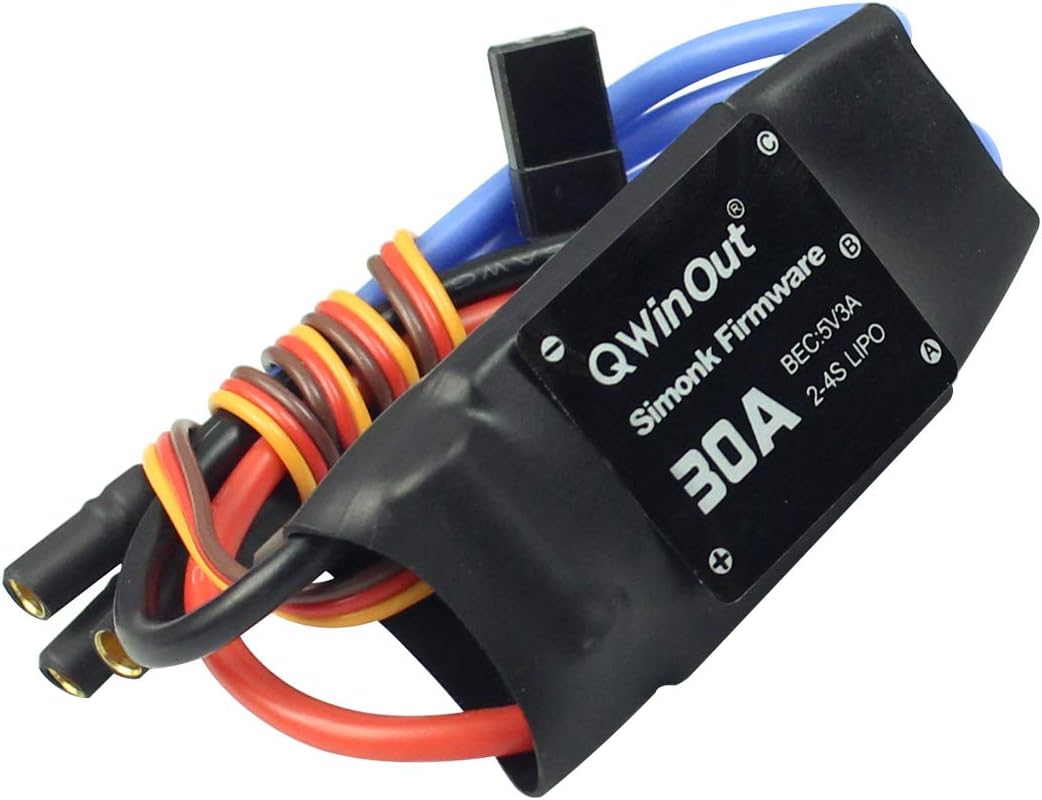

• ESC Features: 2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected. 2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
• ESC Features: 2.3 Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: reset all the programmable items to their default settings.
• ESC Features: 2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
• ESC Advantages: 3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
