Elecom DPA-DL07WH Monitor Arm, Short, Gas Type, Supports VESA Standards, Supports 13-32 Inches, Load Capacity 2.2-17.7 lbs (1-8 kg), White

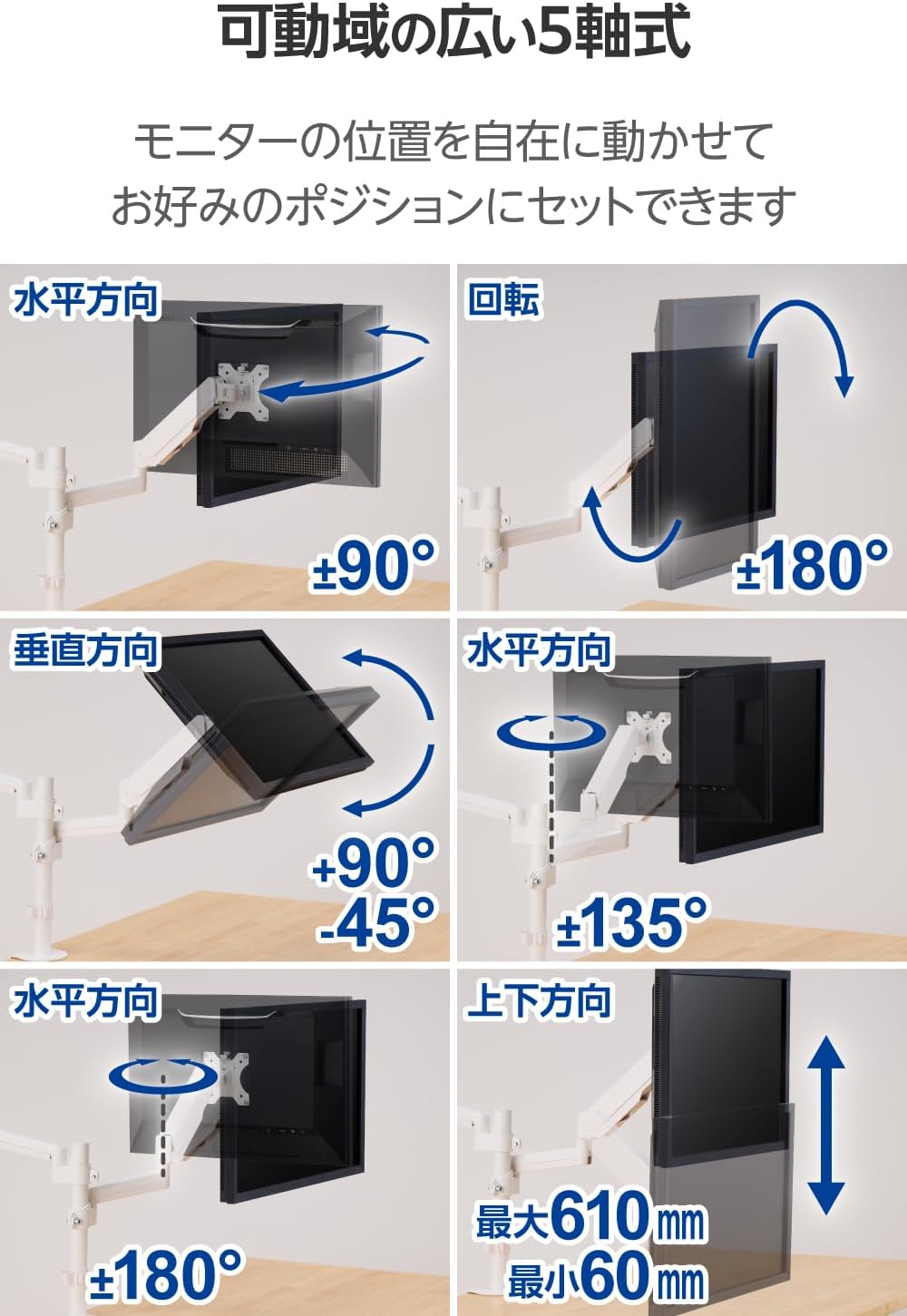

Specifications: ■ Compatible Size: 13 - 32 inches ■ Load Capacity: Approx. 2.2 - 17.6 lbs (1 - 8 kg) (each arm■ Dimensions: Width 37.8 inches (960 mm) x Depth 4.5 inches (114 mm) x Height 22.8 inches (580 mm) to 34.3 inches (87■Weight: Approx. 10.2 lbs (4.9 kg). ■Color: White ■ Number of Screen Mounted: 2 screens ■Material: Steel, aluminum alloy, ABS ■ Movable Method: Gas spring type ■ Compatible Standards: VESA (3.0 x 3.0 inches (75 x 75 mm), 3.9 x 3.9 inches (100 x 100 mm). ■ Movement range: Pan: Left 90° / Right 90° Rotation: 360° Tilt: Up 90° / Down 45° ■ Mountable top thickness: Clamp (pinched and fixed): Approximately 0.4 - 3.1 inches (10 - 80 mm), Grommets (through the hole): Approximately 0.4 - 3.1 inches (10 - 80 mm). ■Fixing method: Clamp type/grommet type ■ Number of Axis: 5 axis ■ Set Includes: Arm x 2, Pole x 1, VESA Mount x 2, Clamp x 1, Cable Holder x 1, Top Plate for Grommet x 1, Bottom Plate for Grommets x 1. ■ Set Includes: Screws x 2, Countersunk screws (M6 x 16) x 3, Hex wrench (small) x 1, Hex wrench (large) x 1, Screws (M4 x 12) x 8, Screws (M4 x 25) x 8, Resin spacers x 16. 【Description】 ■ Dual monitor arm with gas spring loaded support for monitors between 13 and 32 inches ■ Utilize the space under the monitor to allow you to use a wide range of desk surfaces. ■ Gas spring type that can be moved with light force. ■ You can freely move the position of the monitor and set it to your preferred position. - Dual arm type that allows you to install 2 monitors. - This arm type has a wide range of motion and is equipped with a stand that is easy to adjust the height. ■ Compatible with monitors that comply with VESA standards (75mm x 75mm, 100mm x 100mm). ■ You can choose between 2 mounting methods that clamp onto the top plate of your desk and the grommet type which allows you to drill a hole in the top plate and fix it through the bolt. ■ Attach the VESA mount to the back of the monitor, insert it from the top of the monitor arm mounting section, secure it with screws before using. ■ Once the angle of use of the monitor is determined, please tighten the screws on the connection part and fix it. ■ Comes with a cable holder to neatly organize cables from your monitor. ■ This product is characterized by smooth movement after the monitor is installed. By adjusting the strength of the gas spring, you can adjust the firmness of moving up and down. Product inquiries Elecom General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Reception Time / 10:00 - 19:00 24/7

• You can freely adjust the position of your monitor and make use of your desk space. Dual monitor arm with post gas spring loaded with support for two monitors ranging from 13 to 32 inches
• Gas spring type that can be moved with light force. This arm type has a wide range of motion and can be moved freely to adjust the position of your monitor to your preferred position
• Compatible with monitors that comply with VESA (75mm x 75mm, 100mm x 100mm)
• You can choose between 2 mounting methods: Clamp-on to hold onto your desk top and grommet top to secure it through the bolt. This product features smooth movement after monitor is installed. By adjusting the strength of the gas spring, you can adjust the firmness of moving up and down
• Set Includes: Screws x 2, countersunk screws (M6 x 16) x 3, Hex wrench (small) x 1, Hex wrench (large) x 1, screws (M4 x 12) x 8, screws (M4 x 25) x 8, resin spacers x 16
