i5-8265U NAS Mini ITX Motherboard 8 Bay SATA 3.0, NAS Mainboard with 2xi226-V 2.5GbE LAN, 2xM.2 NVMe PCIe3.0 x2, 4K HD+DP NAS MOBO, PCI-E x4, Barebone NO RAM NO SSD
4.9 (77 items)
Limited Time Sale$94.81 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219750596 | Release Date | 2026/05/03 | List Price | $63.20 | Model Number | 219750596 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SIENSNETMini-ITX NAS Motherboard with Core i5 8265U CPU: Core i5 8265U 4C/8T, 6M Cache, up to 3.9GHz, 15W TDP. GPU: Integrated UHD Graphics Memory: Dual-channel DDR4 SO-DIMM at 2133–3200 MHz slots, up to 64 GB. Storage: 8 x SATA3.0 slots, SATA ports come from dual ASM1166 controllers (6 ports) and the chipset (2 native ports), 2 x M.2 NVMe PCIe3.0 x2 slots, 1 x PCIe x 4 slot (electrical 3.0 x 2). LAN Port: 2 x 2.5 GbE i226-V RJ45 LAN. Display: 1xHD 4K@24Hz and 1xDP 4K@60Hz output. FAN: Dual-ball-bearing fan cooler, featuring two copper heat pipes. Feature: Compatible with Wins 10/11, Linux, supports EFl MODE, Linux compatible, supports Legacy Boot mode. I/O: 1 x USB 3.0 port, 3 x USB 2.0 port, 1 x TF card slot, 2 x 2.5 GbE RJ45. Power: ATX 24-pin and an ATX 4-pin power supply Other Expansion: Onboard 1 x USB 3.0 header, 2 x USB 2.0 ports, 1 x PCle x4 slot (PCle 3.0 x2 signal), 1 x Power on/off pin (FPANEL pin), 1 x Buzzer, 1 x GPIO pin header, 1 x COM pin header. Good performance, high cost-effectiveness, I highly recommend this NAS MOBO with CPU for beginners
- Powerful Processor: This desktop motherboard has 8th Gen Core i5 8265U CPU (4C/8T, up to 3.9GHz, 15W TDP) with integrated graphics supporting 1xHD 4K@24Hz and 1xDP 4K@60Hz output. Optimized for low-power uses like NAS and virtualization servers, it outperforms N100/N150 CPUs. For virtualization, it supports VT-x and VT-d, enabling direct hardware passthrough such as network cards and hard disks

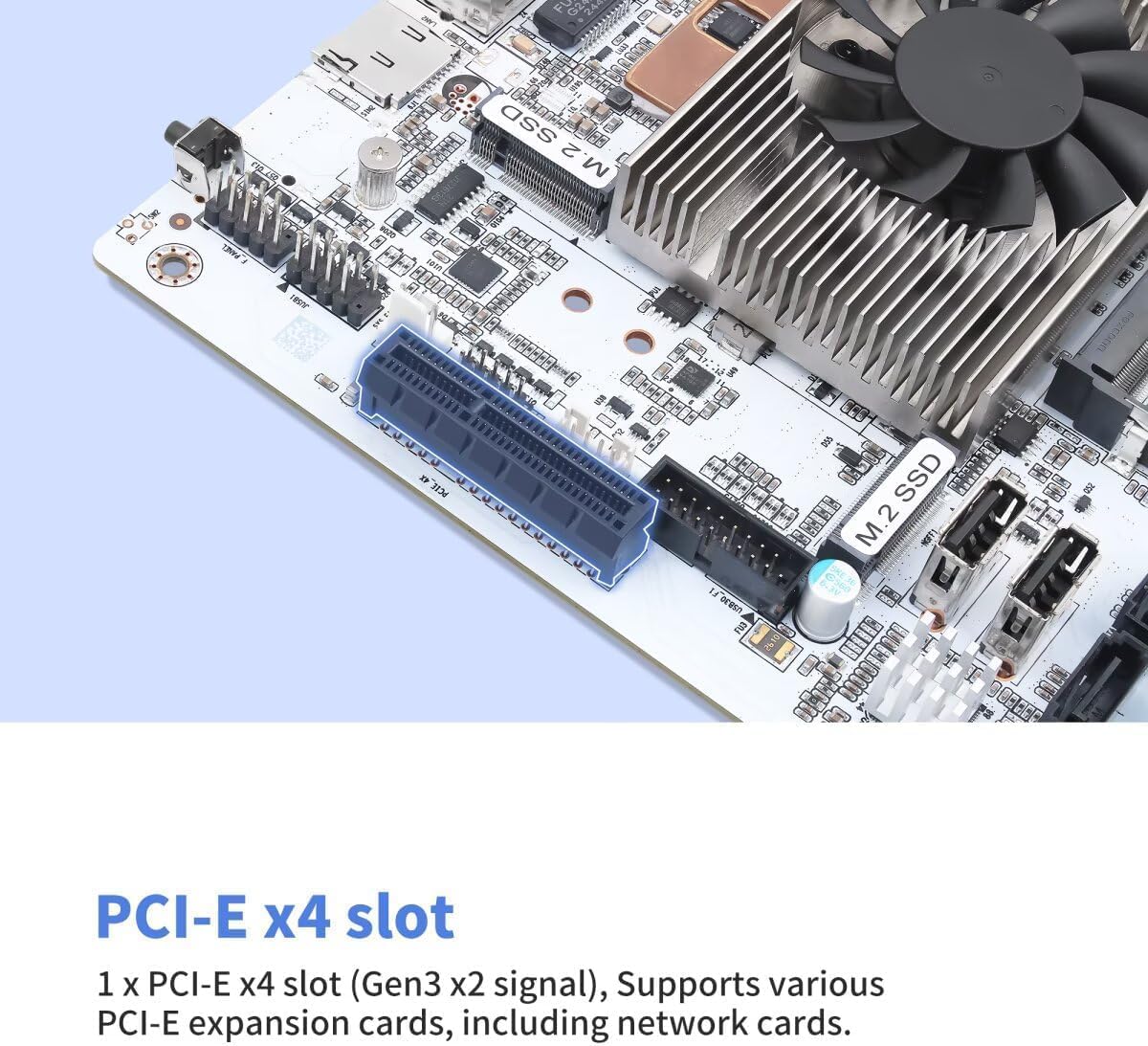

- Ultimate Storage: Equipped with 2xM.2 NVMe PCIe3.0 x2 slots and 8x SATA3.0 ports. The SATA ports come from dual ASM1166 controllers (6 ports) and the chipset (2 native ports), ensuring stable, high-speed transfers. Also includes a PCIe 3.0 x4 slot (electrical x2), perfect for network cards, expansion cards. Supports 2xdual-channel DDR4 SO-DIMMs at 2133–3200 MHz, up to 32GB per module, max 64GB
- Fast 2.5GbE Networking: Equipped with 2x2.5 GbE RJ45 ports, it ensures fast and stable data transfer. Designed for enhanced reliability, it is ideal for professional and industrial-grade equipment such as NAS, multimedia servers, and network security appliances
- Cooling Design: The dual-ball-bearing fan cooler, featuring two copper heat pipes, achieves efficient and quiet heat dissipation. Ensuring the NAS motherboard maintains stable performance under high loads, making it particularly suitable for prolonged use and high-performance tasks
- Standard Mini-iTX Motherboard: 17x17cm, 6-layer, high-density, moisture-resistant fiberglass board. Its I/O ports include 1xUSB 3.0 port, 3xUSB 2.0 port, 1xTF card slot. It requires both an ATX 24-pin and an ATX 4-pin power connection to operate
| Brand | SIENSNET |
|---|---|
| Platform | No Operating System |
| CPU Model | Intel Core i5 |
| Model Name | S-8265U |
| Chipset Type | soc |
| Manufacturer | SIENSNET |
| Model Number | S-8265U |
| Total Usb Ports | 4 |
| Processor Socket | FCBGA1528 |
| Total SATA Ports | 8 |
| Compatible Devices | Personal Computer |
| Memory Clock Speed | 2133 MHz |
| Warranty Description | 1 year manufacturer |
| Compatible Processors | FCBGA1528 |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 2 |
| Ram Memory Maximum Size | 64 GB |
| Number of Ethernet Ports | 2 |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
