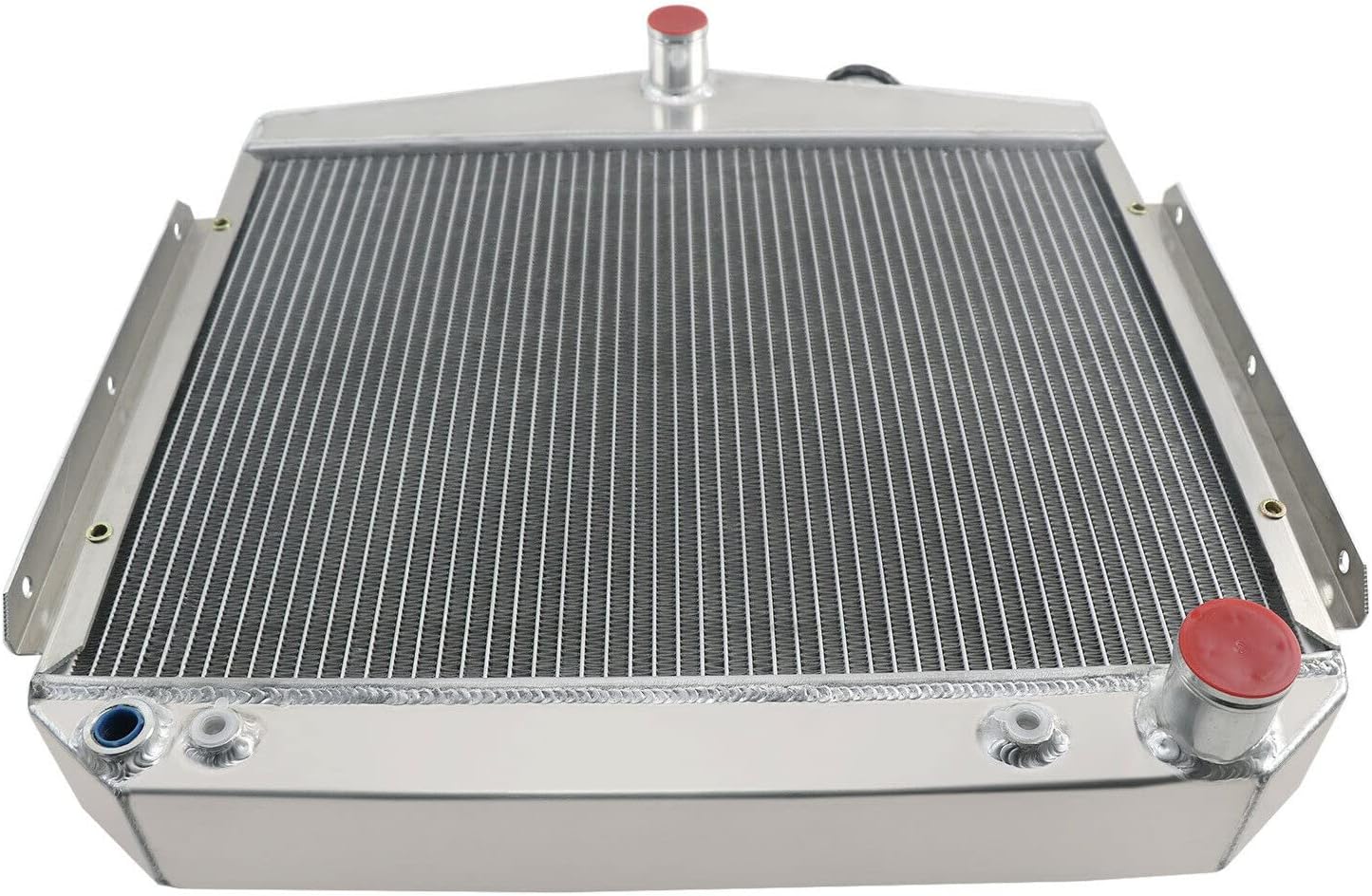

3 Row Aluminum Radiator For 1955-1957 Chevy Bel Air Small Block/Big Block Chevy V8 3 Core Downflow Radiators

This Radiator Configuration: Material: Full Aluminium High Performance Racing Spec. 3-Row of tubes Core Racing Design Core Dimensions: 16-3/8"H x 22"W Overall Dimensions: 22-7/8"H x 23-1/4"W Upper Inlet 1-1/2" located on the center Lower Outlet 1-3/4 located on the Passenger side Uses 5/16" inverted flare tube O.E. fittings for transmission cooler (1/2"-20 flare cone) Includes 1/2" NPT bung on bottom of tank Transmission Cooler 7/8-14UNF OEM style brass petcock drain. Please Check the Size Before You Buy! Application: Mounts to Grille Side of Core Support For 1955-56 Small Block/Big Block-Chevy I6 (Straight/Inline 6 cylinder) with (Short or Long Water Pump) For 1955-57 Small Block/Big Block-Chevy V8 (with Long Water Pump) Why Choose Cubauto Radiator? 1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish 2. Brazed core technology to guarantee optimum performance and dependability 3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable 4. Billet Aluminum CNC machined fill neck rugged and durable 5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment. 6. Carefully crafted to exceptional OE standards for precise fit.

• ♐Radiator for 1955-56 Small Block/Big Block-Chevy I6 (Straight/Inline 6 cylinder) with (Short or Long Water Pump); for 1955-57 Small Block/Big Block-Chevy V8 (with Long Water Pump)
• ♐Core Dimensions: 16-3/8"H x 22"W；Overall Dimensions: 22-7/8"H x 23-1/4"W; Upper Inlet 1-1/2" located on the center; Lower Outlet 1-3/4 located on the Passenger side; Uses 5/16" inverted flare tube O.E. fittings for transmission cooler (1/2"-20 flare cone); Includes 1/2" NPT bung on bottom of tank
• ♐Trans oil cooler specifications: φ26*320*1/4-18NPT(P) ;Cubauto 3 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• ♐ All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum)
• ♐Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• Note: 100% Leak Tested, Downflow Radiator, Durability Tested; If you have any questions, please feel free to contact us, Cubauto will try our best to help you.Do not hesitate to get one!
