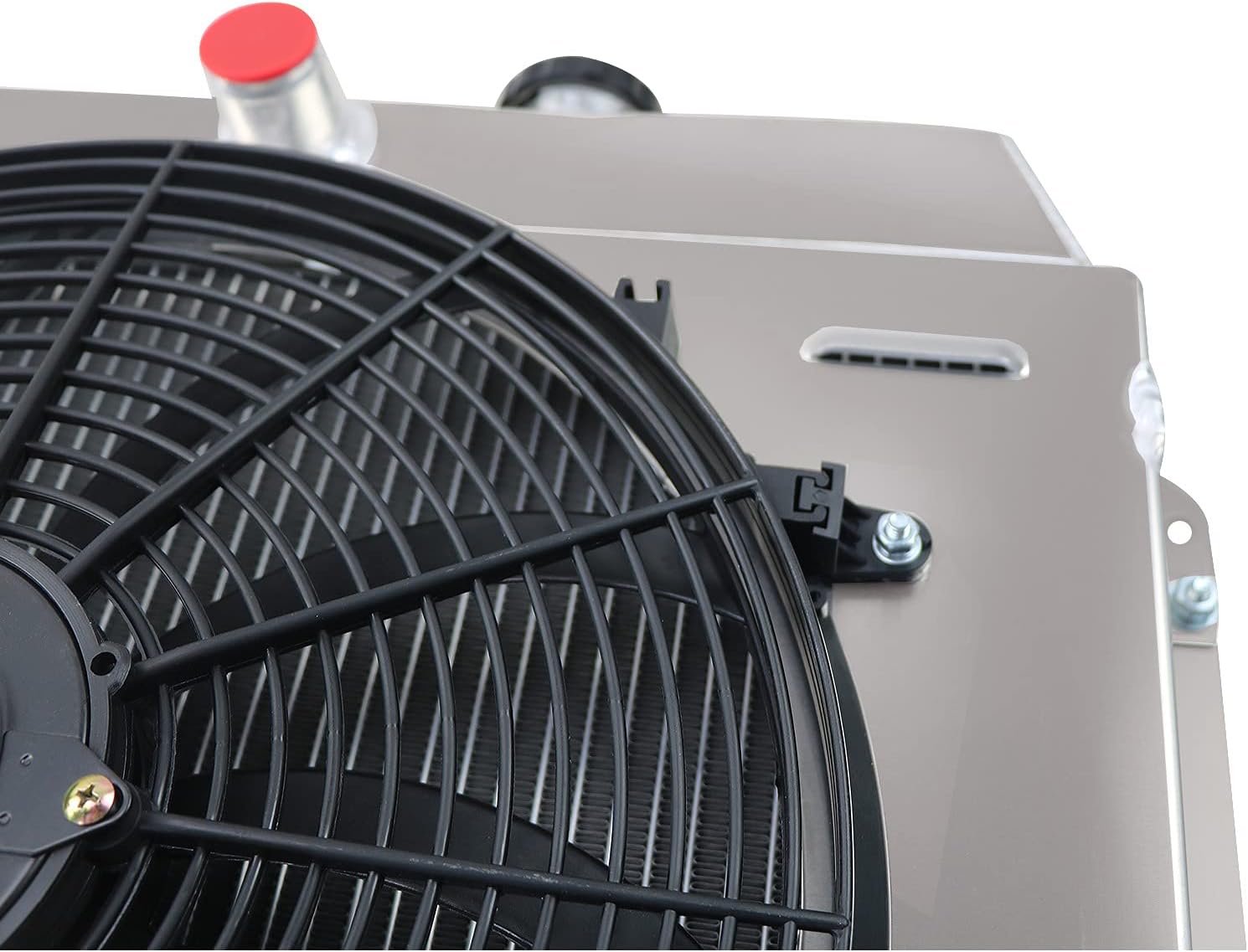

Radiator for 1949-1954 Chevy Bel Air Fleetline Styleline Deluxe Special 150 210 V8 Conversion Sedan Coupe, 3 Row Radiator + Shroud/Fan + Relay Kit

This Radiator Compatible with: 1949-1952 Chevy Styleline Deluxe 1949-1952 Chevy Styleline Special 1949-1952 Chevy Fleetline 1950-1954 Chevy Bel Air 1953-1954 Chevy One-Fifty Series 1953-1954 Chevy Two-Ten Series Fit 3.5L/ 3.8L/ 3.9L V8 Conversion Only PLS double check OEM radiator core/overall size & inlet/outlet location before ordering. PLS use AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Thermostat Relay Kit Instructions: * Activates by grounding electric fans at preset temperature. * 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. 16" Fan Spec: Voltage: DC 12 Volts Maximum Fan CFM: 2150 Wattage: 120 Wattage Thickness: 2.5" Number of Blades: 10 S-Type blades Maximum Fan RPM: 2250 rpm Amp Draw: 10 amps Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question! Your message will be replied within 12 hours!

• Core Size: 17.1'' x 21.6'' x 1.73'' ; Overall Size: 25.2'' x 23.2'' x 6.7'' ; 3 row ore high performance design
• Inlet: 1 1/2" at center ; Outlet: 1 3/4" at passenger side
• Trans Cooler :￠26×250×1/8-27NPT (T)
• All radiators 100% leak/durability tested ; No drilling or modifications needed for installation
• Buy with no worry-12 months warranty
• All aluminum construction provides greater heat and pressure tolerance, better heat dissipation
• Full aviation-aluminum craftsmanship, 100% welded by TIG
• Aluminum brazed cores for minimal distortion
