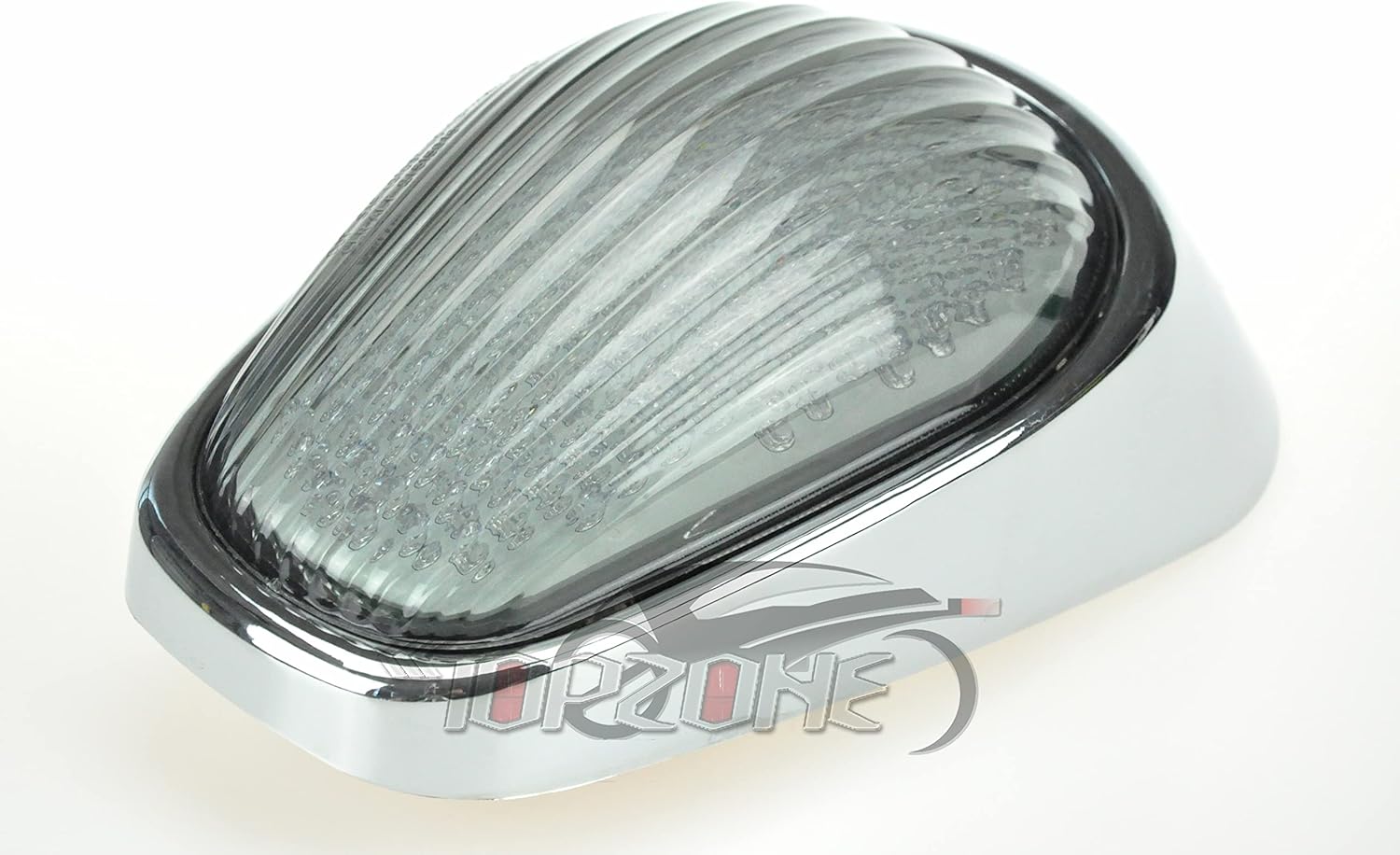

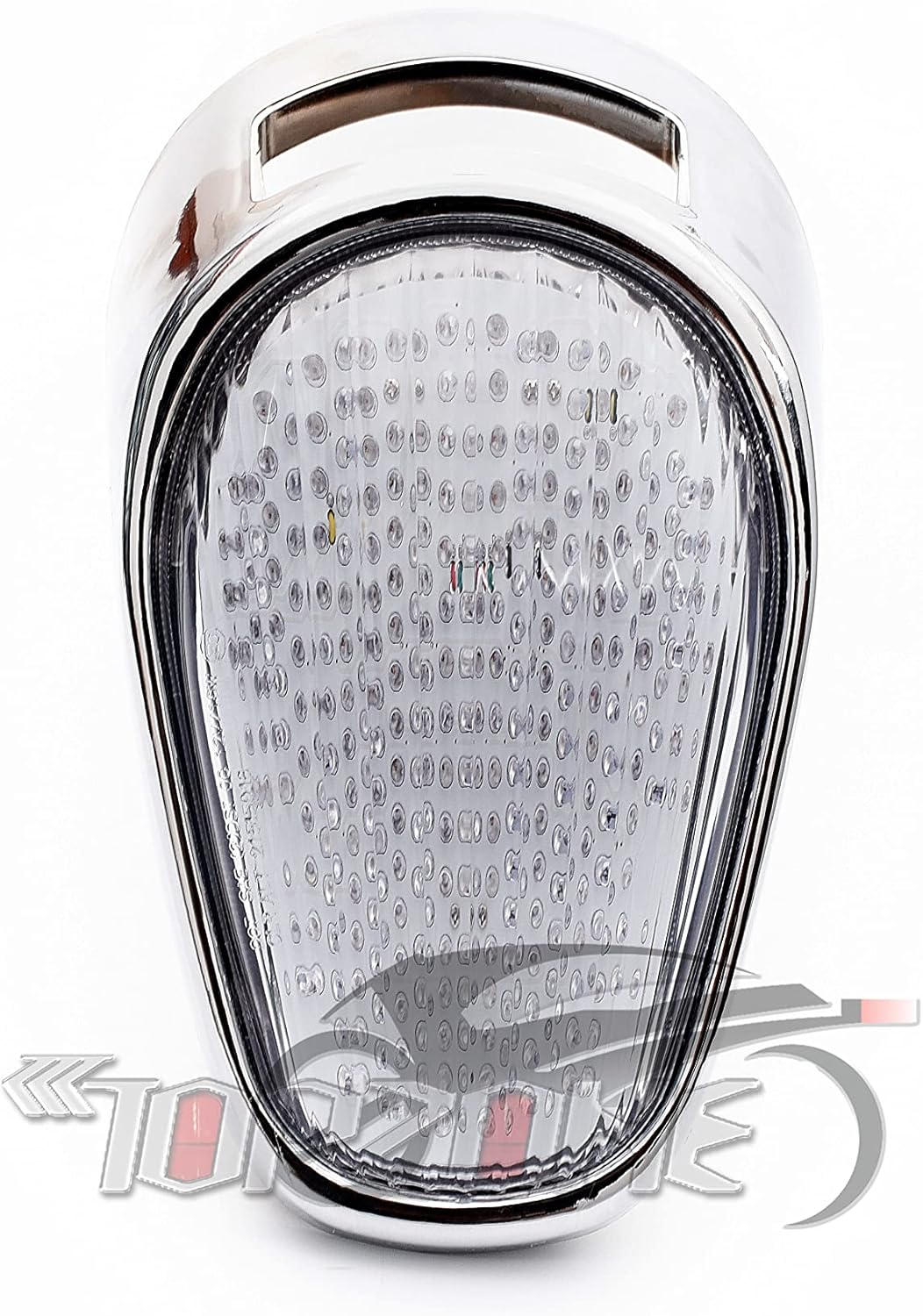

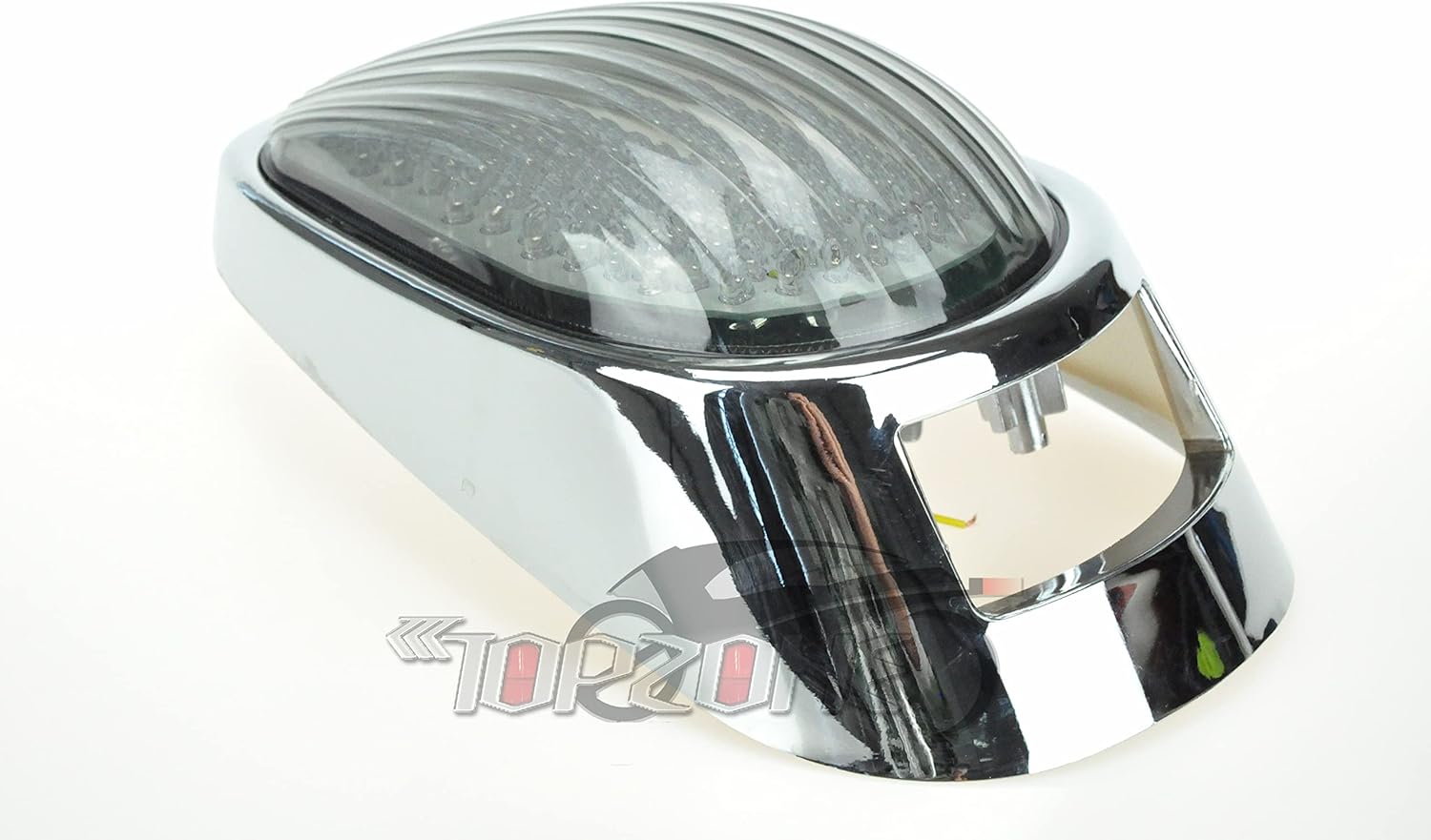

Fit Kawasaki Vulcan 2000 / VN2000 ; Motorcycle LED Rear Lamp Brake Tail Light + Integrated Turn Signal Function (LED integrated Turn Signal Function, Smoke)

LED Taillights Brake Tail Light with Integrated Turn Signal Lamp Indicators For Kawasaki Vulcan 2000 / VN2000 Upgrade the taillight on your motorcycle with an Integrated LED taillight with turn signals. Running light / position light : red color Stop light / brake light : red color more powerful when you are braking Integrated turn signals indicators : amber color on each half of the taillight (wires are independent) To slow down the blinking rate use provided resistors if necessary: Wiring Diagram applicable to most bikes: Black Wire(Negative), Green Wire(Brake) Red Wire(Running Light) 1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike. 2. Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive turn signal wire from your turn signal harness from your bike. 3. Repeat the same process for the other side. To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel. Push down the metal pin as it will make a small cut on each wire bridging the connectors. if you are using the resistors, place one end of the resistor in the middle of either channel along with the one wire. Quality Guarantee： return and full re-fund if any quality issues. Our service: 7 days/ 24hours service available. Most emails can be replied within 24 hours including weekends and holidays. ( Due to different time zone, some maybe delayed).
