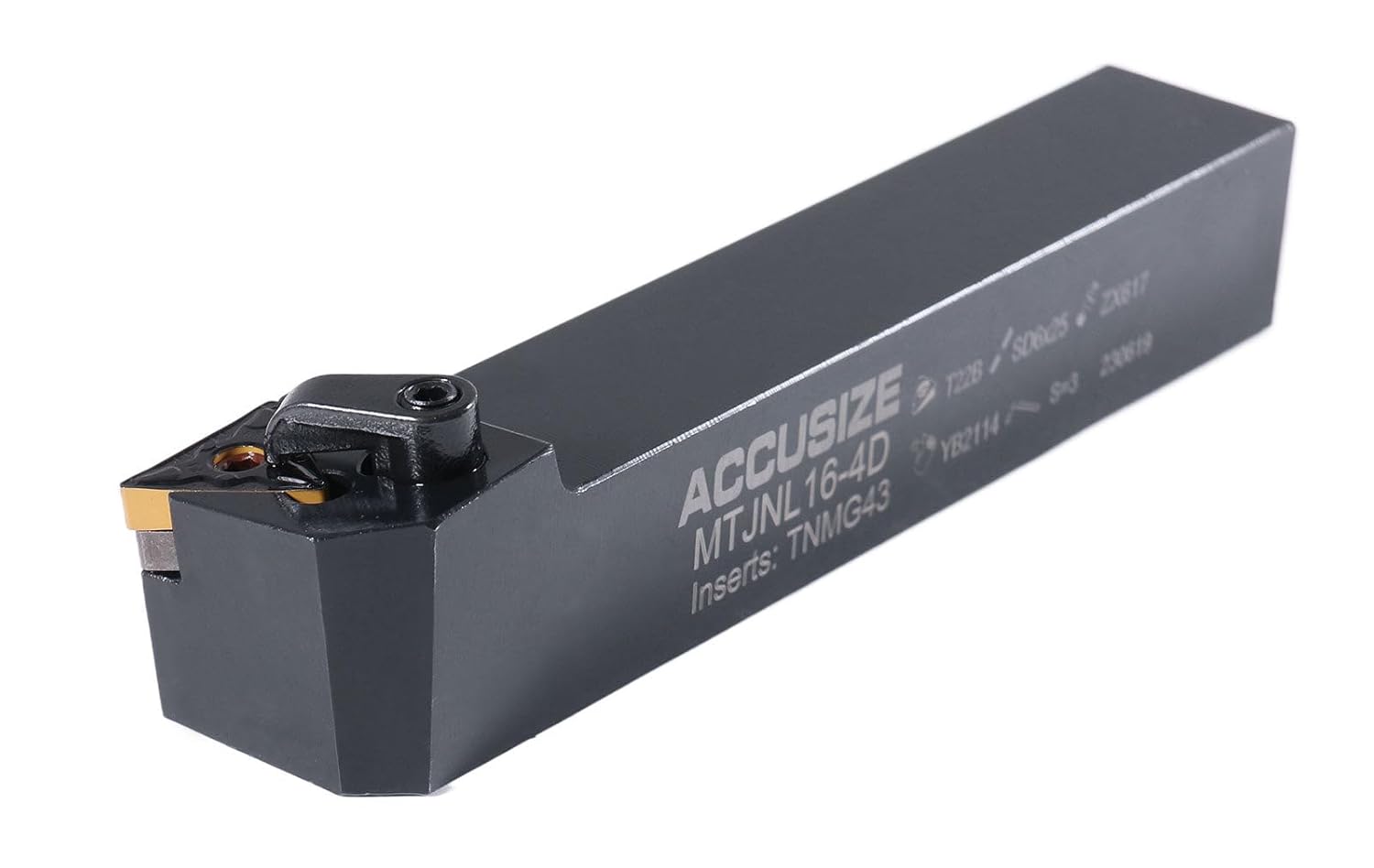

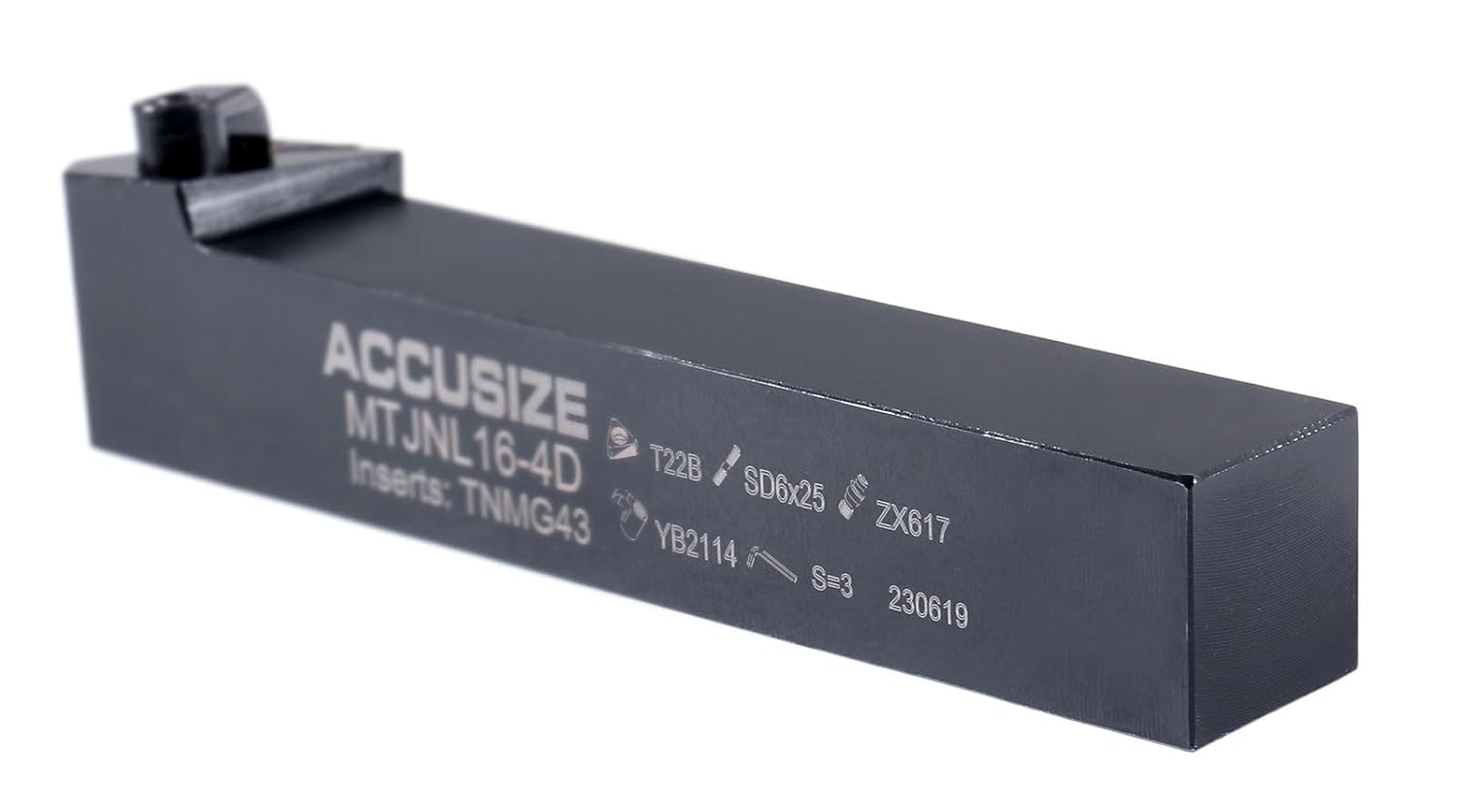

Accusize Industrial Tools MTJNL16‑4D Turning Tool Holder, Left Hand, 1" Shank x 6" OAL, Includes TNMG432 Carbide Insert, 2312-6012

The MTJNL 16‑4D turning tool holder is designed for left‑hand contouring, profiling and facing with added reach and rigidity. Constructed from hardened alloy steel, it has a 1" square shank, 6" overall length and 1‑1/4" tool height to suit manual or CNC lathes. Negative 3° cutting edge angle and negative rake geometry facilitate smooth chip flow and material removal. A TNMG432 insert with a multi‑layer CVD coating combining TiCN, Al₂O₃ and TiN is included, offering high wear resistance, strong adhesion and heat resilience. A finger clamp, clamp screw, locking pin and shim secure the insert and damp vibration. This holder provides machinists and engineers with a reliable left‑hand solution for roughing through finishing on steel, stainless steel and cast iron.

• Left‑hand MTJNL 16‑4D turning tool holder with negative 3° cutting edge angle and negative rake for contouring, profiling and facing operations.
• 1" square shank with 6" overall length and 1‑1/4" tool height offers stability and reach on manual or CNC lathes for controlled cutting.
• Accepts TNMG43 CVD‑coated carbide inserts; one TNMG432 insert is included and features a multi‑layer coating combining TiCN, Al₂O₃ and TiN for high wear resistance, strong adhesion and heat resilience.
• Hardened alloy steel body with finger clamp, clamp screw, locking pin and shim secures the insert and dampens vibration for consistent performance.
• Designed for machinists and engineers performing external turning, facing and profiling from roughing to finishing on steel, stainless steel and cast iron where left‑hand orientation and extended reach are required.
