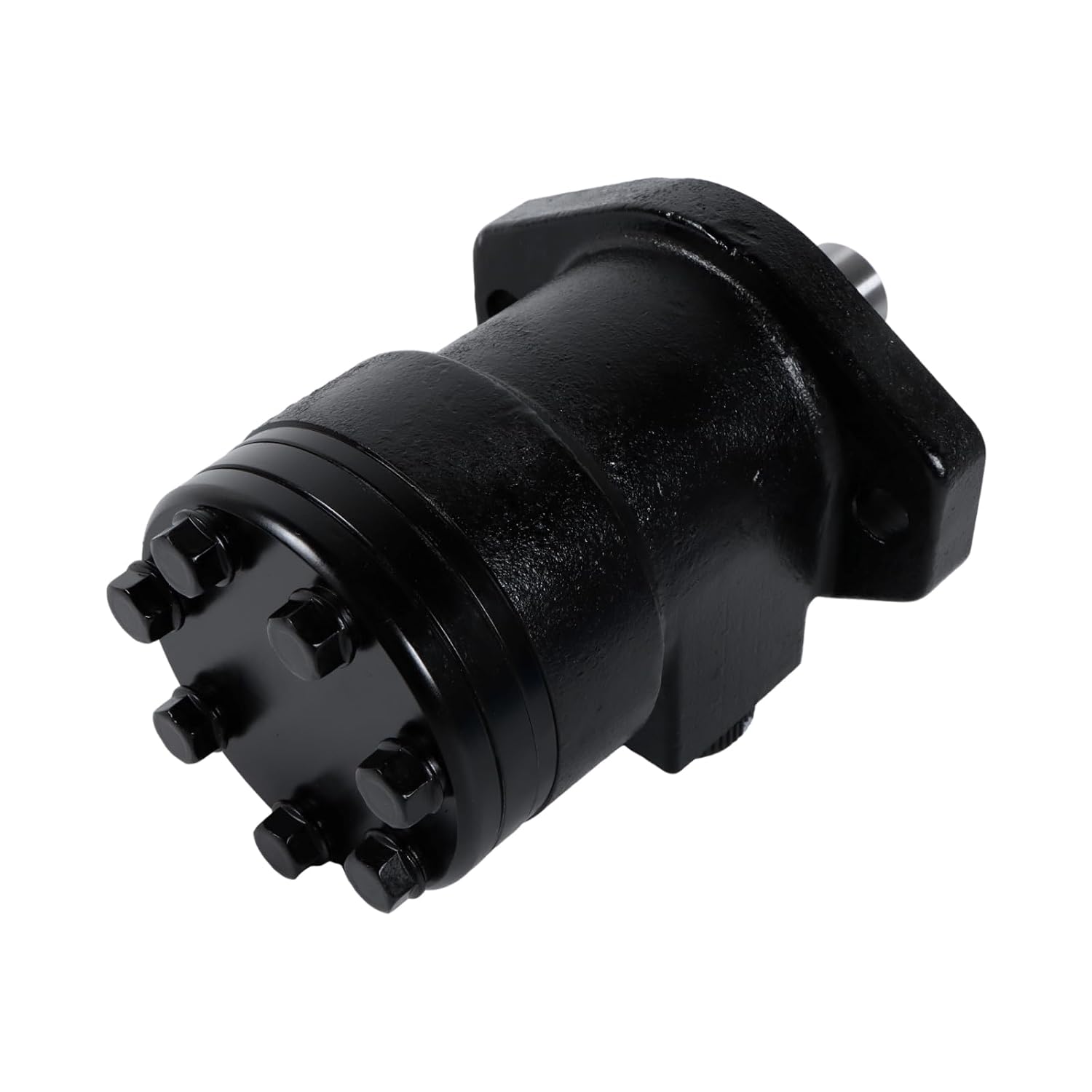

SINOCMP 101-1033-009 New Hydraulic Motor Replacement for Eaton Char-Lynn H Series High Torque Low Speed Orbital Motor for Construction Agriculture Mining

Technical Specifications at a GlanceDisplacement: 2.8 cu in/rev (46 cc/rev)Max Continuous Pressure: 1800 PSI (124 bar)Max Intermittent Pressure: 2400 PSI (165 bar)Max Continuous Flow: 12 GPM (45 L/min)Max Intermittent Flow: 15 GPM (57 L/min)Max Continuous Speed: 969 RPMMax Continuous Torque: 646 lb-in (73 Nm)Minimum Starting Torque: 517 lb-in continuous pressurePilot Diameter: 3.25 inch (82.55 mm)Bolt Circle: 4.187 inch (106.35 mm)Mounting Bolts: 7/16-14 UNC-2B (two required)Shaft: 1 inch straight with Woodruff key, 1/4-20 UNC-2B threaded end holePorts: 7/8-14 UNF-2B SAE O-ring (side port location)Case Drain: NoneHousing: Cast iron with primer low gloss black paintSeal Material: Buna-N (standard)Max Operating Temperature: 180°F (82°C)Weight: 11.2 lbs (5.1 kg)Compatibility InformationThis 101-1033-009 hydraulic motor serves as a replacement for Char-Lynn Eaton H Series applications. It is compatible with the following configurations:101-1033-009 (primary model)OMPH series replacement motorsBMPH series replacement motorsOperating Guidelines and Limitations⚠️ Maximum continuous pressure is 1800 PSI. Brief intermittent operation up to 2400 PSI is permitted for no more than 10% of each minute.⚠️ Maximum operating temperature is 180°F. Higher temperatures degrade seal materials and reduce motor life.⚠️ Maximum continuous flow is 12 GPM. Intermittent flow up to 15 GPM is allowed for short durations only.⚠️ Use premium anti-wear hydraulic oil. Maintain filtration per ISO 4406 cleanliness code 20/18/13.⚠️ Minimum oil viscosity is 100 SUS. Recommended operating viscosity range is 100-200 SUS (20-43 cSt) at operating temperature.⚠️ Avoid thermal shock. Do not introduce fluid more than 70°F above or below motor casing temperature.⚠️ Minimum delta pressure warning: Maintain at least 50 PSID difference between motor ports at all times (except when switching direction).⚠️ This motor has no case drain. Maximum case pressure without external drain is 1500 PSI.⚠️ Simultaneous maximum torque and maximum speed operation is not recommended.

• [🔧] Direct Swap for 101-1033 Models: Hydraulic motor 101-1033-009 replaces Char-Lynn Eaton H Series models with 2.8 cu in/rev displacement. The 2-bolt SAE-A flange mount with 3.25 inch pilot diameter lets this replacement hydraulic motor bolt directly onto agricultural augers, harvesters, and industrial sweepers without modifications.
• [⚙️] High Speed at 969 RPM: H series hydraulic motor delivers 969 RPM continuous speed with 646 lb-in torque at 1800 PSI. The three-moving-part gerotor design helps this 101-1033-009 hydraulic motor maintain consistent power for demanding tasks like driving conveyor belts, rotating car wash brushes, or powering seeders and food processing equipment.
• [🛢️] SAE O-Ring Leak-Free Ports: Char-Lynn style hydraulic motor features 7/8-14 SAE O-ring side ports for reliable sealing. The O-ring design on this 101-1033-009 replacement hydraulic motor creates leak-free connections without thread sealant, saving installation time on car washes and industrial equipment.
• [🏗️] Three Moving Parts Reliability: Only three internal components rotate inside this H series hydraulic motor. The simple gerotor-star, drive, and shaft design makes this 101-1033-009 hydraulic motor easier to maintain and less likely to fail than complex multi-piston alternatives. Maximum intermittent pressure reaches 2400 PSI for short durations.
• [📦] Ready-to-Install Package: Box contains one hydraulic motor 101-1033-009 (primer low gloss black finish) with 1 inch straight shaft and Woodruff key. Important: Verify 3.25 inch pilot diameter and 2-bolt pattern before ordering this replacement hydraulic motor. Flush hydraulic lines prior to installation.
