Pre Booking Filling Peristaltic Pump High Flow 120v Precision Calibrate Quick Replace Tubing Metering Water Chemical Resist Long Life

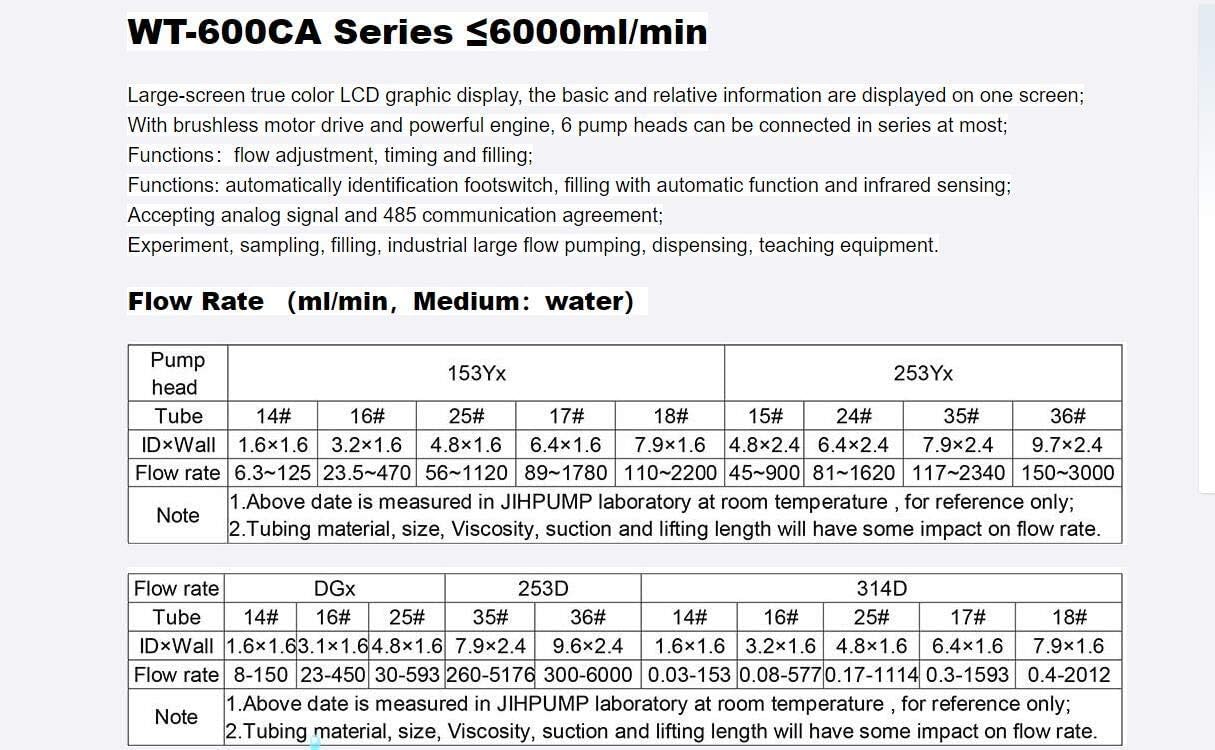

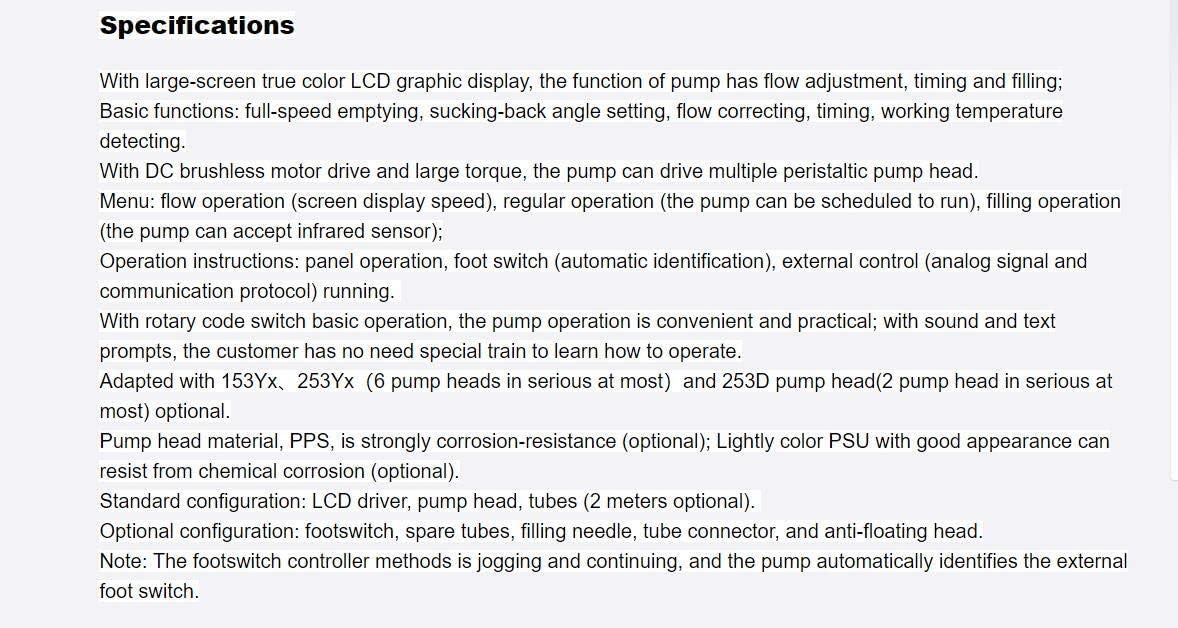

Flow Rate （ml/min，Medium：water） Tube 35# 36# ID×Wall 7.9×2.4 9.6×2.4 Flow rate 260-5176 300-6000 Introduction of Function■ large-screen true color LCD graphic display ■ Basic functions: full-speed emptying, sucking-back angle setting, flow correcting, timing, working temperature detecting.■DC brushless motor drive and large torque, the pump can drive multiple peristaltic pump head.■ Menu: flow operation (screen display speed), regular operation (the pump can be scheduled to run), filling operation (the pump can accept infrared sensor)■Operation instructions: panel operation, foot switch (automatic identification), external control (analog signal and communication protocol) running. ■Pump head material, PPS, is strongly corrosion-resistance (optional); ParameterRotary speed: 30~600.0rpm, clockwise or counter-clockwise can be swift.Speed adjustment Rotary code switchFunction :Adjusting flow rate,timing,fillingSize length : 304×width166×height178(mm)，weight：4.1-5.1KgWorking environment: 0-60°C,relative humidity less than 85%Power: Ac110v- 220V50/60Hz 120WPressure: ≤0.2Mpa (If working time is short, the outlet pressure can get0.27MP)■ Standard configuration: LCD driver, pump head, tubes (2 meters 36# silicon default ). ■Optional configuration: footswitch, spare tubes, filling needle, tube connector, and anti-floating head. if you need any of them ,pls contact us directly

• Variable Rotary Speed Control: Adjustable speed range from 30 to 600.0 rpm for precise flow control in various applications
• High Flow Rate Capacity: Delivers flow rates from 0 to 6000 ml/min when using water as the medium, suitable for high-volume dispensing tasks
• Multiple Operating Functions: Features adjusting flow rate, timing operations, and filling capabilities for versatile liquid handling
• Advanced Basic Functions: Includes full-speed emptying, sucking-back angle setting, flow correcting, timing, and working temperature detecting for enhanced operational control
• Dual Voltage Power Supply: Compatible with AC 110V-220V 50/60Hz power sources with 120W consumption and maximum pressure rating of 0.2Mpa
• Durable Pump Head Material: Constructed with PPS material offering strong corrosion-resistance for handling various chemicals and liquids
