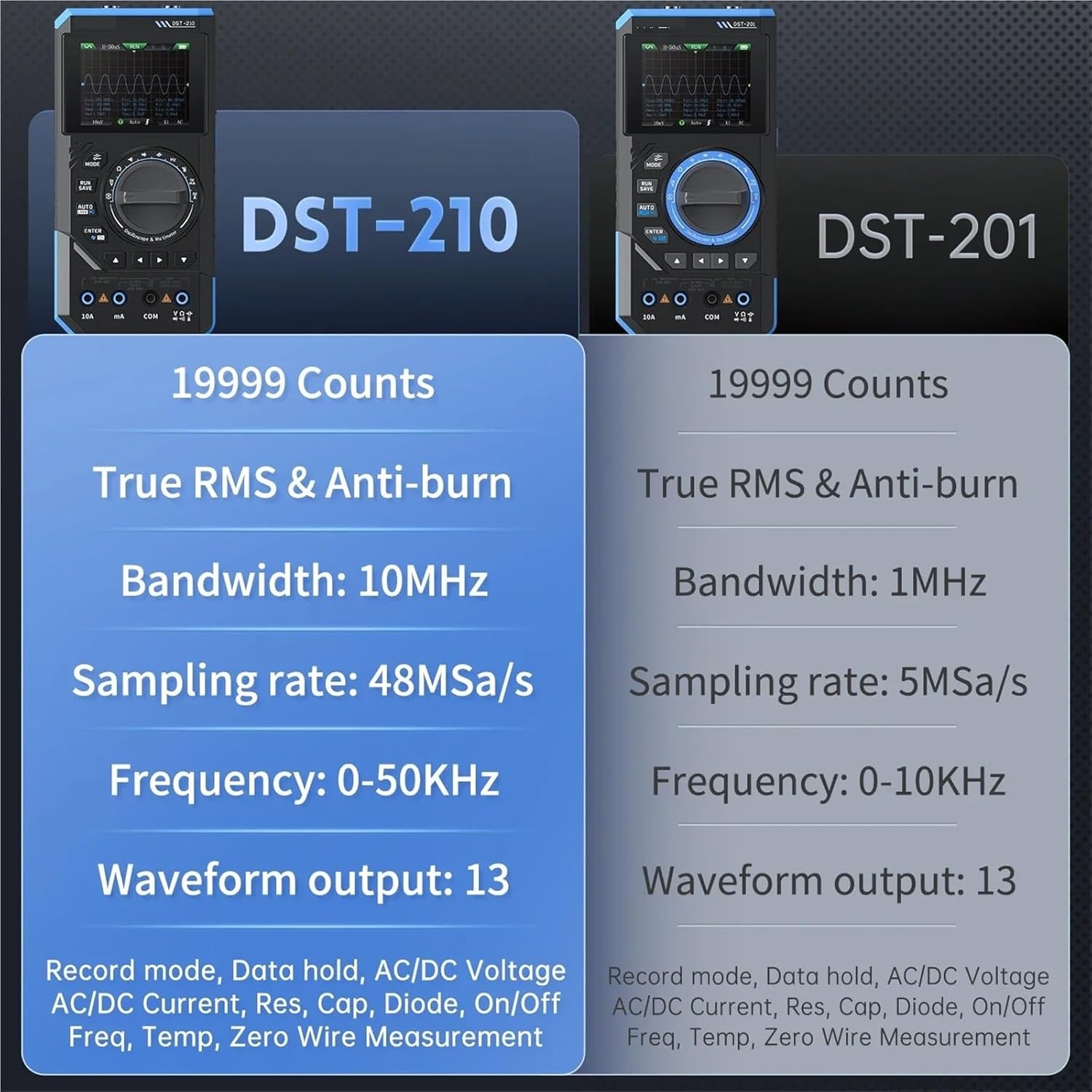

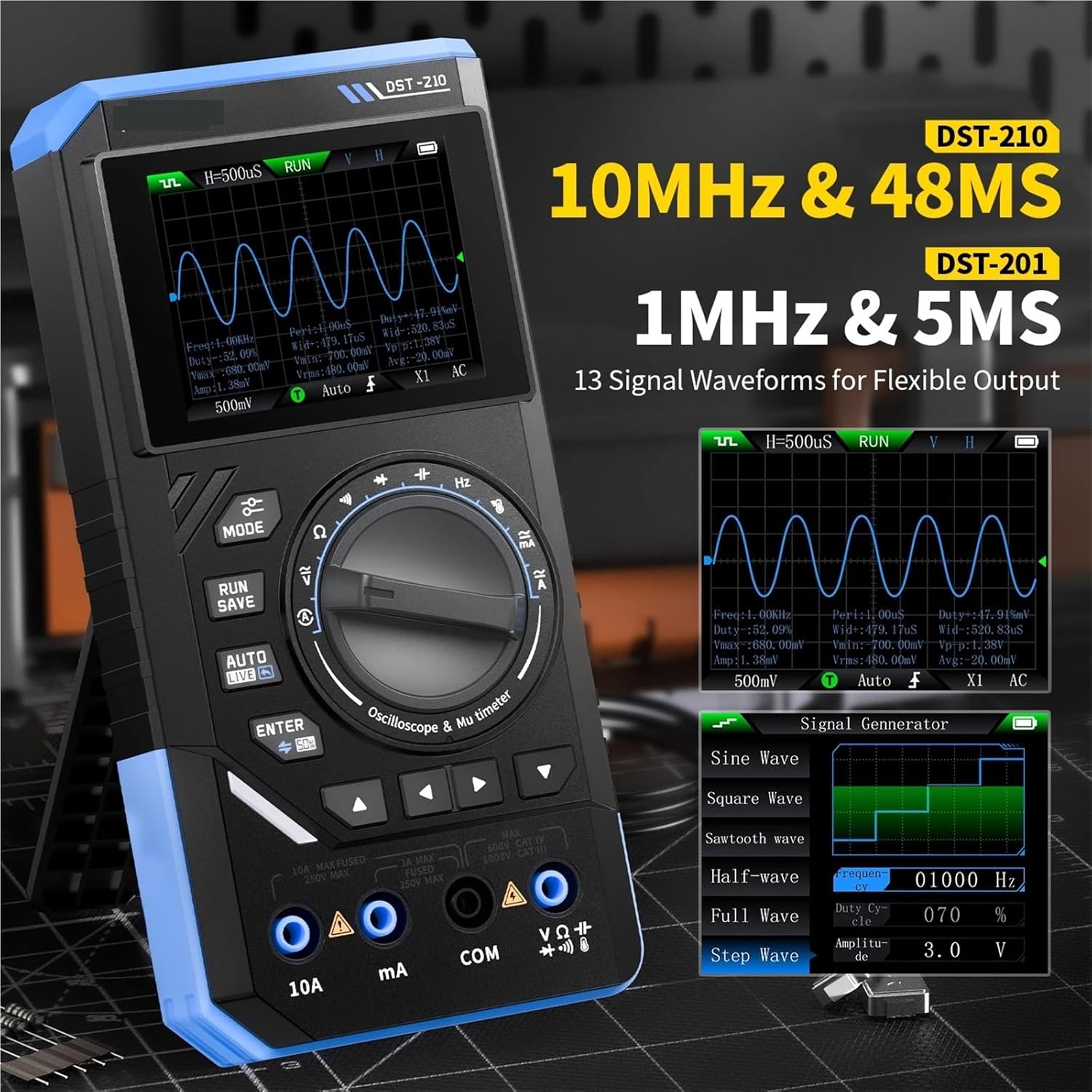

DST210 3-in-1 Digital Multimeter True-RMS 19999 Counts 10MHz 48MSa/s Sampling Rate Oscilloscope 0-50KHz Signal Generator(DST-201 (1MHZ))

Digital Signal ProcessorsProduct Parameters:Basic Parameters1.Screen Material: 2.8 inch TFT Color Screen2.Backlight: Backlight brightness adjustable3.Charging Power: TYPE-C (5V 1A)4.Battery: 3000mAh5.Languages: Chinese / English6.Product Size: 177.43×87.47×34.5mm7.Net Weight: 300gParameters 11.Real-time Sampling rate: 5MSa/s(DST-201);48MSa/s(DST-210)2.Analog Bandwidth: 1MHz(DST-201);10MHz(DST-210)3.Input Impedance: 1M4.Coupling Mode: AC/DC5.Test Voltage Range: 1:1 Probe: 80Vpp (+40V), 10:1 Probe: 800Vpp (+400V)6.Vertical Sensitivity: 10mV/div - 10V/div7.Vertical Displacement: Adjustable with indicators8.Level Time Base: 500ns ~ 20s9.Trigger Mode: Auto / Normal / Single10.Trigger Type: Rising Edge & Falling Edge11Trigger Level Adjustable with indicators12Waveform Freeze Support HOLD function13Auto Measurement Maximum Minimum, Average, RMS, VPP, Frequency, Period, Duty CycleParameters 21.DC Voltage: 1.9999V/19.999V/199.99V/1000V -- ±(0.5%+3)2.AC Voltage: 1.9999V/19.999V/199.99V/750.0V -- ±(1%+3)3.DC Current: 19.999mA/199.99mA/1.9999A/9.999A -- ±(1.2%+3)4.AC Current: 19.999mA/199.99mA/1.9999A/9.999A -- ±(1.5%+3)5.Resistance: 19.999M/1.9999M/199.99K/19.999K() -- ±(0.5%+3)1.9999K/199.99--±(2.0%+3)6.Capacitance: 999.9uF/99.99uF/9.999uF/ 999.9nF/99.99nF/9.999nF -- ±(2.0%+5)9.999mF/99.99mF -- ±(5.0%+20)7.Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/ 999.99Hz/99.99Hz/9.999Hz -- ±(0.1%+2)8.Temperature: -55~1300/ -67~2372 -- ±(2.5%+5)9.Diode/Continuity: 10.Zero Live Wire: Parameters 31.Output Waveform: Support 13 types2.Waveform Frequency: 0-10KHz3.Square Duty Cycle: 0-100%, Square and Sawtooth are adjustable4.Waveform Amplitude: 0.1V-3.0VPackage Included:1 x DST-201 or DST-2101 x Crocodile Clip Probe1 x Multimeter Probe1 x Charging Cable1 x User Manual1 x Packing Box==========Battery Included : YesHigh-concerned chemical : NoneModel Number : DST-201/DST-210Real Time Sampling Rate : 48MSa/SDIY Supplies : ElectricalBand Width : 10MHzDigital Channels : 1Bandwidth: : 1MHz (DST-201),10MHz (DST-201)Sampling rate: : 5MSa/s (DST-201),48MSa/s (DST-210)Output Waveforms: : 13Waveform Frequency: : 0-10KHzWaveform Amplitude: : 0.1V-3.0VCounts: : 19999DC Voltage: : 1000V(Max)AC Voltage: : 750.0V(Max)DC/AC Current: : SupportResistance: : SupportCapacitance: : SupportFrequency: : SupportTemperature: : (-55-1300) / (-67-2372)Diode: : SupportContinuity: : SupportZero Live Wire: : SupportScreen: : 2.8 TFT Color ScreenCharging Power: : TYPE-C (5V/1A)Battery: : 3000mAh
