2CH Handheld Digital Oscilloscope Multimeter Signal Generator 3in1 Automotive Oscilloscope 50MHz Bandwidth 25000 Counts

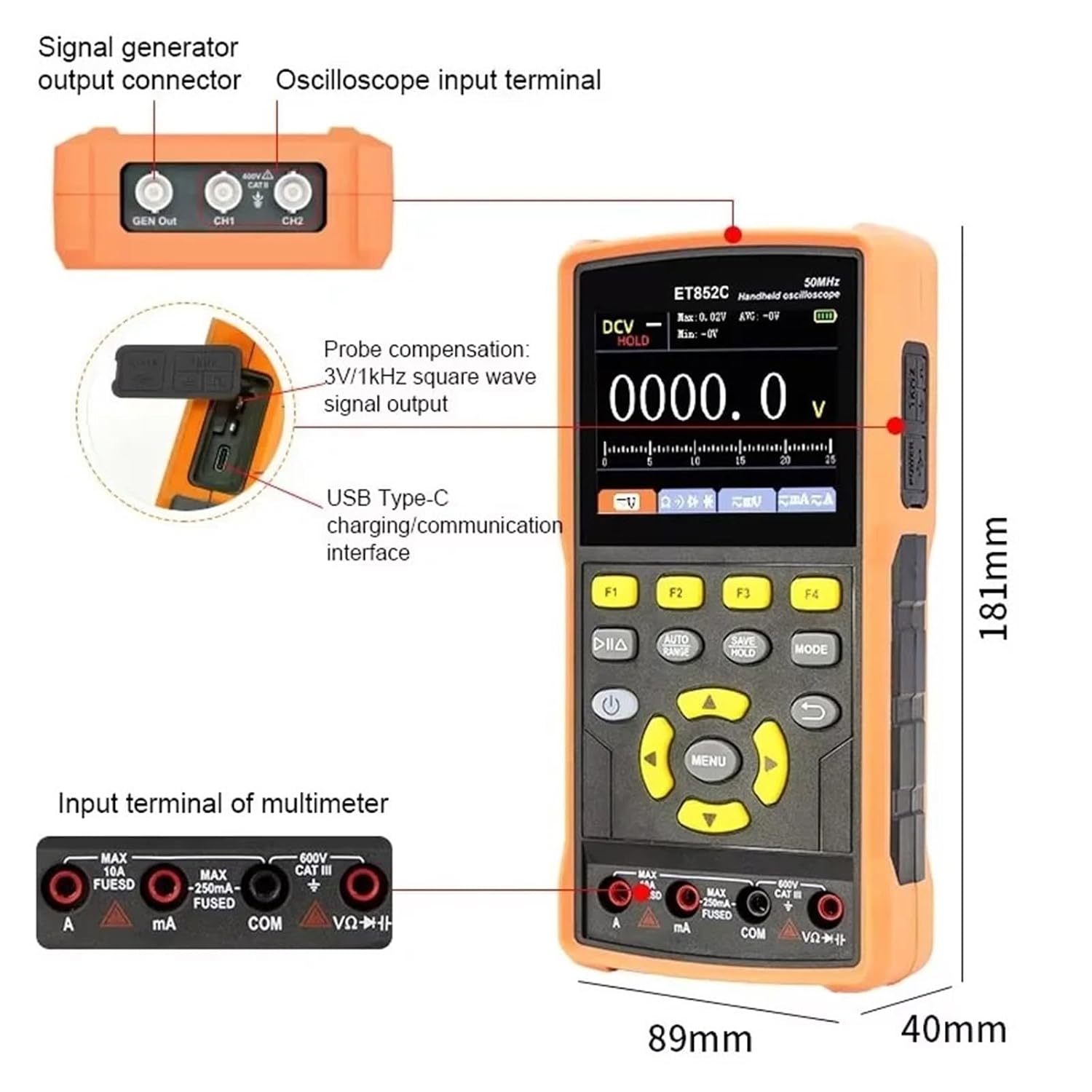

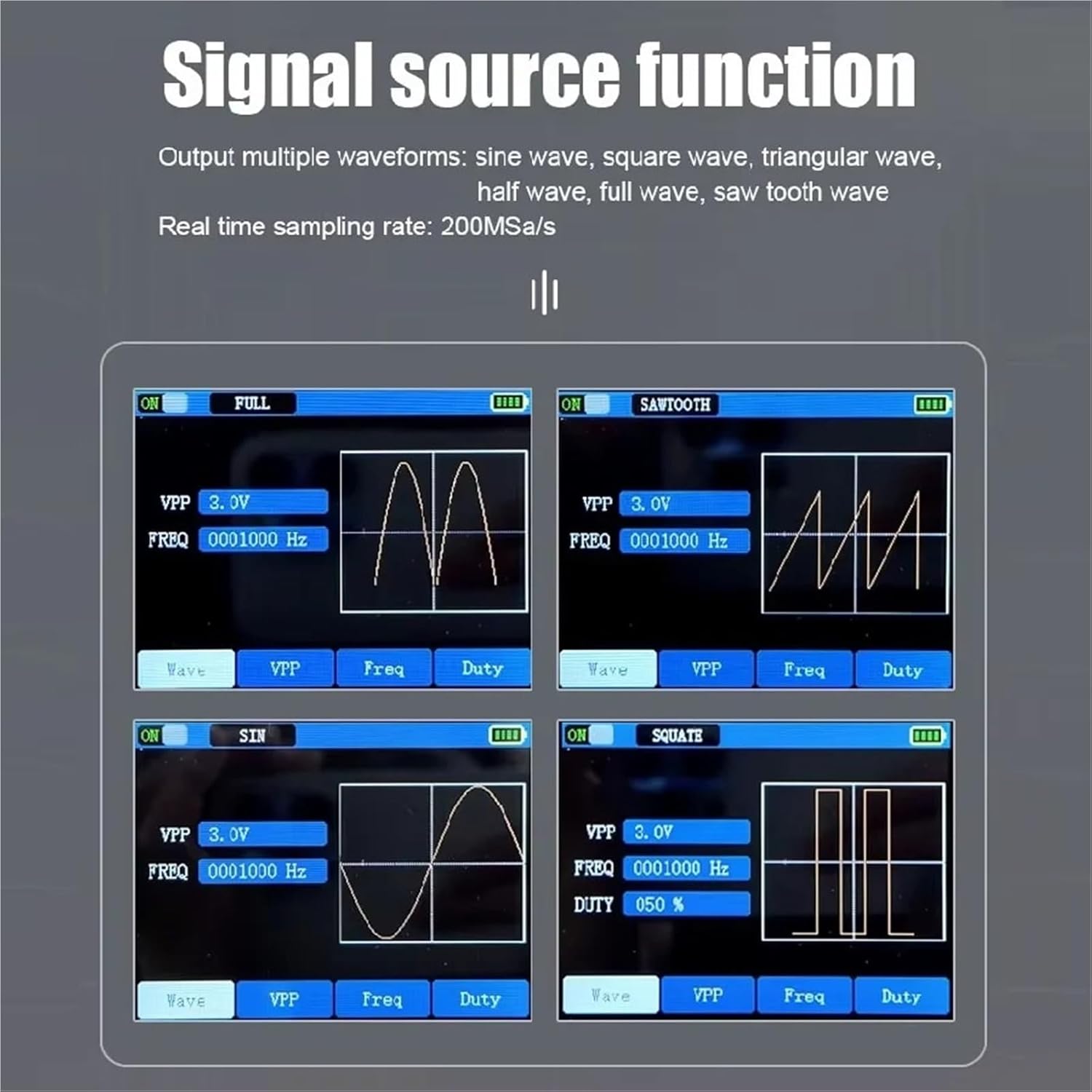

Digital Signal ProcessorsET852C 3-in-1 Oscilloscope Multimeter Signal GeneratorFeature:50Mhz Bandwidth 200M Sampling Rate Dual Channel Oscilloscope. Storage Depth 128K4.5-digit 25000 counts true RMS multimeter, intelligent measurement, overload protectionMultiple waveform signal generator, output up to 6 signal types of 5MHz. Frequency, amplitude adjustable3.2-inch color display, 320*240 screen ResolutionCome with 2 oscilloscope probes, built-in 2200mAh lithium battery, built-in double fuseSpecifications:Display:3.2-inch color display,320*240Power supply: 3.7V 2200mAh rechargeable lithiumProduct size: 181*89*40mmOscilloscopeBandwidth:50MHzReal-time sampling: 200MSa/sNumber of channels: Dual channelInput Coupling: AC,DCProbe Attenuation: x1,x10,x100<;150V, x10 gear300V,Record length: up to 128KbyteAutomatic: Cycle, frequency, peak to peak value, maximum value, minimum value, root mean square, duty cycle, average valueTrigger Mode: Automatic, normal, single time.Trigger edge: Rising edge, falling edgeAfterglow Mode: Minimum, 500ms, 1S, 10S, UnlimitedMultimeterDigital display: 25000 readings/capacitance(9999 readings)DC voltage: 25.000mV~1000.0VDC Current: 25.000mA~10.000AAC voltage: 25.000mA~750.0VAC current: 25.000mA~10.000AResistance: 250.00~250.0MCapacitance: 9.999nF~99.99mFFrequency:99.99Hz~999.9kHzOn-off Test: YesDiode tube: Open circuit voltage is about 3.2VSignal GeneratorSine wave: 1Hz~5MHzSquare wave: 1Hz~2MHzTriangular wave: 1Hz~2MHzHalf-wave: 1Hz~2MHzFull wave: 1Hz~2MHZSawtooth wave: 1Hz~500kHzPackage list:1 x Oscilloscope2 X Probes1 x Storage Bag1 x Test Leads1 x English User Manual1 x USB Cable==========Battery Included : YesHigh-concerned chemical : NoneDIY Supplies : ElectricalDigital Channels : 2Display Resolution : 320*240 PixelsBandwidth : 50MHzReal-time sampling : 200MSa/sChannel quantity : 2CHInput Coupling : AC,DCProbe Attenuation : x1,x10,x100Max input voltage : x1:150V, x10 : 300Vx1:150V, x10 : 300V : up to 128KbyteAutomatic display : 8 typesTrigger Mode : Automatic, normal, single timeTrigger edge : Rising, falling edgeAfterglow Mode : Minimum, 500ms, 1S, 10S, UnlimitedMinimum, 500ms, 1S, 10S, Unlimited : 25000 readingsCapacitance Digital display : 9999 readingsDC voltage : 25mV~1000VDC Current : 25mA~10AAC voltage : AC voltageAC current : 25mA~10AResistance : 250~250MCapacitance : 9.999nF~99.99mFFrequency : 99.99Hz~999.9kHzOn-off Test : YesDiode tube Open circuit voltage : about 3.2VSignal Generator Sine wave : 1Hz~5MHzSquare/Triangular/Half/Full wave : 1Hz~2MHzSawtooth wave : 1Hz~500kHz
