SG-002 4-20mA 0-10V Digital Analog Voltage Signal Generator 0-20mA Current Transmitter Debug Calibrator(with Battery)

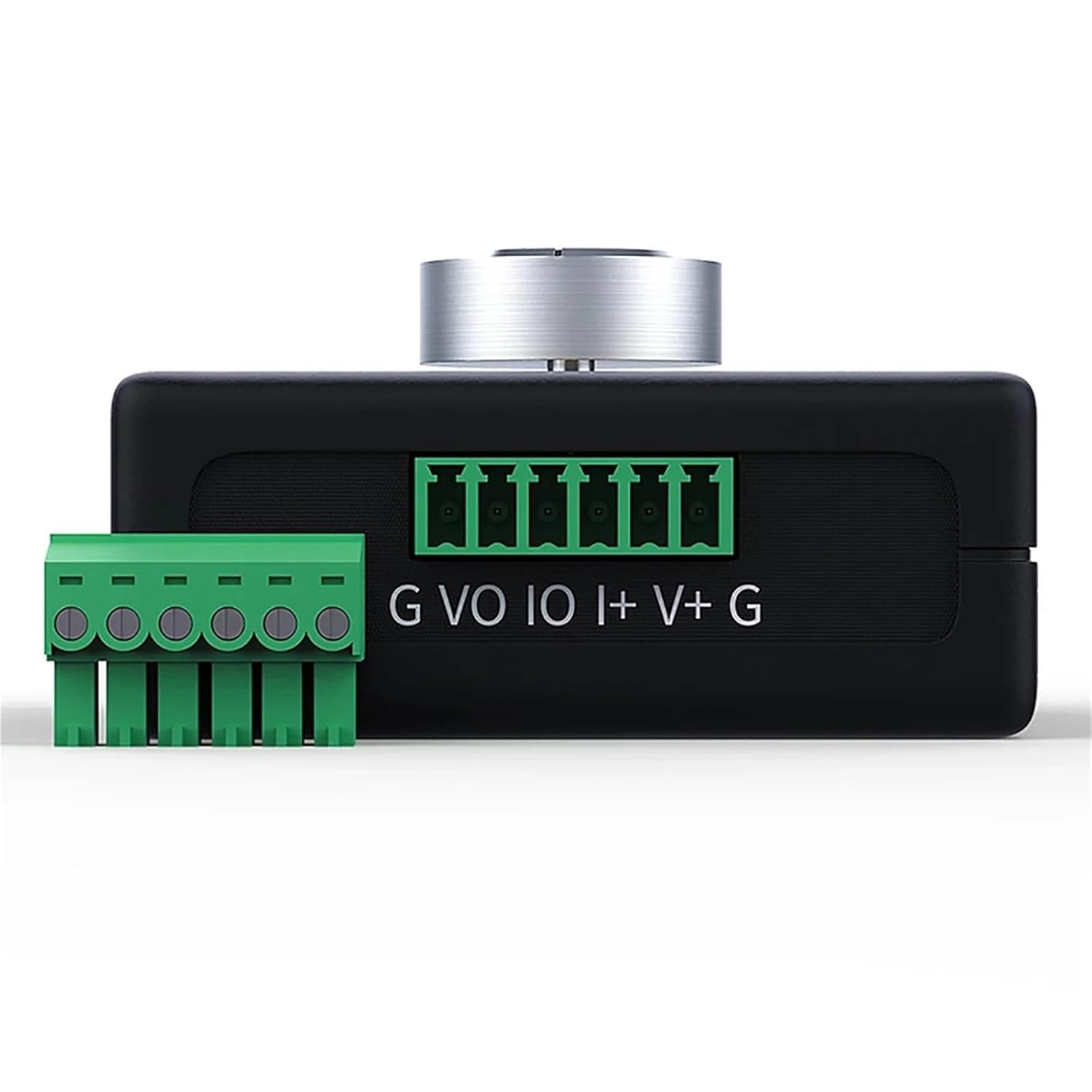

Digital Signal ProcessorsDescription:This handheld small voltage and current signal generator can be used in scientific research, laboratories, company factories, electrical maintenance, etc.Feature:The voltage and current signal generator is the most commonly used electrical test instrument for electrical engineers and technicians during onsite installation, commissioning, overhaul and maintenance of electrical equipment.Pluggable terminal blocks, safe and convenient wiring.4-digit high-definition digital tube, the display brightness is evenly adjustable (1-8 brightness).Aluminum knob cap, electroplating button, film, charging indicator, battery switch.Three power supply methods: external power supply, DC5V micro USB, built-in lithium battery (only when type 1 is selected, the built-in lithium battery charging mode can be used). As long as you work all the way, you can also connect at the same time.DC 15-30V external power supply, which can share the 24V power supply of and other equipment.MicroUSB universal interface, can be connected to mobile power, charger, computer USB port, etc.On the normal operation screen, save a voltage and current value, click the encoder to save, and after releasing the "OK" button, the screen displays "...", indicating that the save is successful. After restarting, the saved value will be displayed directly, and there is no need to adjust the parameters every time when starting up, which is very practical.Easy to carry and small in size, it is the best choice for on-site debugging.Specification:Material: ABSColour: blackVoltage output: 0-10VCurrent output: 0-22mAType: 1-2 (optional)Charging method: built-in lithium battery (only type 1), external power supply, DC5V micro USBBattery: 1*Lithium battery, 3.7V, 1100mAh (only type 1 included)Size: about 89*69*28mm/3.5*2.7*1.1inPacking size: about 90*70*38mm/3.5*2.8*1.5inWeight:Type 1: about 95g/3.4ozType 2: about 115g/4.1ozPackage Included: 1 x Voltage and Current Generator==========Battery Included : YesHigh-concerned chemical : NoneModel Number : SG-002DIY Supplies : ElectricalCertification : Display Size : 2.9 Inches & UnderVoltage Output : 0-10VCurrent Output : 0-22mAType : Voltage & Current Signal Generator
