FY2300H 25/30/40/50/60M Dual CH DDS Function Arbitrary Waveform Signal Generator/Source 250MSa/s Sweep/Frequency Meter Counter(FY2300H-50M,EU)

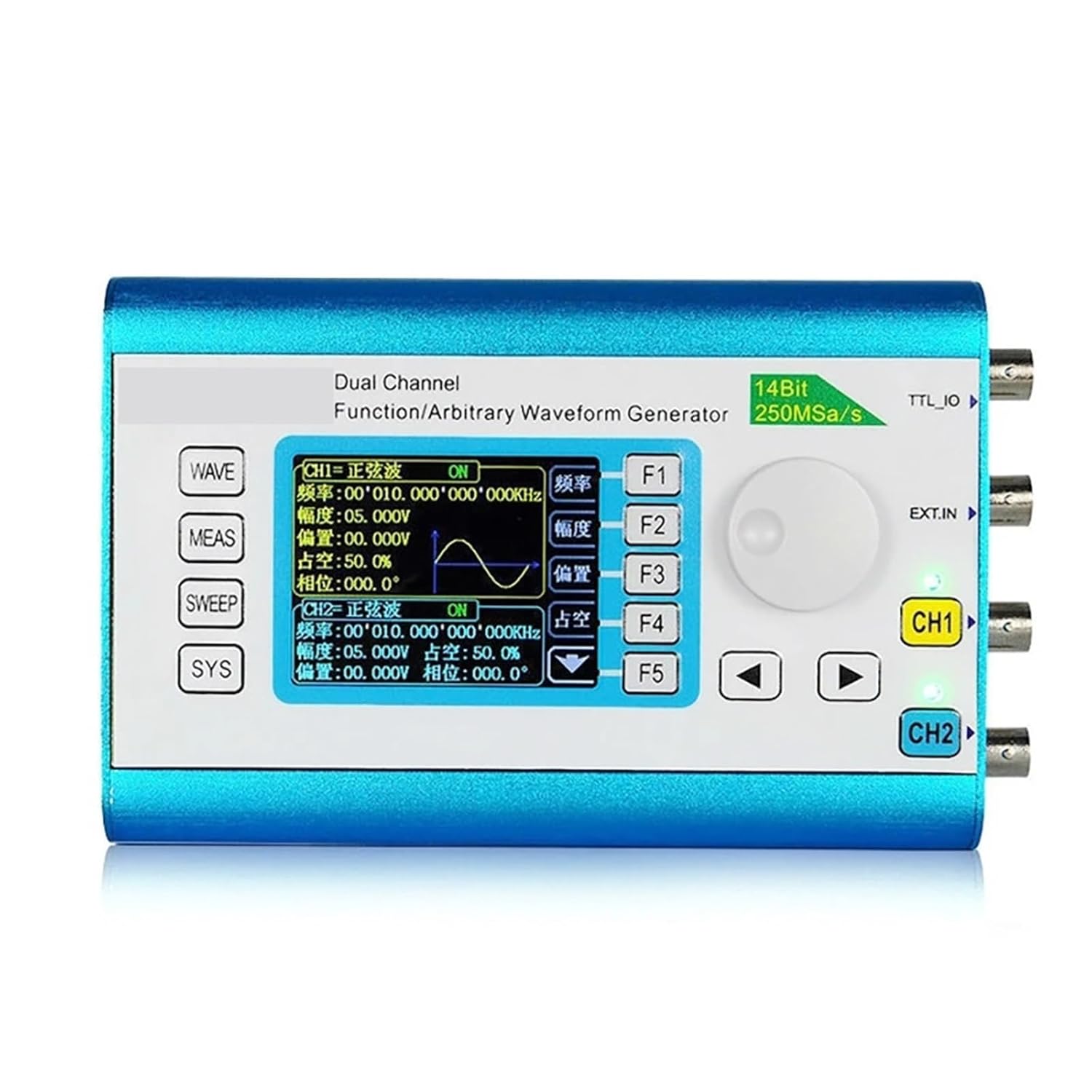

Digital Signal ProcessorsProduct Introduction:The FY2300H series dual channel function/arbitrary waveform generator is a portable, high-performance, cost-effective, and multifunctional signal generator that integrates functions such as function signal generator, arbitrary waveform generator, pulse signal generator, frequency scanner, counter, and frequency meter. The instrument adopts large-scale FPGA integrated circuits and high-speed MCU microprocessors, and the internal circuit uses high-precision active crystal oscillators as benchmarks, with high signal stability. The surface mounting process greatly improves the anti-interference and service life of the instrument. The instrument has completely independent dual DDS signals and TTL level outputs, which not only preset 31 commonly used waveform signals for users but also provide 16 sets of custom waveform storage space for users. This instrument realizes the perfect combination of ease of use, excellent technical indicators and many functional characteristics in signal generation, waveform scanning, parameter measurement and use, which can help users complete their tasks faster. It is an ideal testing and measuring equipment for electronic engineers, electronic laboratories, production lines, teaching and scientific research.FY2300H series dual channel function/arbitrary waveform generator has humanized Keyboard layout and instructions, providing users with an intuitive operating interface. The display interface adopts a 2.4 inch TFT color screen with a 320 * 240 high resolution, which can simultaneously display all parameters of two channels and prompt the current button function. The shortcut keys greatly simplify the complex operation process and greatly enhance the operability of the instrument. Users do not need to spend a lot of time learning and familiarizing themselves with the operation of the instrument to proficiently use it.The Main Differences Between FY2300H Series and FY2300 Series Are:1. The FY2300H series can output sine wave frequencies up to 60MHz (FY2300H-60M), square wave frequencies up to 25MHz, and triangular wave frequencies up to 20MHz. For detailed parameter indicators, please refer to the corresponding parameter tables of different models.2. The FY2300H series has upgraded its sampling rate to 250MSa/s, resulting in clearer high-frequency signal output contours;3. The FY2300H series adopts a 14 bit high-speed DA integrated circuit (not a DA scheme built by other manufacturers' resistor networks), with a waveform ladder as low as 0.3mV when outputting 5V. Instruments of the same range have the highest waveform delicacy;4. The FY2300H series upgrades the storage depth of each set of waveforms to 8192 * 14bits, which can accurately restore signal details;5. The phase resolution of the FY2300H series can 0.1 degrees, allowing users to more accurately control the delay of two signals;6. The FY2300H series adopts a power supply design scheme, eliminating the drawbacks of handheld instrument power supply noise interfering with small amplitude signals. (A small signal of 10mV still has perfect signal characteristics)TECHNICAL INDICATORS:PERFORMANCE TESTING:PACKAGE INCLUDED:1 x FY2300H Signal Generator1 x DC5V 2A Power Adapter1 x USB to DC5.5-2.1 Power Connection Cable1 x USB-B Data Cable2 x Q9 Clamp Wire1 x BNC-BNC Connecting Cable1 x CD (including computer software and electronic user manual)==========Battery Included : NoHigh-concerned chemical : NoneModel Number : FY2300HDIY Supplies : ElectricalCertification : Display Size : 3.0 - 4.9 InchesType 1 : Function/arbitrary waveform signal generatorType 2 : Frequency MeterType 3 : CounterChannels : Dual ChannelsWaveforms : Sine, Square, Triangle(Ramp), Arbitrary, Rise Sawtooth, Fall Sawtooth, Lorenz Pulse, Multitone, Noise, Cardiogram, Rapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, Step.Waveform Length : 8192 PointsSampling Rate : 250MSa/sVertical Resolution : 14 BitsSweep Type : Linear Sweep, logarithmic SweepSweep Objects : Frequency, Amplitude, Offset, Duty CycleSweep Time : 0.01S~999.99S/StepDisplay : 2.4 inch TFT Color Screen Resolution : 320 * 240Power Supply : DC5V±0.5VSize : 140mm (Length) X 95mm (Width) X 54.2mm (Height)Gross Weight : 750g
