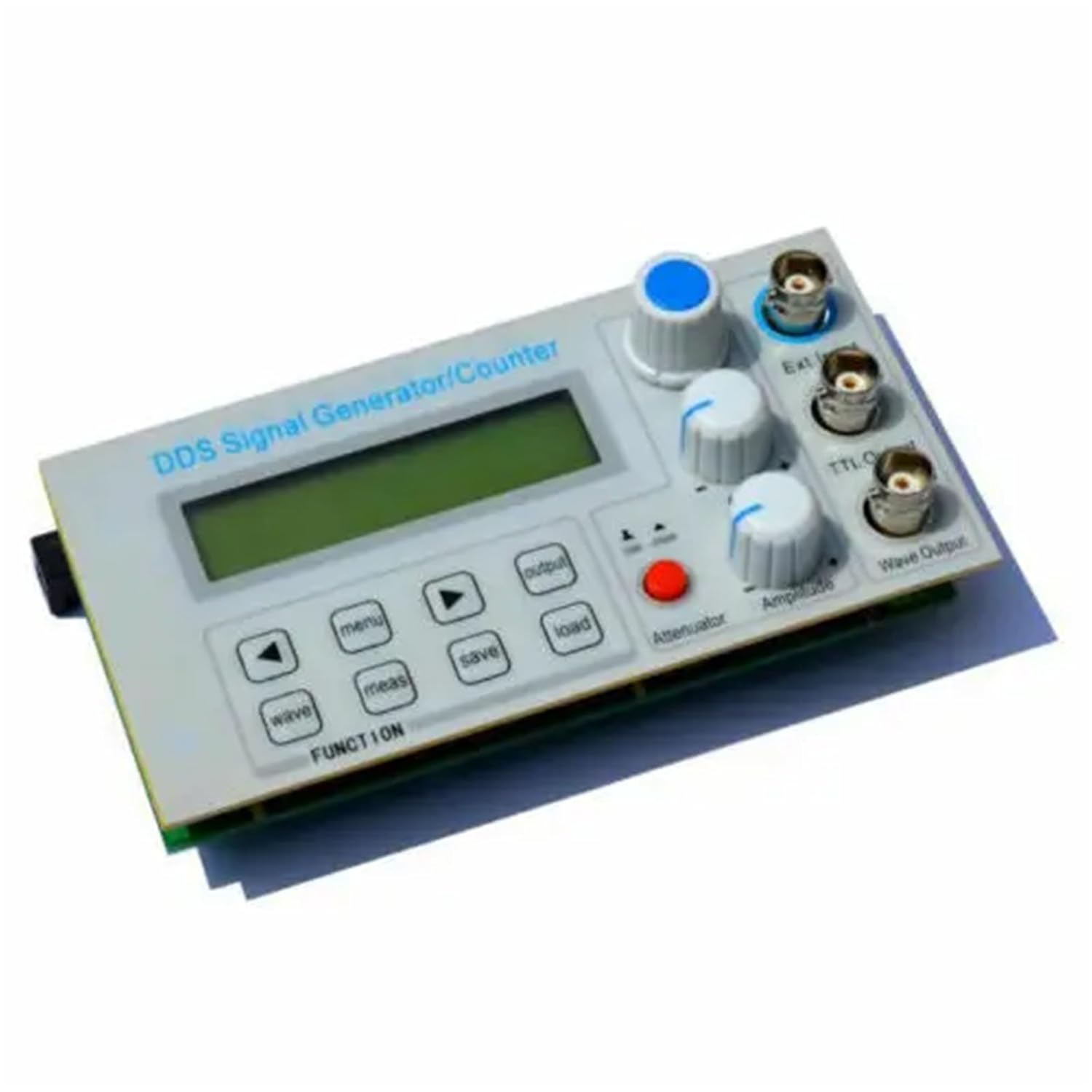

SGP1010S 10MHz DDS Function Signal Generator Frequency Counter Square Wave Sweep BNC TTL(EU)

Digital Signal ProcessorsDescriptionThe module use direct digital synthesis (DDS) technology and FPGA design. With wide voltage power supply (DC9V-DC40V), it can output Sine wave, Square wave (Duty cycle adjustable from 1% to 99%) and Triangle wave (include sawtooth wave). Maximum effective output is greater than 10Vpp with resolution of 0.01Hz (10mHz). Output amplitude and DC offset can be adjusted . It has two sweep functions, linear sweep and logarithmic sweep. Both the sweep range and the sweep time can be set up optionally. Meanwhile, it integrates other multiple functions into one, including synchronized TTL output, exterior frequency measuring and counter function. It has the advantages of convenient operation, high stability of the signal, one-key operation, BNC port output, output amplitude one-key Attenuation, Dual-channel TTL electric level differentially output, Embedded panel mounting structure, easy integration with customer products etc.. It's the ideal instrument for electronic enthusiasts, laboratories, production lines, teaching and scientific researchers. It can also be used as supporting module for industrial equipment. Recently, it has already widely used in teaching instruments and industrial control equipments. It is a highly cost-effective product!ParametersCompact size, multiple functions, easy to carry.Wide voltage DC power supply (DC9V-DC40V).Embedded panel mounting structure, easy to integrate with customer products.High frequency accuracy: ±5×10-6High resolution: 10 mHzAll range adjustable, digital setting.High waveform accuracy: The output waveform synthesis by calculating function.One-key controlled signal output. 3.3V TTL electric level output.Several different waveforms: Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave).Sweep function: Linear sweep, Logarithmic sweep. Starting and stop points can be set optionally.Save function: 10 sets of parameters defined by the users can be saved and loaded anytime.Operation mode: Button controlled, display, digital setting, knob adjusted .Output mode:Standard BNC port output.Highly reliable:Large scale integrated circuit, Surface mounting technology, reliable and . Frequency measurement:Frequency of internal / external signal can be measured through built-in 60MHz frequency meter.Main technology indexesSignal Output function Output waveforms Sine wave, Square wave (Duty cycle adjustable) and Triangle wave (include sawtooth wave)Output amplitude 10Vp-p (signal output, no load)(MAX)About 0.1Vp-p (MIN)Output impedance 51±10%(signal output)DC offset ±3V(no load)Frequency range 0.01Hz ~ 10MHz(SGP1010S)Resolution 0.01Hz(10mHz)Frequency accuracy ±5×10-6Frequency Stability ±2×10-6/3 HoursSine wave distortion 0.8% (reference frequency is 1kHz)Triangle linearity 98% (0.01Hz~10kHz)Rise and fall time of square wave 100nsSquare Wave Duty range 1%~99%(digital control mode)TTL Output function Frequency range 0.01Hz ~ 10MHz (SGP1010S)Amplitude >3Vp-pFan Out >20 TTL loadsCOUNTER function Counter Range 0-4294967295Frequency Meter Range 1Hz~60MHzInput Voltage Range 0.5Vp-p~20Vp-pSWEEP function Sweep mode Linear sweep, Logarithmic sweepFrequency setting range 0.01Hz ~ 2MHzSweep range fM1 (pre-set) to fM2 (pre-set)Sweep time 1s~99sOthers Display LCD1602 in EnglishSave and Load Parameter M0-M9(M0: default load)Size 135mm (Length)×65 mm(Width)×35mm(Height)Buzzer warning tone Can be turned On/Off by settingProduction technology Surface mounting technology, large scale integrated circuit, reliable and Operation feature Button-controlled, Knob-adjusted Conditions requirement Temp: 0~40 Humidity: 80%What's in the package1 x SGP1010S Signal Generator1 x Power Adapter1 x BNC test clip==========Battery Included : NoHigh-concerned chemical : NoneModel Number : SGP1010SDIY Supplies : ElectricalCertification : Display Size : 2.9 Inches & UnderFrequency range : 10MHz
