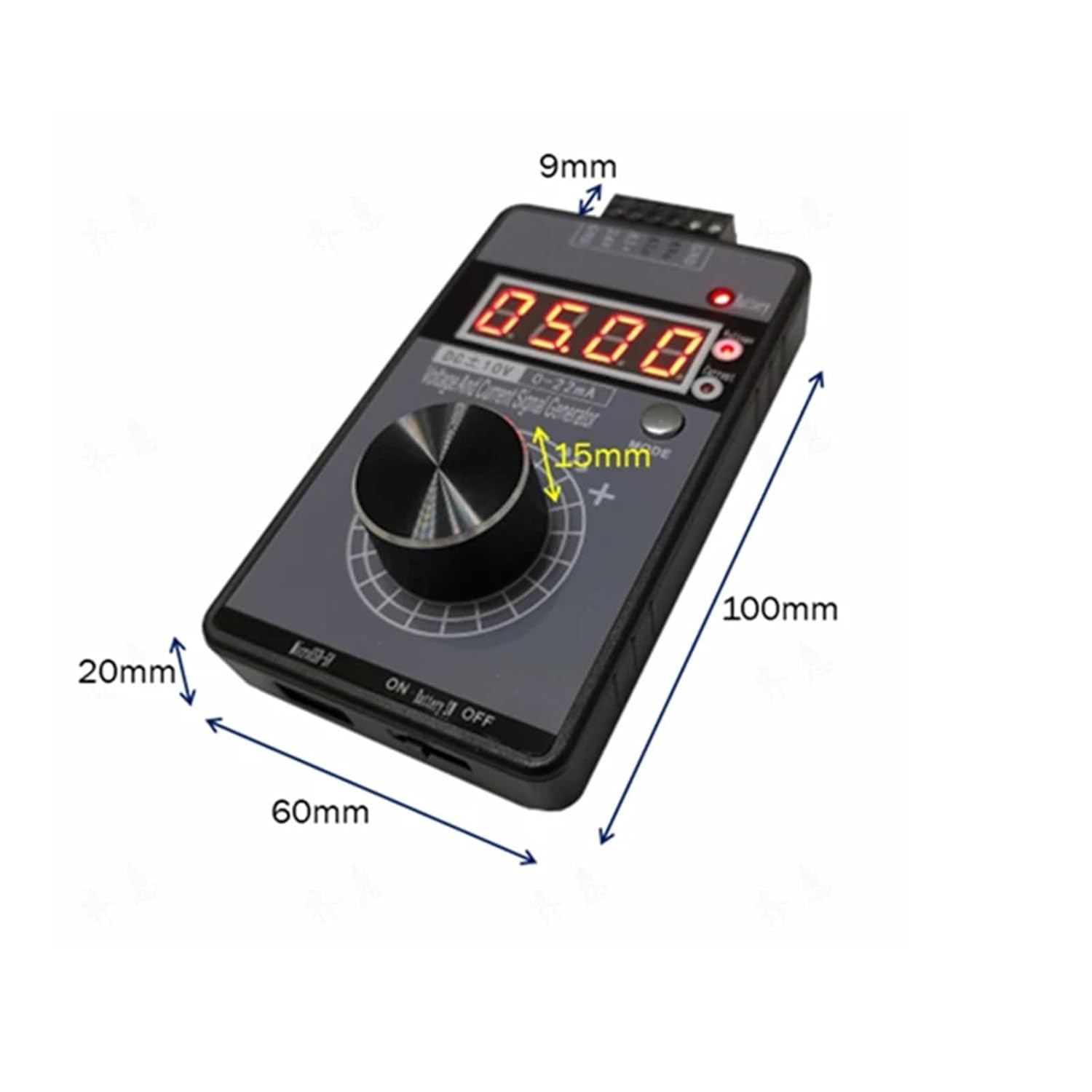

Digital 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter(Without Battery)
4.8 (122 items)
Limited Time Sale$61.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220366295 | Release Date | 2026/05/03 | List Price | $41.07 | Model Number | 220366295 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Digital Signal ProcessorsDescriptionThis list not include the battery.Recommended 3.7V lithium battery, thickness less than 8mm, XH2.54 2pin connectorFeatures3 power supply modes:DC15-30V/USB-5V/Lithium battery (not included);Voltage and current regulation can be switched with one button, independent wiring, and simultaneous output;Current output 2, 3, 4 wire passive, active fully compatible, can be connected to analog passive 2-wire pressure sensor, temperature sensor; can also be connected to active 3, 4-wire , inverter, servo drive, flow Valve, etc.;The output is short-circuit protected and the power supply is reverse-protected;Multiple output ranges: 0-3.3/5/10/2-10/1-5...0-20/0-22/4-20m...Multiple display modes: voltage and current/100.0% percentage/50.0H...Coarse adjustment and double adjustment mode, the adjustment number of turns can be set;Encoder knob 360 degree stepless adjustment, stable and 4-digit high-definition digital tube, two decimal points are adjusted with high precision, and the output can be calibrated;Pluggable terminal block, easy to install and carry;Power supply modesDC15V-30V external power supply, can share 24V power supply of and other equipment; Android (microUSB) universal interface, can be connected to charging treasure / charger / electricityBrain USB port, etc.;3.7V lithium battery power supply (this list not include battery);Specification:External power supply DC15-30V power 1W (not charging) / 5W (charging);External microUSB- 5V current 0.2A (no charge) / 1A (charge);Voltage output 0-10V adjustable, accuracy O.01V calibrated, maximum current 100mA, short circuit protection;The current output is adjustable from 0-22mA, the accuracy is 0.01mA, the current sampling resistor is 10-500 ohms, and it can be short-circuited.The digital tube displays 4 digits, two decimal places;Encoder knob 1 pulse number 20Wiring diagramPackage include1 x Signal generator==========Battery Included : YesHigh-concerned chemical : NoneModel Number : QH-VISG2-EDIY Supplies : ElectricalCertification : Display Size : 2.9 Inches & Under
- Digital Signal Processors
- Digital 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | XXNLUMJ |
| Item model number | XXNLUMJ |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
