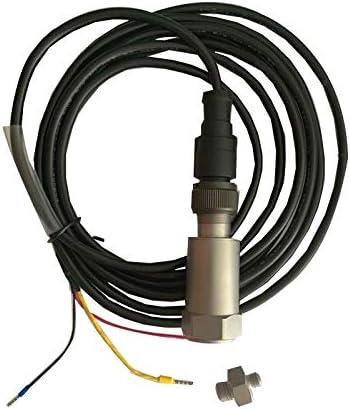

Taidacent DC24V Piezoelectric Vibration Sensor 4-20mA Vibration Transmitter Fan and Pump Analog Vibration Meter Connect DCS PLC (0-50mm/s)
4.0 (16 items)
Limited Time Sale$135.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220367653 | Release Date | 2026/05/03 | List Price | $90.00 | Model Number | 220367653 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The integrated vibration transmitter is based on the vibration sensor, adding a built-in precision circuit to realize the conversion of the vibration amount. Through the transmission corresponding to the 4-20mA output, it constitutes a high-precision vibration measurement system. The transmitter can be directly connected to DCS, PLC or other equipment is an ideal choice for measuring the vibration of factory equipment such as fans, motors, and water pumps. Technical parameters Frequency response: 10～1000 Hz Measuring range: 0-20g or 0～200mm/s or 0-8000um Signal output: 4～20mA (±0.05mA) Output impedance: ≤500Ω Working voltage: DC24V±10% Connection method: two-wire system Measuring direction: any direction Use environment: temperature -30℃～80℃ relative humidity ≤90% Dimensions: 24*56mm; (displacement type: 28*65mm) Installation specifications: M10*1.5 Weight: about 110g Installation Installation location: Install it on the vibration point, and fix the transmitter on the tested shell with screws.
- Frequency response: 10～1000 Hz
- Measuring range: 0-20g or 0～200mm/s or 0-8000um
- Signal output: 4～20mA (±0.05mA)
- Output impedance: ≤500Ω
- Working voltage: DC24V±10%
| UPC | 792323452757 |
|---|---|
| Brand Name | Taidacent |
| Part Number | ZC-4-20mAVibrationSensor-0104 |
| Manufacturer | Taida |
| Material Type | iron |
