Linear Stage, MPositioning PM100X-70 Precision Manual Linear Positioning Stage, 70 mm Travel Range
4.6 (73 items)
Limited Time Sale$221.27 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220407909 | Release Date | 2026/05/03 | List Price | $147.51 | Model Number | 220407909 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

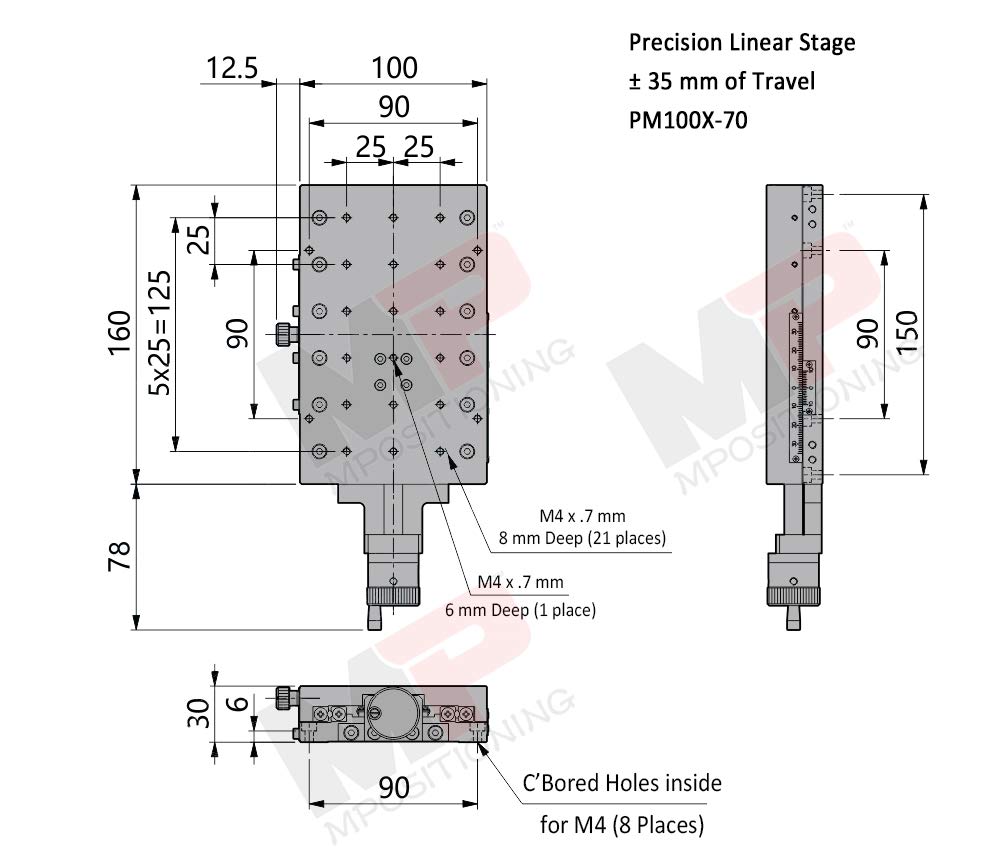

The Precision Manual Linear Stage is equiped with 2 sets of Crossed-Roller Bearing Slide Guides to achive the good performance and high load capacity (ups to 40 kg). The working platform size will be 100 mm x 160 mm and is tapped with 25 places of M4 x .7 threaded holes in the standard 25 mm offset hole pattern. Meanwhile, the design allows for XY and XYZ configurations as the application requirements you need.
- Precision Lead Screw with 1 mm of Pitch
- Large-area platform size in 100 x 160 mm
- Maximum load capacity ups to 40 kg, set up an XY or XYZ system easily
- Precision Cross Roller Bearing Slide Guides for a Stable Motion
| UPC | 707870513196 |
|---|---|
| Model | PM100X-70 |
| Brand Name | MPositioning |
| Part Number | PM100X-70 |
| Manufacturer | MPositioning Co., Limited |
| Material Type | Aluminum |
| Bearing Number | PM100X 70 |
| Item Thickness | 30 Millimeters |
| Item Dimensions | 9.37 x 4.43 x 1.18 inches |
