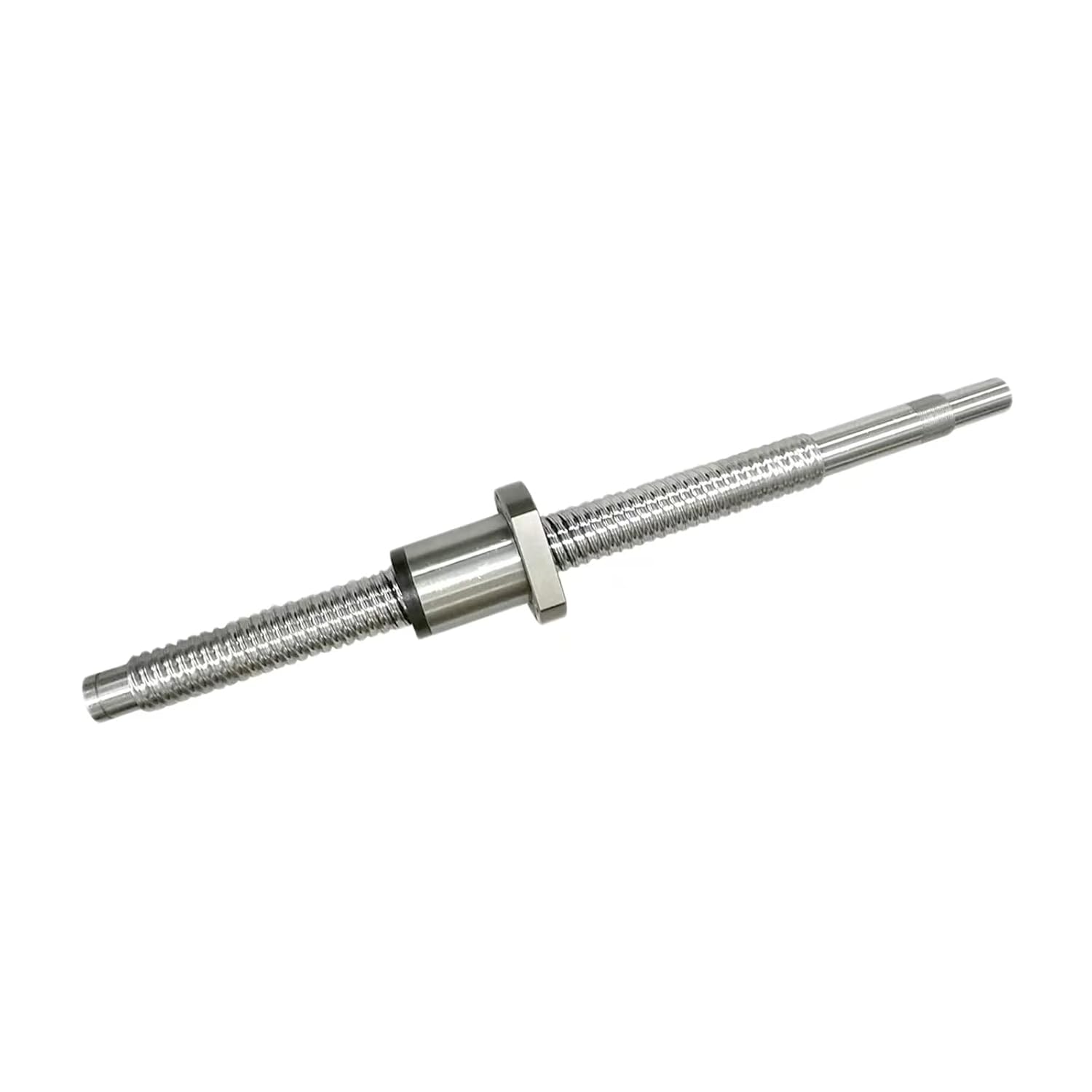

25mm Ballscrew SFS2510 Length 33.86 inch / 860mm High Speed, Silent and Anti Backlash Linear Motion Ball Screw, Standard End Machining + BK20 / BF20 Bearing End Support + Coupler/Coupling

Specifications: Brand: MssoommManufacturing Process: Rolled ThreadPrecision: C7 GradeMaterial: GCr15 steelModel: SFS2510This package includes:1PCS Ball Screw SFS2510 Length 33.86 inch / 860mm rod with standard end machining 1PCS SFS2510 Ballscrew Nut1PCS BK20 fixed bearing end support ( The bearing in it is deep groove ball bearing, if you need angular contact bearing, please tell us ), 1PCS BF20 floated end support1PCS flexible coupler or coupling ( The standard coupler hole for motor shaft is 14mm, if your motor shaft is other size, please tell us, we will manufacture it for you freeDetails:1. With ball motion, no crawling phenomenon of sliding motion.2. Positive and negative rotation, can provide left and right rotation butt, high-precision positioning.3. Absorb shock, compensations for radial, angular and axial deviations4. Clockwise and counterclockwise rotation characteristics are exactly the same.5. Hinged or stop-screw fixed coupling, can be processed according to customer requirements. Customizable lengths:We can provide any length that you want, and please let us know for what lengths are suitable for you then we will calculate the total costs for you as soon as possible.If you need to according to your drawings end machining, please tell us before order.Application: Ball screws are used in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack.Because its small friction drag, they are also used in machine tools, robots and precision assembly equipment.High precision ball screws are used in steppers for semiconductor manufacturing and so on.

• SFS2510 ball screw diameter: 25mm; Lead / Pitch: 10mm; Total length: 33.86 inch / 860mm; standard end processing + BK20 BF20 bearing end supports + flexible coupler or coupling. Precision C7 Grade
• The SFS ballscrew is with standard end machining, as a factory seller, if your end machining is not standard, please tell us; The default coupler bore for motor shaft is 8mm, if your motor shaft is other size, we can manufacture as your requirements, any customized needs, we will make it
• SFS ball screw with good dust prevention and lubrication, the friction coefficient is small, and even at high speed, quiet operation and silent motion can be achieved
• The SFS ball screw nut with zero backlash, make the ballscrew kit with more accurate positioning and longer service time
• As a professional seller, we can provide complete information of the products.（Contains CAD drawings and 3D modeling files）, you could contact us to get these
