RATTMMOTOR ZBX80 200mm Stroke CNC Linear Stage Motion Actuator X Y Z Axis Linear Slide Rail Aluminum Alloy Cross Sliding Table Linear Rail Guide SFU1605 Ballscrew+Nema23 57 Stepper Motor for CNC
4.3 (132 items)
Limited Time Sale$76.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220413363 | Release Date | 2026/05/03 | List Price | $50.80 | Model Number | 220413363 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【ZBX80-200mm load capacity】Material: Aluminum Alloy; Effective Stroke: 200mm/7.87 inch; Horizontally loadable: 80KG / 176.37 lb; Vertical carrying: 20KG / 44.09 Ib; Width: 80mm/3.15 inch.
- ✅【ZBX80 Size】Total length of the linear Motion Actuator including the stepper motor : 430mm/16.93 inch; Total length of the base plate without motor and bracket: 319mm/12.56 inch.

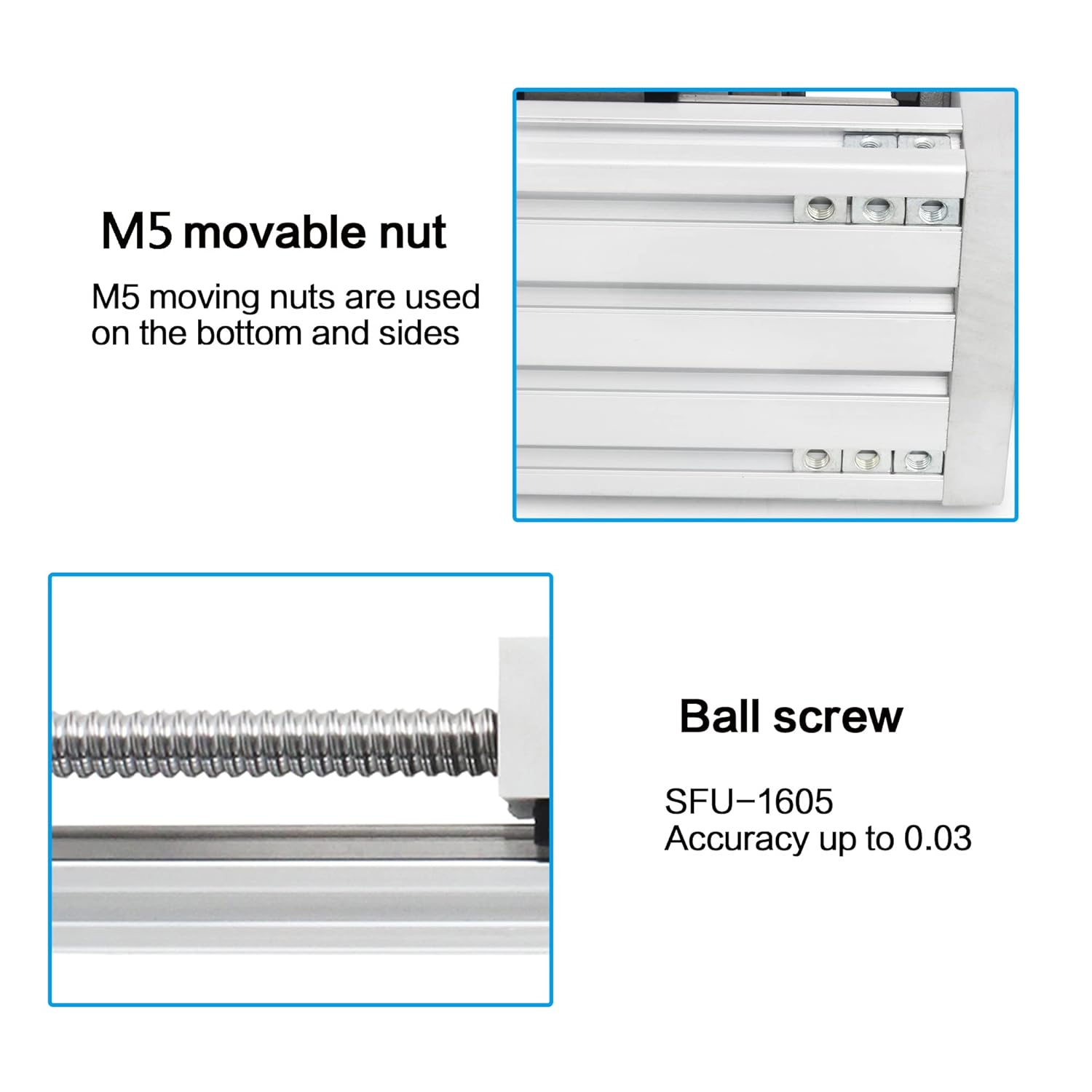

- ✅【High precision ballscrew screw】Bearing steel material, under the premise of guarantting the accuracy of the screw surface chrome-plated to increase the hardness of the screw and improve the load-bearing performance of the slide.
- ✅【Nema23 hybrid stepper motor】Motor size: 57 * 57mm * 56mm, Torque: 1.2N.m; Step angle: 1.8°; Current: 3A; Phase inductance: 3.8mH; Phase resistance: 1.1Ω; Shaft: single out shaft; Voltage: 12-36V (typical value 24V); Control mode: pulse control.
- ✅【Stepper motor bracket】Add the motor support seat, ensures the coaxiality of the fixed end and prolongs the service life of the motor, screw and coupling;Three-sided closed design effectively reduces dust and dirt from entering the interior of slide, reducing the frequency cleaning, prolonging its life.
- ✅【Coupling】Grade 9 high-strength bolts, good locking force, not easy to slip at the cut joints. R-type rounded corners to avoid concentrated stress at the joints; The tolerance of inner diameter is controlled within H7 precision, high concentricity, no gap transmission efficiency by 40%.
| Item Weight | 7.63 pounds |
|---|---|
| Manufacturer | RTM |
| Item model number | ZXHT80-200 |
| Package Dimensions | 19 x 6.8 x 5 inches |
