RATTMMOTOR DM556S Stepper Motor Driver+ZBX80 CNC Linear Stage Motion Actuator XYZ Axis Linear Slide Rail Aluminum Alloy Cross Sliding Table Linear Rail Guide 1605 Ballscrew (500mm with DM556S)
4.6 (129 items)
Limited Time SaleUntil the end
11
56
14
$103.93 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $173.22
Product details
| Management number | 220413786 | Release Date | 2026/05/03 | List Price | $69.29 | Model Number | 220413786 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【ZBX80-500mm load capacity】Material: Aluminum Alloy; Effective Stroke: 500mm/19.69 inch; Horizontally loadable: 80KG / 176.37 lb; Vertical carrying: 20KG / 44.09 Ib; Width: 80mm/3.15 inch.
- ✅【ZBX80 Size】Total length of the linear Motion Actuator including the stepper motor : 730mm/28.74 inch; Total length of the base plate without Motor and bracket: 619mm/24.37 inch.
- ✅【Nema23 hybrid stepper motor】Motor size: 57 * 57mm * 56mm, Torque: 1.2N.m; Step angle: 1.8°; Current: 3A; Phase inductance: 3.8mH; Phase resistance: 1.1Ω; Shaft: single out shaft; Voltage: 12-36V (typical value 24V); Control mode: pulse control.

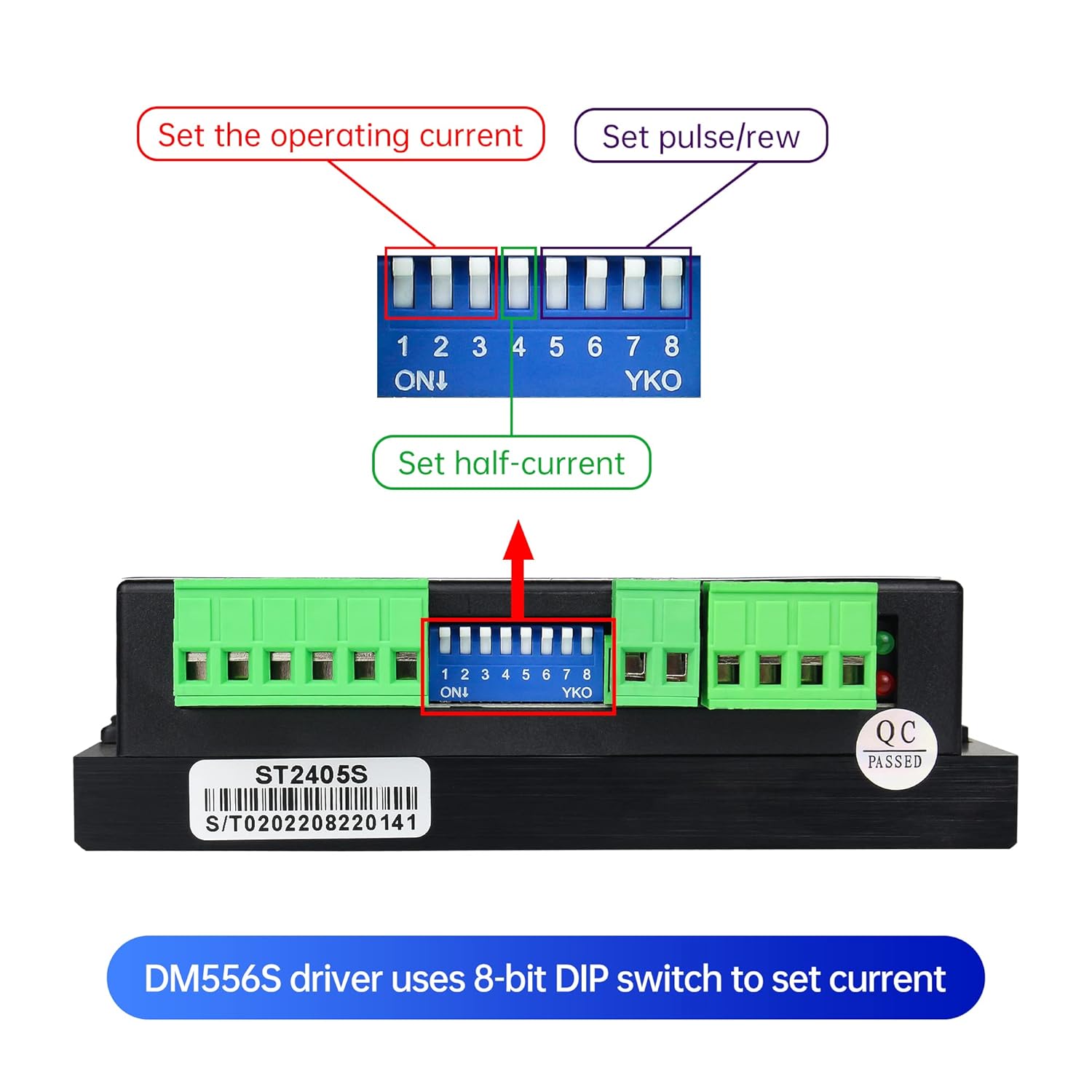

- ✅【DM556S stepper motor driver】Input Voltage: 20-50V DC It is recommended to use 24V DC; Output Peak Current: 1.0A-6A; Impulse response frequency up to 500KHz factory default 200KHz; Can drive 4,6,8-wire two-phase stepper motor,suitable for Nema 17,Nema23,Nema24 and Nema34 Stepper Motor.
- ✅【How to wiring the 4-lead wire】 Stepper motor's BLACK wire connects to driver's A+ port; Stepper motor's GREEN wire connects to driver's A- port; Stepper motor's RED wire connect to driver's B+ port; Stepper motor's BLUE wire connect to driver's B- port.
| Manufacturer | RATTMMOTOR |
|---|---|
| Product Dimensions | 28.74 x 3.15 x 3.07 inches |
