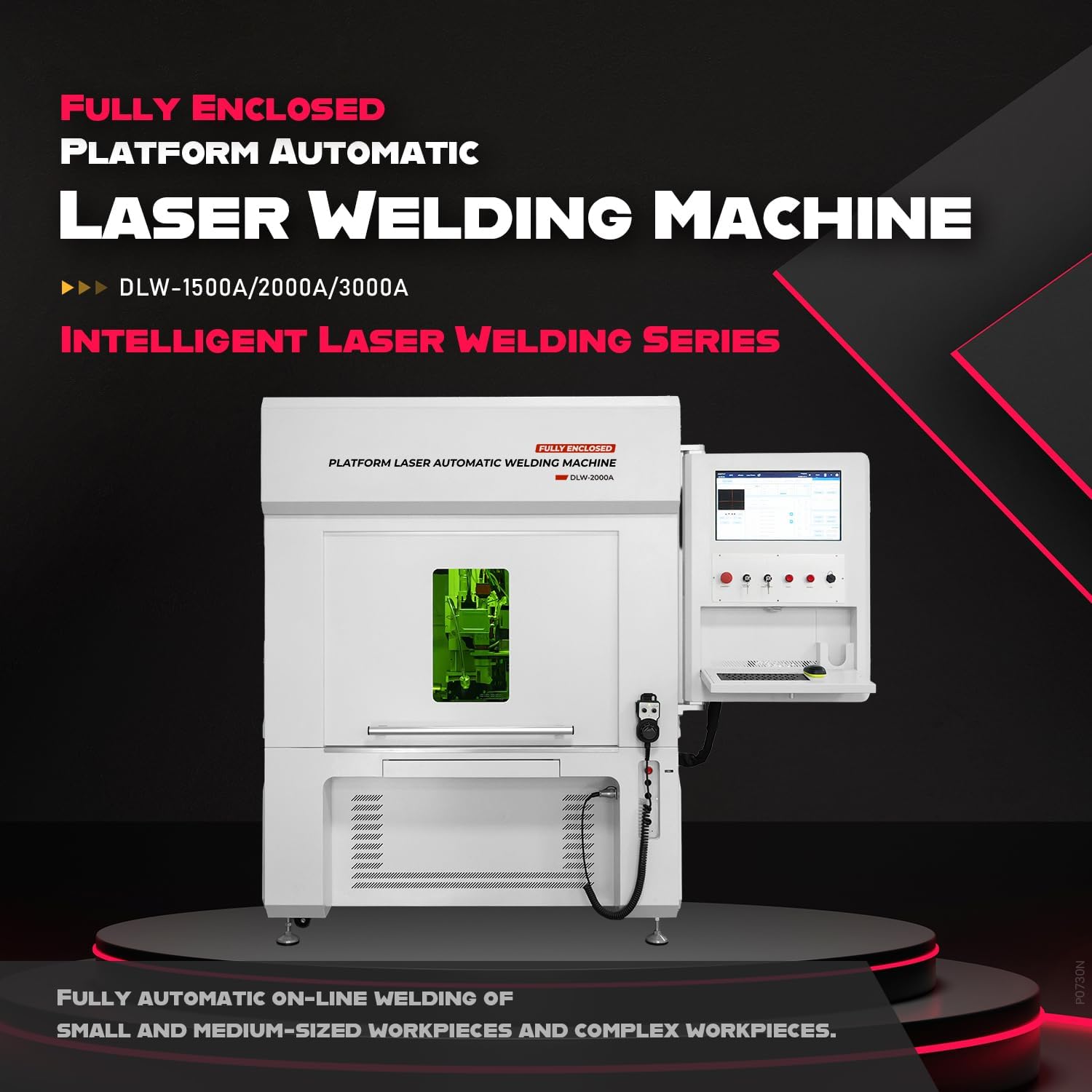

ZAC 1500W Platform Laser Welding Machine with 5-axis Linkage Fully Enclosed Fiber Metal Welder Intelligent Dual-Station Robotic Arm for Carbon Steel Zinc Stainless Aluminum Nickel, Class 1, 0.39mW

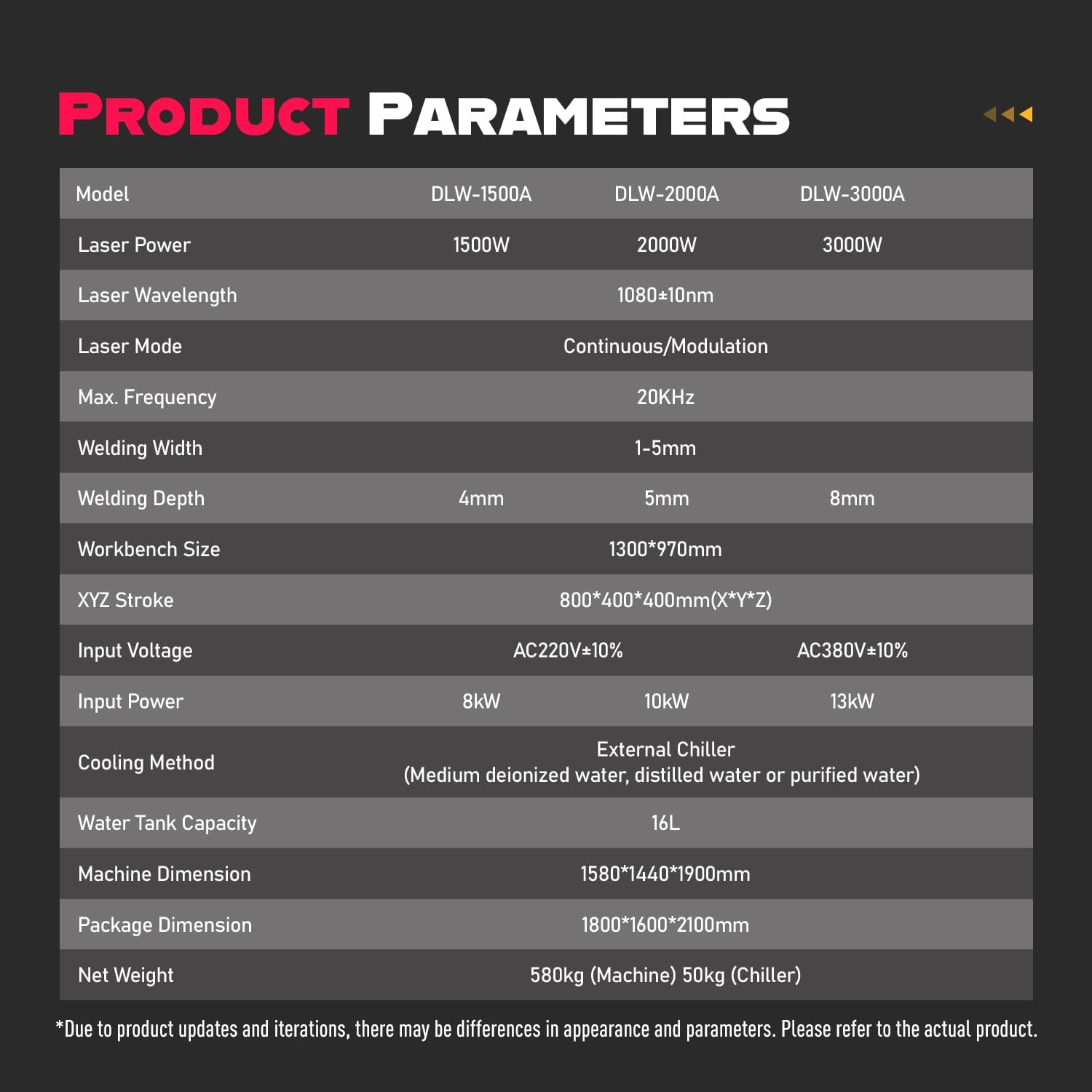

The fully automatic laser welding machine combines a full range of CNC systems with teaching programming for quick setup and operation, making it ideal for high-efficiency industrial laser welding. Featuring integrated visual recognition, it enables one-click quick positioning and automatic weld recognition and calibration, significantly improving workpiece yield rates. Designed for seamless on-line linkage automation, this fully enclosed welding platform integrates with assembly line communication and dual-station robotic arm changeover for maximum productivity Product Parameters: Model: DLW-1500A/DLW-2000A/DLW-3000A Laser Power: 1500W/2000W/3000W Laser Wavelength: 1080±10nm Laser Mode: Continuous/Modulation Max. Frequency: 20KHz Welding Width: 1–5mm Welding Depth: 4mm/5mm/8mm Workbench Size: 1300*970mm/51.2*38.2in XYZ Stroke: 800*400*400mm(XYZ)/31.5*15.75*15.75in Input Voltage: AC220V±10%(DLW-1500A/DLW-2000A)AC380V±10% Input Power: 8kW/10kW/13kW Cooling Method: External Chiller (Medium deionized water, distilled water or purified water) Water Tank Capacity: 16L Machine Dimension: 1580*1440*1900mm/62.2*56.7*74.8in Package Dimension: 1800*1600*2100mm/70.9*63*82.7in Net Weight: 580kg/1279lb (Machine) 50kg/110lb(Chiller) Application: Fully Enclosed Platform Automatic Laser Welding Machine is widely used in stainless steel, mold steel, carbon steel, aluminum, zinc, nickel and other materials. Suitable for welding new energy battery modules, complex small and medium-sized metal parts, and precision industrial components.

• Product Introduction: Automatic laser welding machines enable fully automated online welding and are suitable for small to medium-sized workpieces and complex workpieces. Model: DLW-1500A, Laser Wavelength: 1080±10nm, Laser Mode: Continuous/Modulation, Max. Frequency: 20KHz, Welding Width: 1–5mm, Welding Depth: 4mm, Input Voltage: AC220V±10%, Input Power: 8kW, Cooling Method: External Chiller, Water Tank Capacity: 16L, Laser Level: Class 1. Output Power: 0.39mW

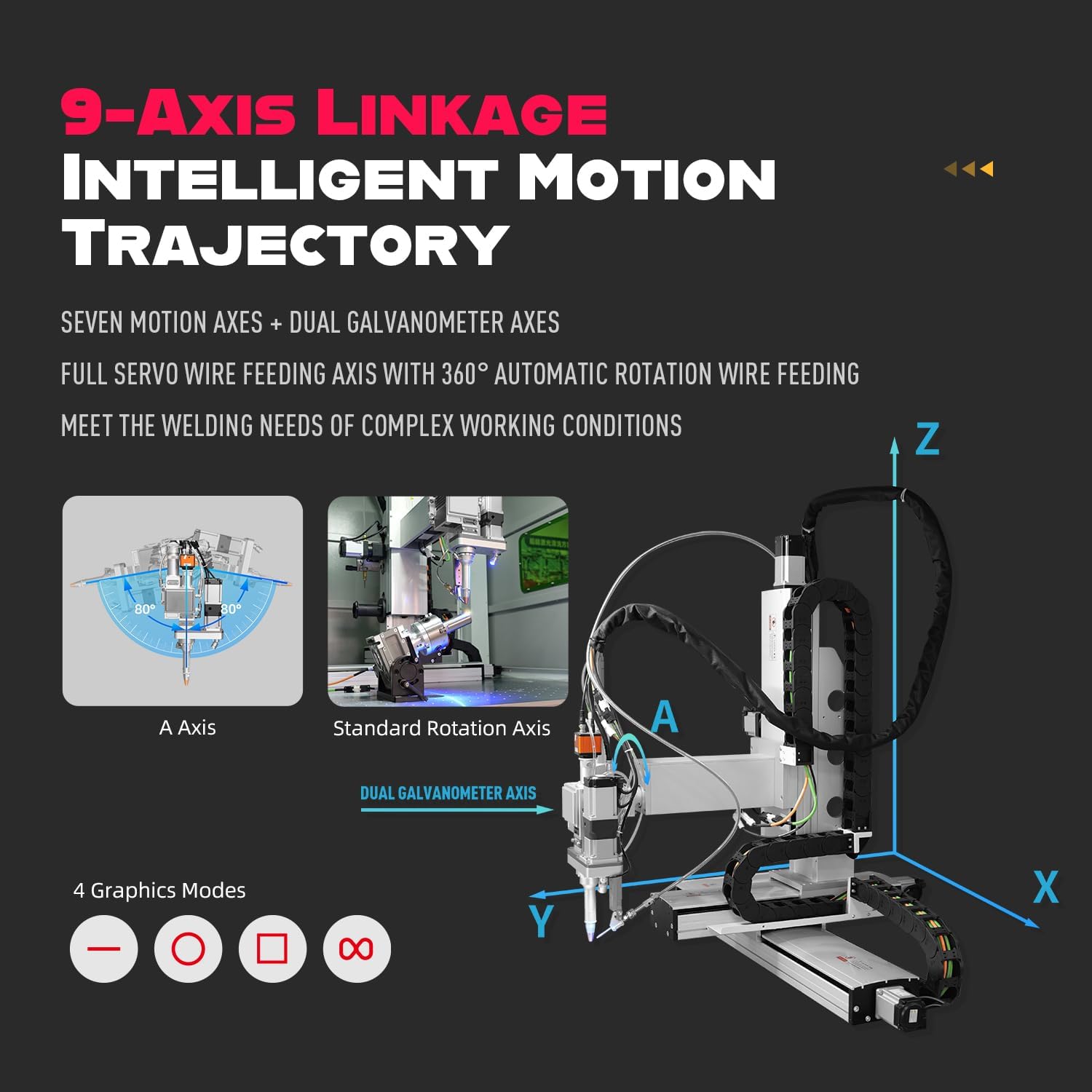

• Intelligent CNC Laser Welding: This automatic laser welding machine features full-range CNC system control, including 5 motion axes(XYZ axis movement + gun head rotation + rotary) and dual galvanometer scanning. It delivers stable and precise welds, even for complex and irregular workpieces, improving productivity in industrial welding operations
• Visual Recognition & Smart Teaching: Integrated visual positioning system allows one-click weld point selection by mouse and automatic weld calibration, reducing manual setup time. Automatic replenishment of abnormal broken wires more flexible operation. With DXF file import, one-click generation of welding path. Teaching programming, multiple process library designs, one-time setting, call at any time. Light output width 0–20mm welding/cleaning two-in-one, enabling pre- and post-weld treatment
• Dual-Station Robotic Arm & Automatic Changeover: The fully enclosed laser welder is equipped with a dual-station robotic arm, the system enables continuous welding with automatic station switching. Perfect for on-line assembly line communication. Optional laser ranging can ahcieve automatic focus, batch welding, stable process. This platform welder enhances processing speed and efficiency while supporting batch production, is ideal for customizable industrial welding tasks
• Service & Rigorous Industrial Testing: 1 year warranty for the whole machine, 2 years for the laser source. Our professional technical team offers remote assistance for operation issues, lifetime online technical support. Built with a complete steel plate ground workbench and an automatic safety door, this customizable laser welder passes multiple industrial-grade tests, guaranteeing stable, safe, and long-lasting performance. If you have any question, please contact us via Amazon
