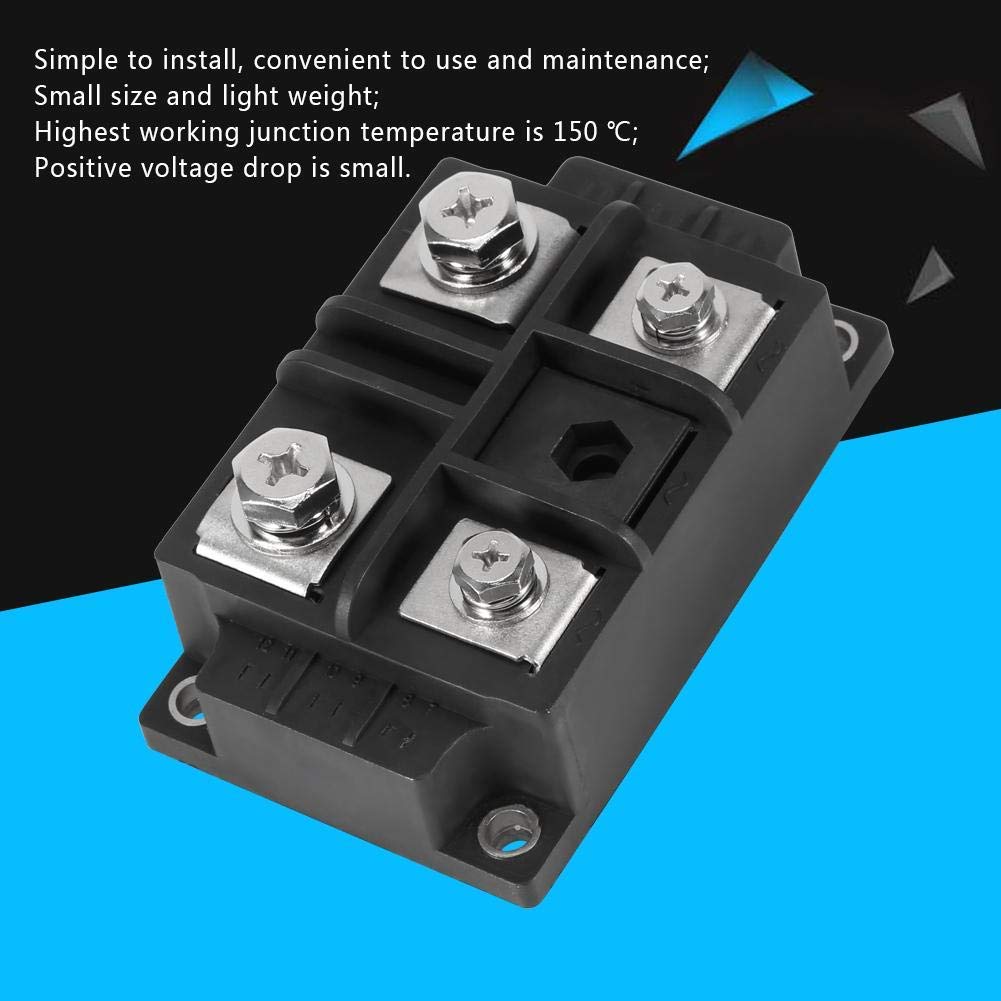

300A 1600V Single Phase AC to DC Diode Bridge Rectifier, High Power Rectifier Silicon Full Diode Bridge Rectifier Module, 110 * 67 * 40mm

Features: bridge rectifiers used for conversion of an alternating current input into a direct current output.Well welded structure with good temperature and power cycle ability ensures a more .Designed for single phase rectification, output DC current is 300A.It has a large over-current capacity, good heat dissipation and low voltage drop.This high power bridge rectifier can be widely used for power supply.Specifications:Output Current: 300AThree Phase Input Positive Average Current: 100ARepetitive Peak Reverse Voltage(VRRM): 1600VRepetitive Peak Inverse Current(IRRM): 10mAIsolation Voltage(Viso): 2500VACVTM: 1.5V: 300APhase: Single PhaseTerminals: 4Max. Junction Temperature: 150℃Size: 110*67*40mm / 4.33*2.63*1.57"Quantity: 1Package Includes:1 x Bridge Rectifier

• bridge rectifiers used for conversion of an alternating current input into a direct current output
• Well welded structure with good temperature and power cycle ability ensures a more
• Designed for single phase rectification, output DC current is 300A
• It has a large over-current capacity, good heat dissipation and low voltage drop
• Output Current: 300A. This high power bridge rectifier can be widely used for power supply.
