Agastat 7022Af Time Delay Relay 7022Af
4.0 (116 items)
Limited Time Sale$438.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221599396 | Release Date | 2026/05/03 | List Price | $292.00 | Model Number | 221599396 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

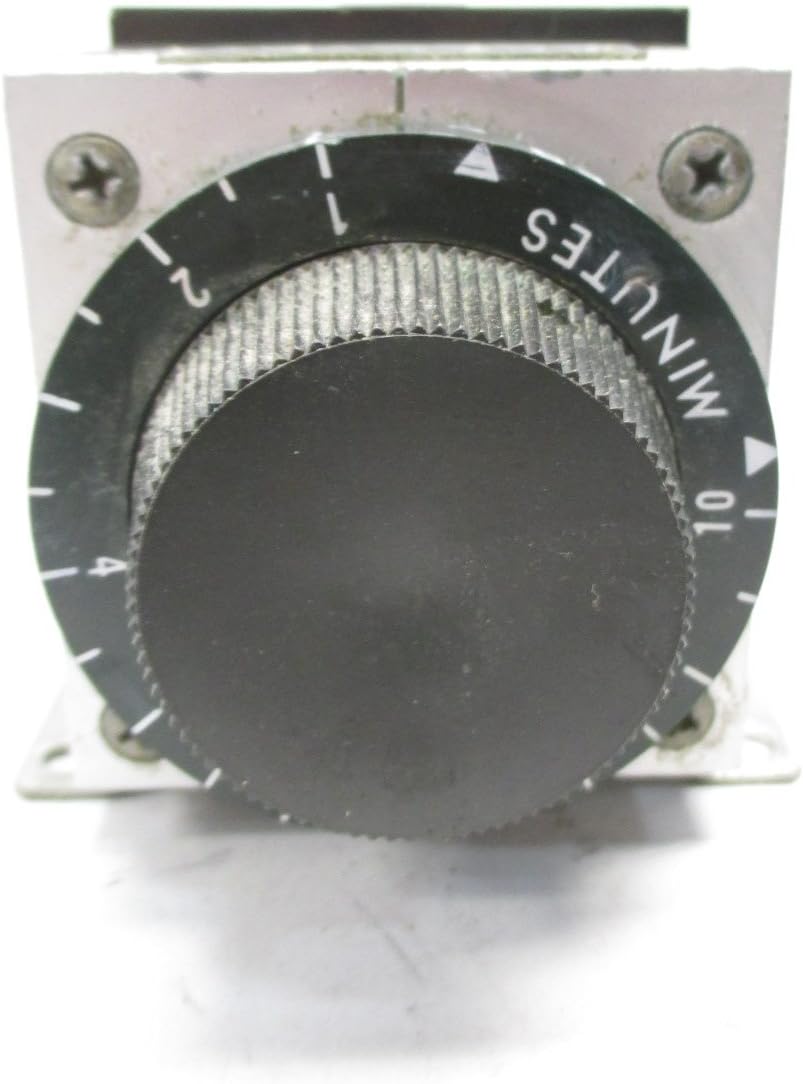

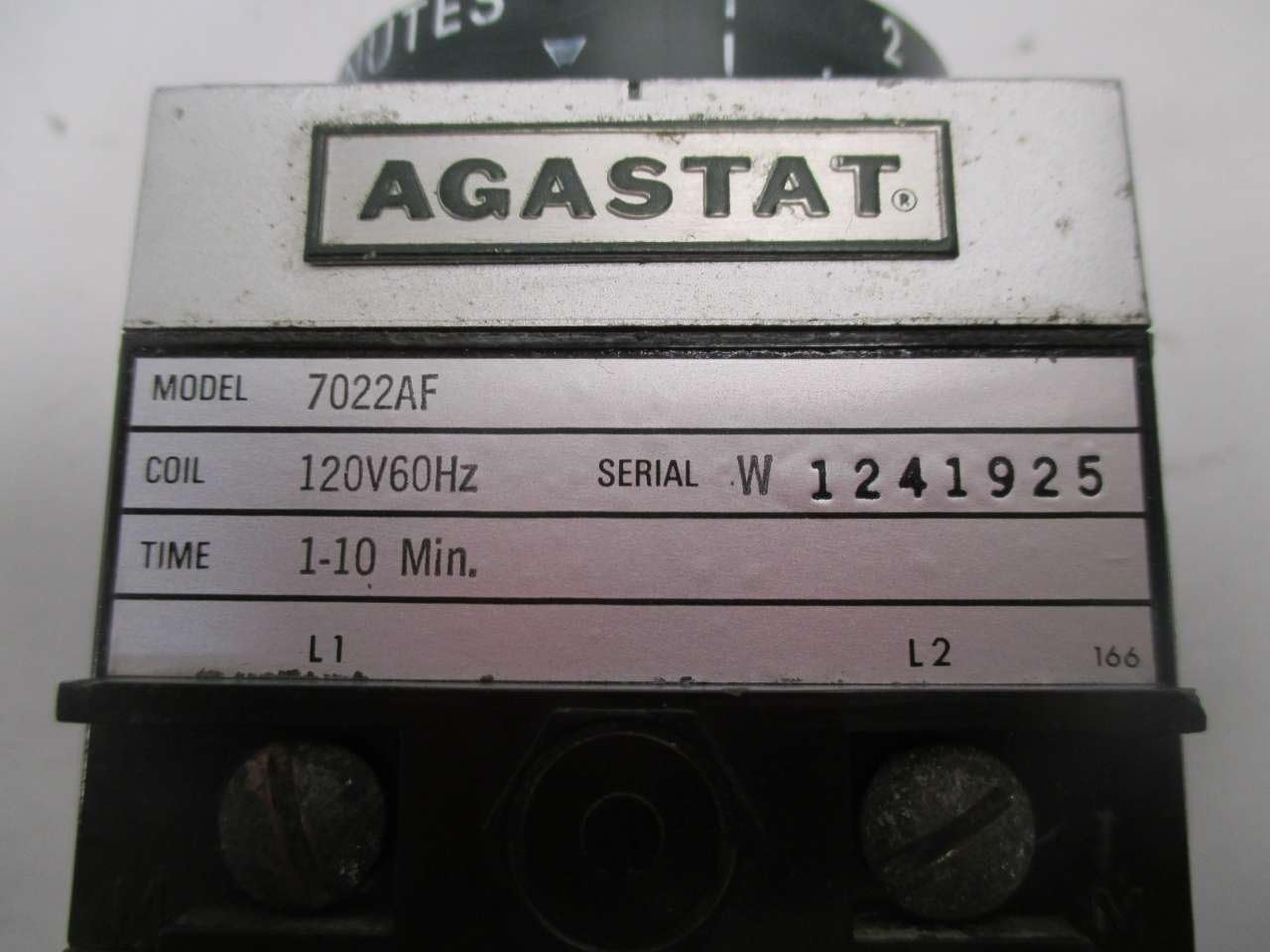

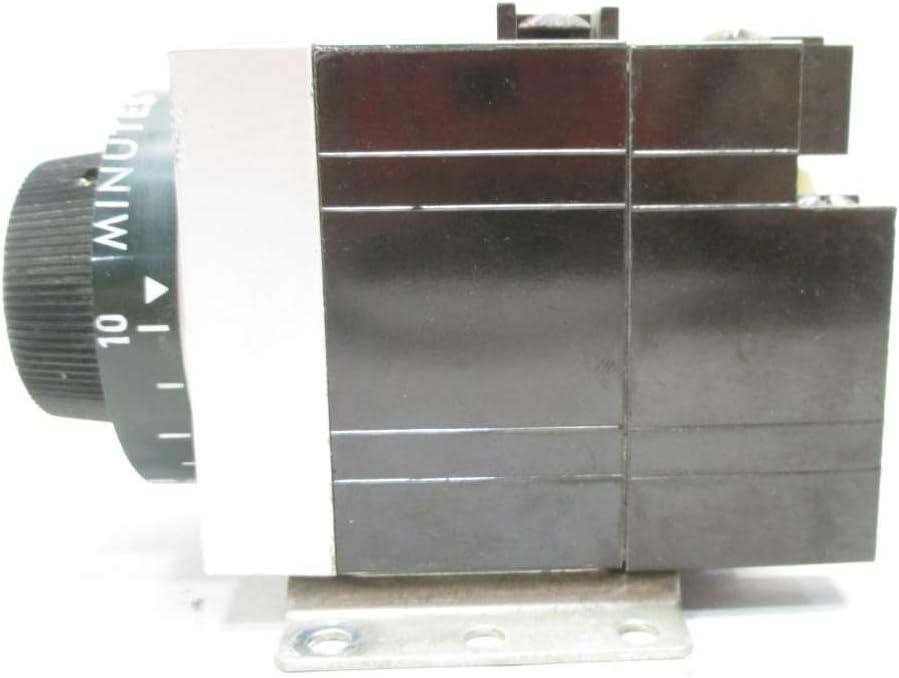

New, Agastat, 7022AF, Time Delay Relay, 120V60hz, 1-10Min The 7022AF is an Electro-pneumatic Timing Relay with AC coil. This 1-1423162-0 panel mount electro-pneumatic timing relay has 2-form-C (DPDT) contacts, knob adjustable and quick connect terminals. It features off-delay (delay on dropout) operation with 1 to 10 minute timing range in linear increments. Oversize adjustment knobs, serrated with high-resolution markings visible from all angles makes the timer easy to set timers. Inherent transient immunity. Auxiliary timed and instantaneous switches can be added for greater switching flexibility. Modular assembly, timing head, coil assembly and switch block are all individual modules with switches field-replaceable.
- Surplus Item
- Packaging has wear, or may be missing
- Unused Item
| Model | 7022AF |
|---|---|
| Brand Name | Agastat |
| Item Weight | 0.95 Kilograms |
| Part Number | 7022-AF |
| Coil Voltage | 120 Volts |
| Contact Type | Dpdt |
| Manufacturer | AGASTAT |
| Mounting Type | Panel Mount |
| Connector Type | Quick Connect |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Contact Current Rating | 7022 Amps |
| Maximum Switching Voltage | 120 Volts |
| Minimum Switching Voltage | 120 Volts (AC) |
