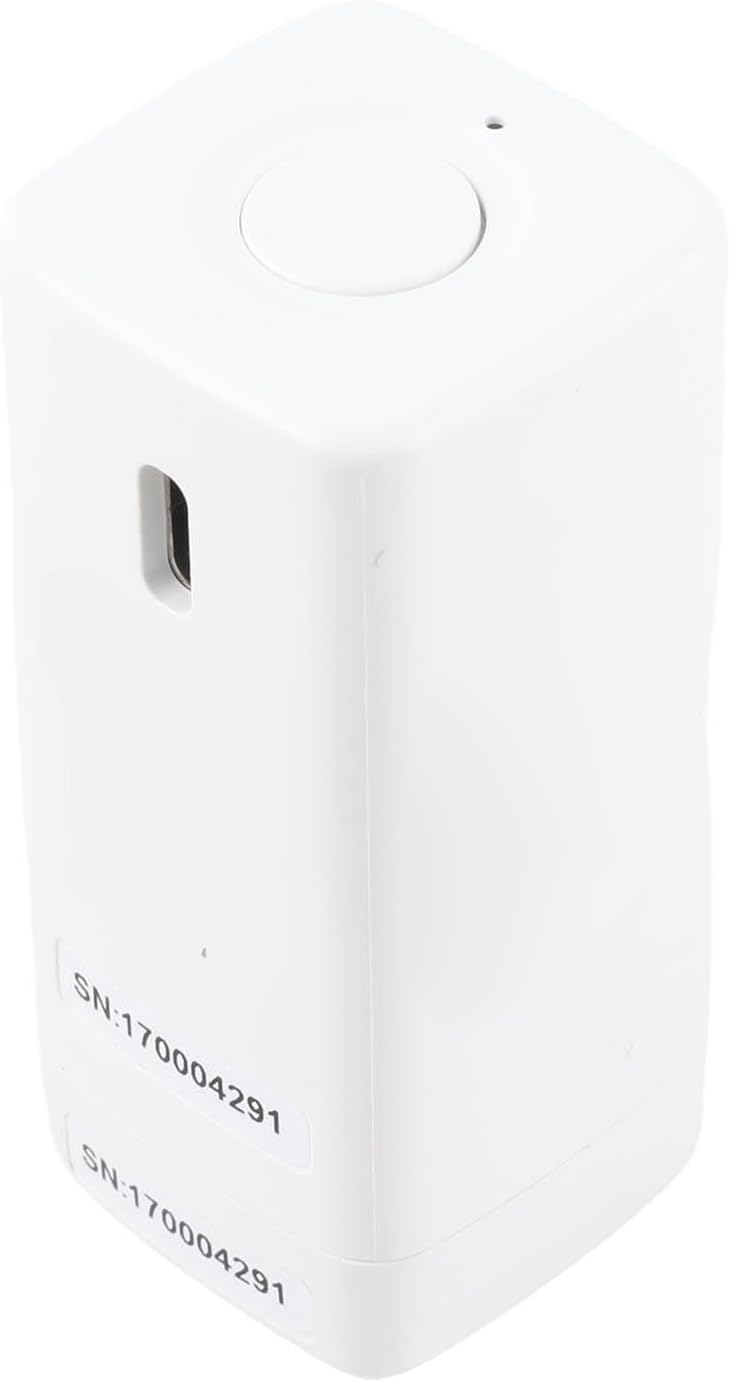

LS170 Digital Colorimeter, Portable Color Meter Tester Smart Color Difference Analyzer

Spec: Item Type: Colorimeter Model: LS170 Material: ABS Battery: 1 x rechargeable lithium battery 3.7V 700mAh, a single full can continuously measure 10,000 times (Battery Included) Application: Chroma sampling, color difference detection and comparison Illumination Mode: 45/0 (45° circular illumination, 0° reception) Lighting Source: Full spectrum LED light source Measuring Caliber: Approx. 8mm / 0.3in Measurement Conditions: Light source D65, field of view 10° Measuring Time: About 1s Color Space: CIE Lab, Luv. LCh, Yxy. CMYK, RGB, Hex Color Difference Formulas: △E x ab, △E x 94, △E x cmc (2:1), △E x cmc (1:1) △E x 00 Repeatability: Standard deviation △E x ab, within 0.03 (measurement condition: after warm up correction, the average value of 30 measurements on the whiteboard at an interval of 3s) Size: Approx. 31.7 x 31.7 x 70.4 mm / 1.2 x 1.2 x 2.8 in Charging Interface: Type C Data : APP, Operating Temperature Range: 0~45℃, 0~85%RH (non condensing) Storage Temperature Range: -25℃~55℃ 0~85%RH (no condensation) Color Card Matching Accuracy rate: >90% Color Threshold: Can be set Compensation Optical Paths: Built in QC Inspection: √ Data Sharing: √ Package List: 1 x Colorimeter (Battery Included) 1 x Data Line 1 x Storage Bag 1 x Cleaning Cloth 1 x Calibration Report 1 x Manual

• [Qc Detection Function] Set color difference thresholds and utilize various color difference formulas and spaces for comprehensive color measurement.
• [] The ls170 digital colorimeter ensures precise color matching with multiple electronic color cards, achieving over 90% matching accuracy.
• [Color Sharing] Easily import and export color data for sharing via wechat, qq, or email, making it simple and convenient for users.
• [Color Difference Contrast] Enhance color measurement capabilities through the mobile app, offering rapid qc detection and expanded functionality for color difference contrast.
• [Stable Value] Equipped with compensation light paths and a rechargeable lithium battery for long-term calibration and 10,000 continuous measurements.
