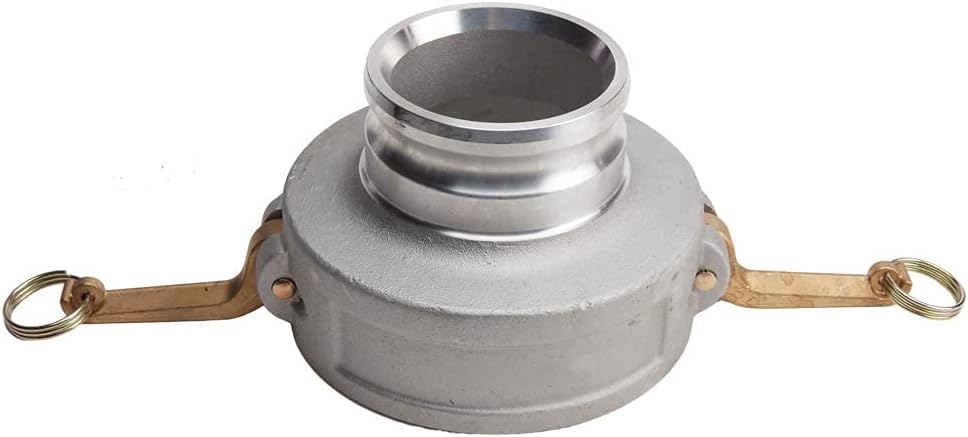

Aluminum 6 inch Female Camlock x 4 inch Male Camlock

Global jump size aluminum 6 inch female camlock coupler to 4 inch male camlock coupler. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Connections: The female side of this adapter will only connect to a 6 inch male camlock. The male side of this adapter will only connect to a 4 inch female camlock Female Camlock Dimensions:Size - 6.00Female Inside Diameter - 6.970Male Camlock Dimensions:Size - 4.00Male Outside Diameter - 4.75How it works:To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.

• Aluminum Fittings
• Camlock Size - 6 inch Female
• Camlock Size - 4 inch Male
• Max Pressure - 75 PSI
• Camlock Gasket Included
