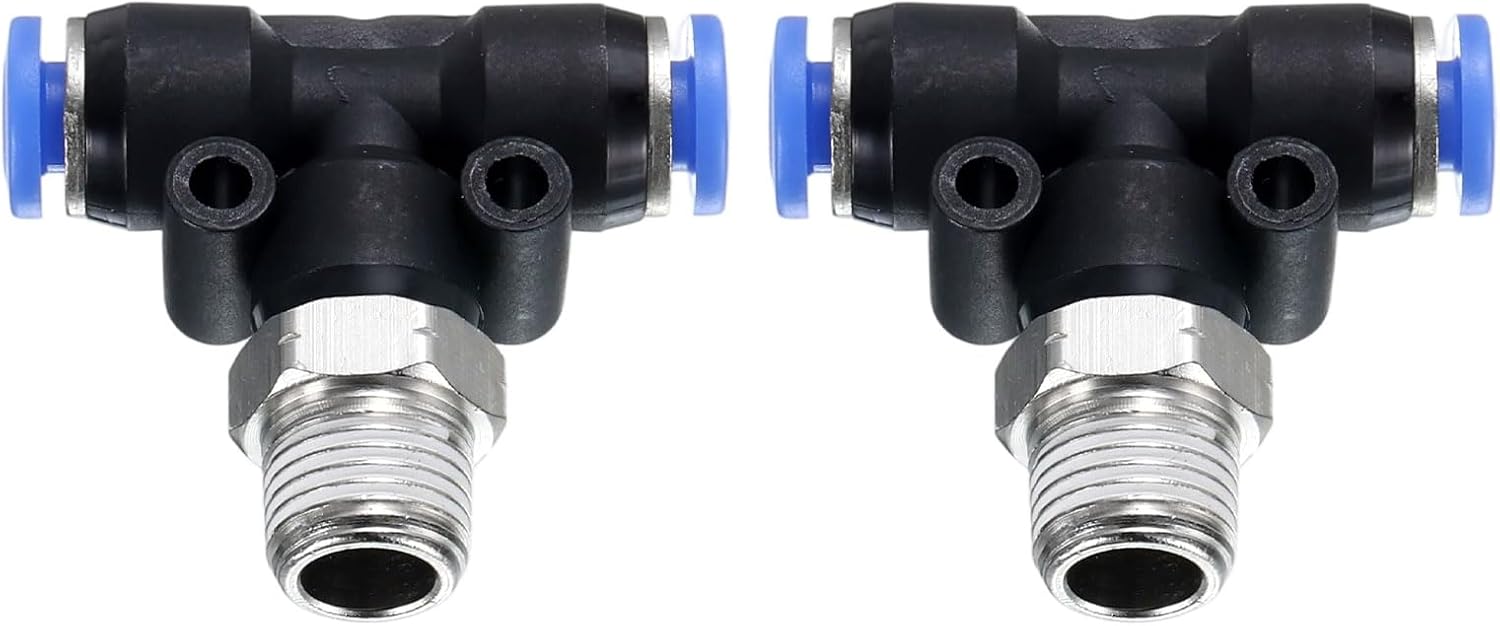

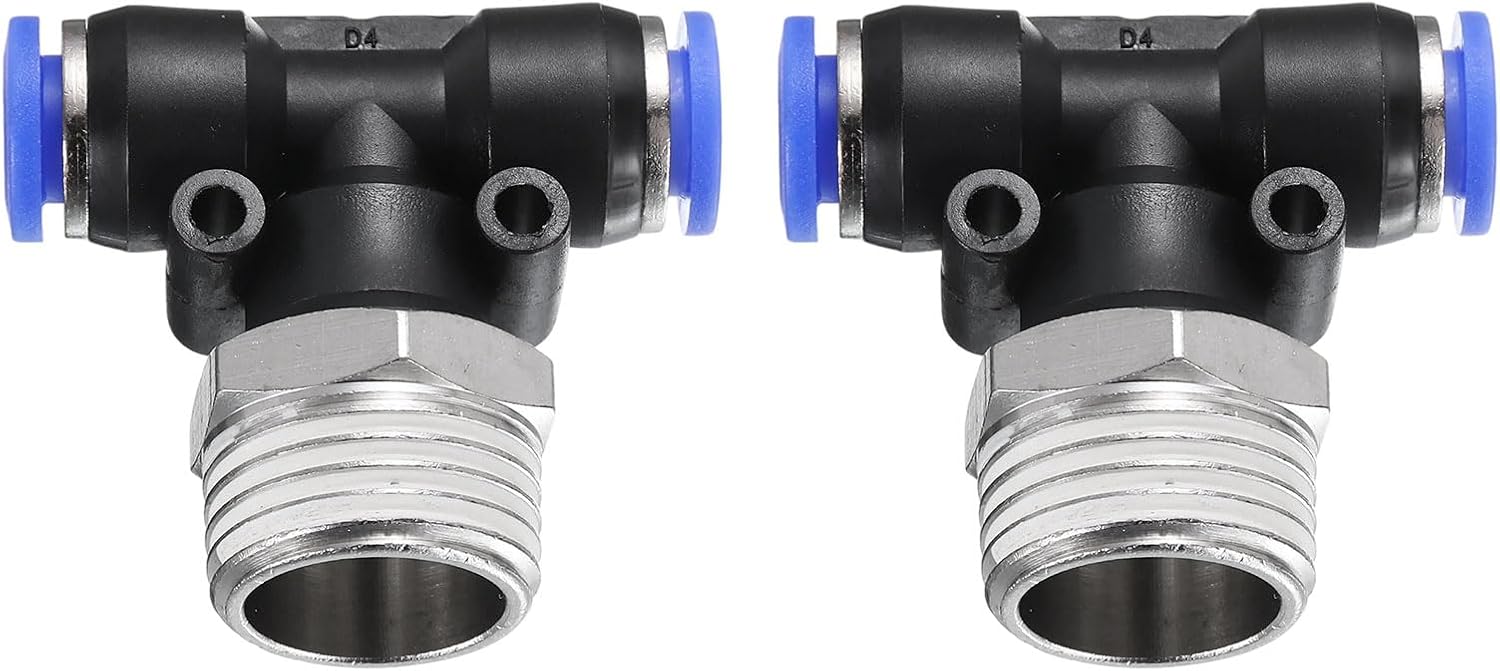

HARFINGTON 2pcs Air Line Fitting 4mm Tube OD x NPT 1/4 Thread PT4-U Pneumatic Male Branch Tee Quick Push to Connect Brass Air Line Hose for Industry Air System
4.8 (112 items)
Limited Time Sale$3.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228873803 | Release Date | 2026/05/31 | List Price | $2.40 | Model Number | 228873803 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Size - Inner: 4mm / 0.16"; Outer dia.: 10mm / 0.4"; Thread size: NPT 1/4 Thread; Total length in pipe direction: 36mm / 1.4"; Total length in thread direction: 34mm / 1.3"; Thread length: 9mm / 0.35"; Metal opposite side size: 14mm / 0.55"; Fixing hole diameter: 3mm / 0.12"; Fixing hole spacing: 14mm / 0.55".
- Material - The branch tee connector fittings are made of brass and PBT materials, with nickel plating on the surface to ensure better corrosion resistance and wear resistance. Push to connect air line fitting transport air or fluid from one pipe to two directions, or combining two pipes into one direction.

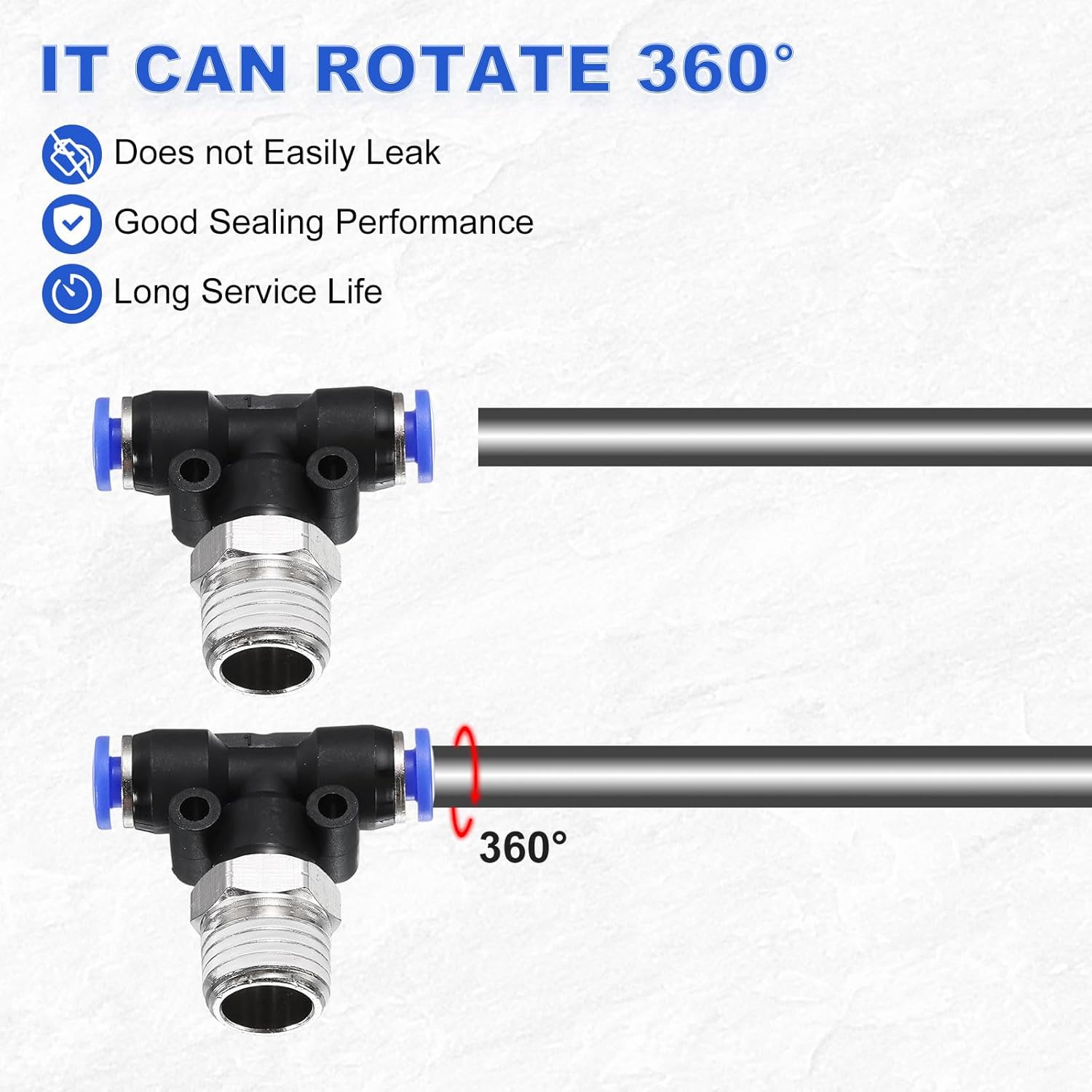

- Feature - Male branch tee connection fittings adopt a compact design to prevent falling off and ensure quick connection of the gas pipe. Working temperature range: -40~60℃, working pressure range: 0-1MPa, ultimate pressure:1.6Mpa. It has strong pressure resistance and is suitable for high-pressure environments, with excellent sealing performance and effective leakage prevention.

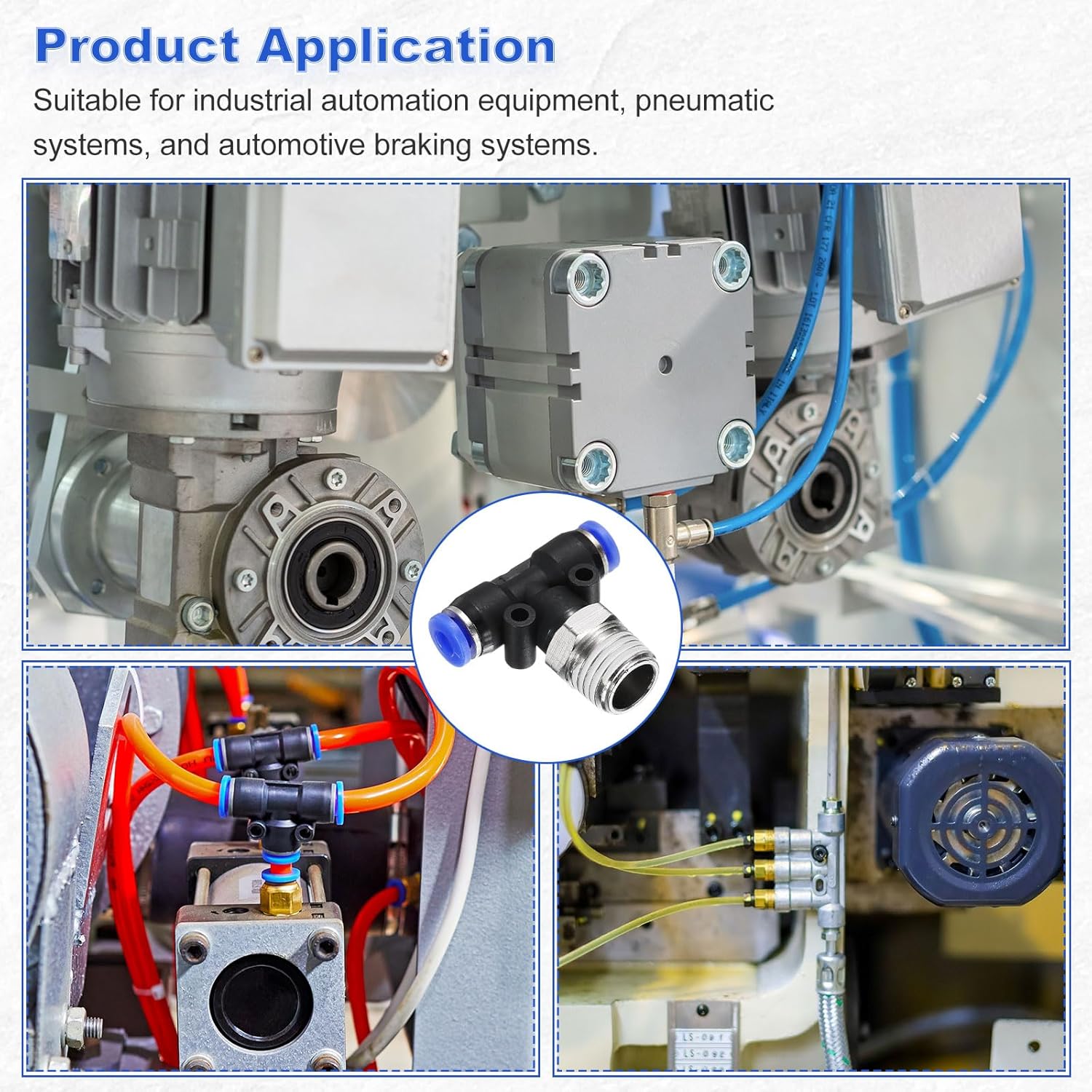

- Application - Suitable for industrial automation equipment, pneumatic systems, and automotive brake systems. Tee connectors are commonly used in various applications. They are suitable for water supply systems to connect main pipelines with branch pipelines, gas pipelines to distribute gas to multiple devices, and irrigation systems for directing water to different areas.
- NOTE - Please pay attention to the size when purchasing. Please pay attention to ensure a tight seal and prevent air leaks when installing.
| ASIN | B0F1FGYVXN |
|---|---|
| Size | 4mm x NPT 1/4" |
| Color | Black Blue |
| Brand Name | HARFINGTON |
| Unit Count | 2.0 Count |
| Manufacturer | HARFINGTON |
| Model Number | 2 |
| Material Type | Brass |
| Connector Type | Adapter |
| Exterior Finish | Brass |
| Item Dimensions | 3.54 x 2.36 x 0.59 inches |
| Included Components | Air Line Fitting |
| Manufacturer Part Number | hta250223hh000252 |
