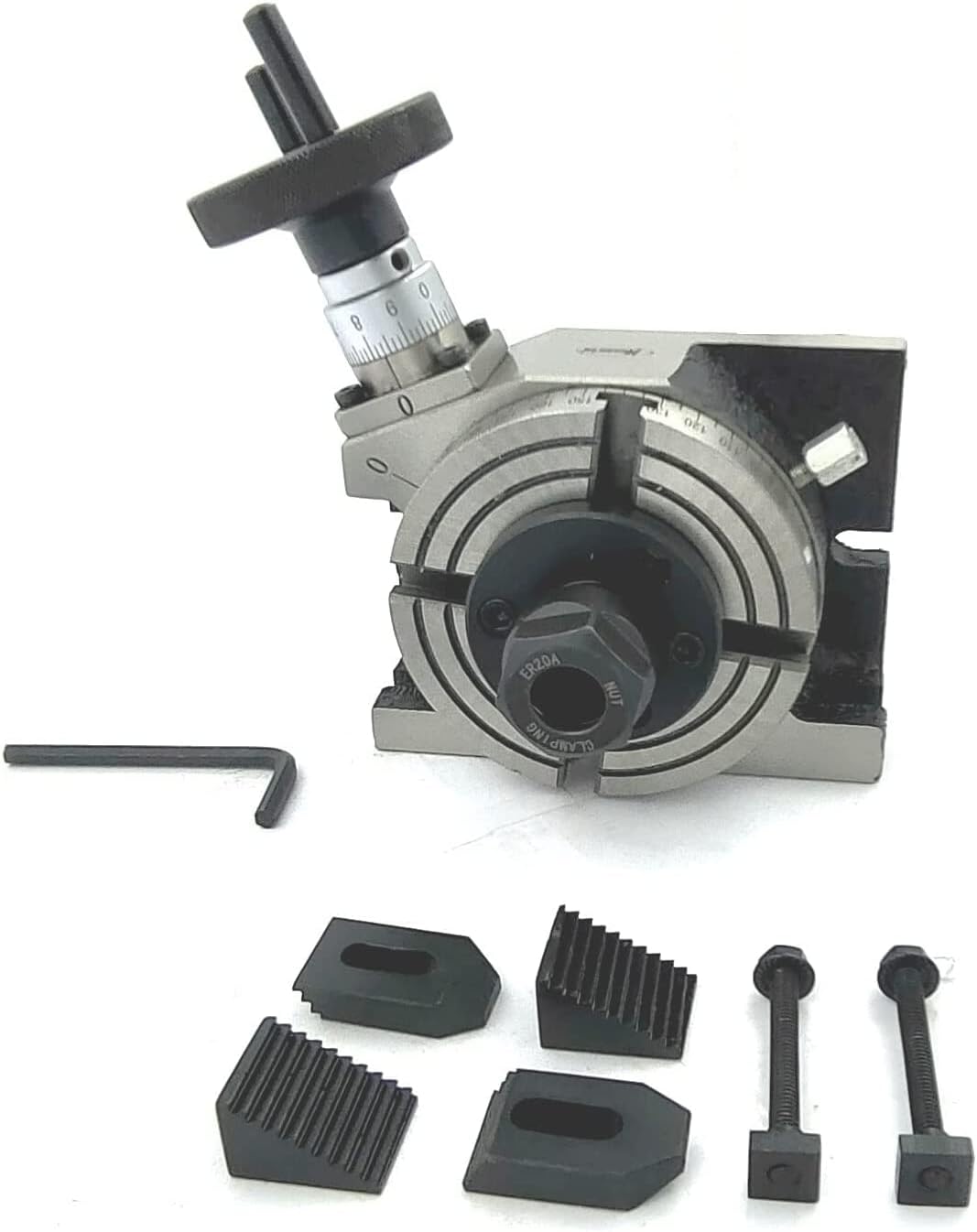

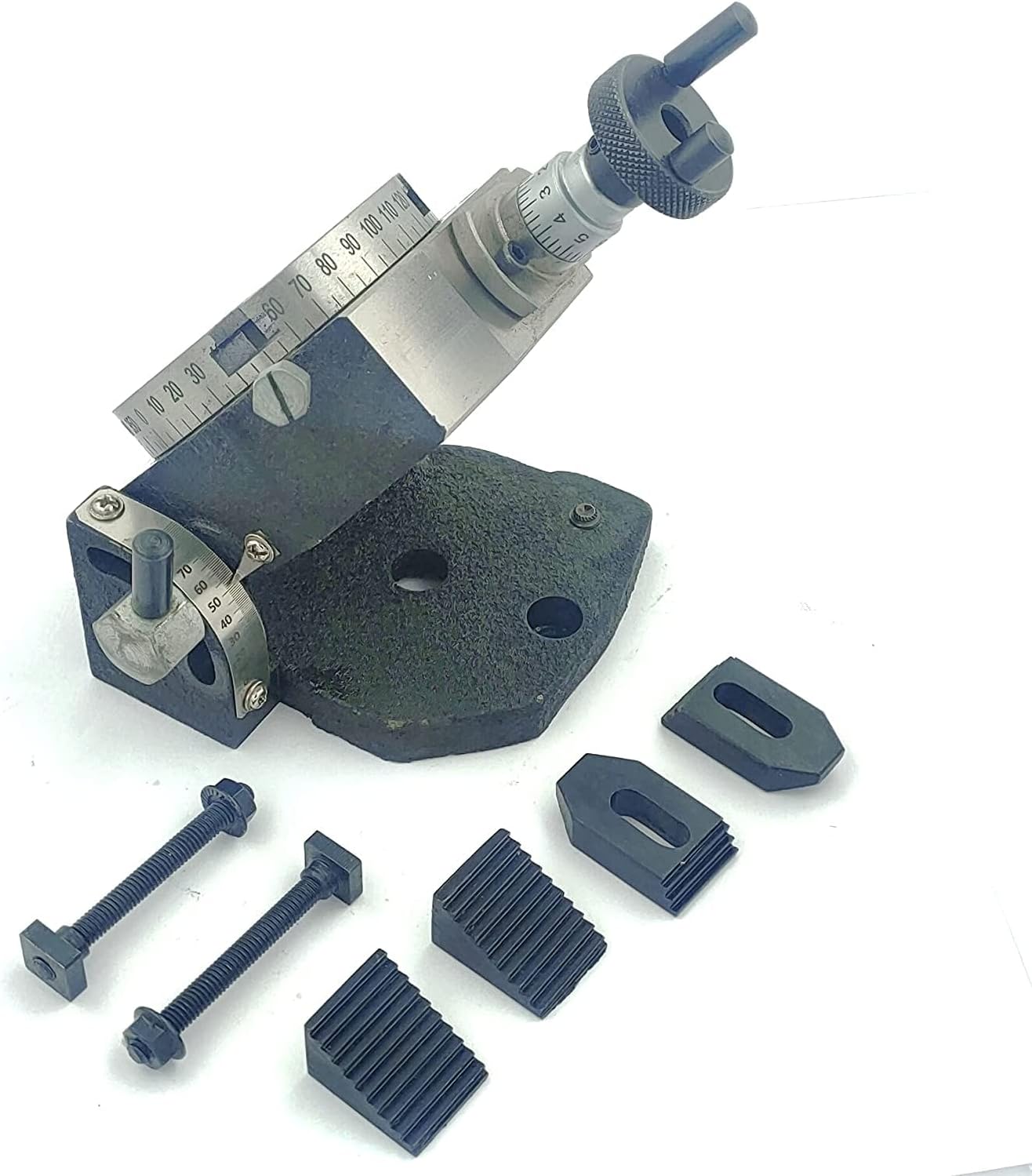

Buyohlic Rotary Table Milling Machine Tools ((3"/80mm Tilting & M6 Clamp Kit)))

Made out of high grain casting, this precision quality low profile rotary table diameter is 80 mm (3"Inches ) and is most popular light weight rotary table for small and light duty milling operations. Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero. Total Height when laid flat is 1-3/4" ( 44 mm ). Center Height in vertical position: 1-3/4" (45 mm approx). Can be clamped both Horizontally and Vertically. Total height of the assembly with a ER16 collet adaptor is 80 mm, and 82 mm when clamped with a ER20 adaptor. Base Dimensions : 110 x 85 mm with 2 x U slots (7.5 mm wide) each wall for Horizontal and Vertical clamping purpose. Also Supplied with a suitable M6 Clamp kit along with this rotary table. Clamp kit is hardened and precisely ground before being epoxy black finish for a rust free life. It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc.

• ER-16 & ER-20 Collet- Base plate crafted to fit both 3-slot and 4-slot rotary tables seamlessly Versatile compatibility without compromising stability.Includes securely fastened T nuts for easy and secure installation.Suitable for 3" (80 mm) and 4" (100 mm) rotary tables Epoxy black finish ensures rust-free longevity.Collet adaptor designed for precision machining operations under 5 microns.
• M6 Clamp Kit - A clamp kit for a rotary table is used to secure workpieces onto the rotary table during machining operations. Rotary tables are often used in machining setups to enable circular cutting, hole drilling, and other operations around a fixed axis of rotation. Clamp kits typically consist of various clamps, bolts, nuts, and T-slot nuts designed to fit the T-slots or other mounting features on the rotary table. These components allow you to securely fasten the workpiece to the rotary table, ensuring it stays in place during machining. This Set includes Following: 2 x step blocks 2 x tee bolts with flanged nut M6 thread 2 x clamps Bolt length: 55 mm overall & Bolt Thread M6
• We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.
