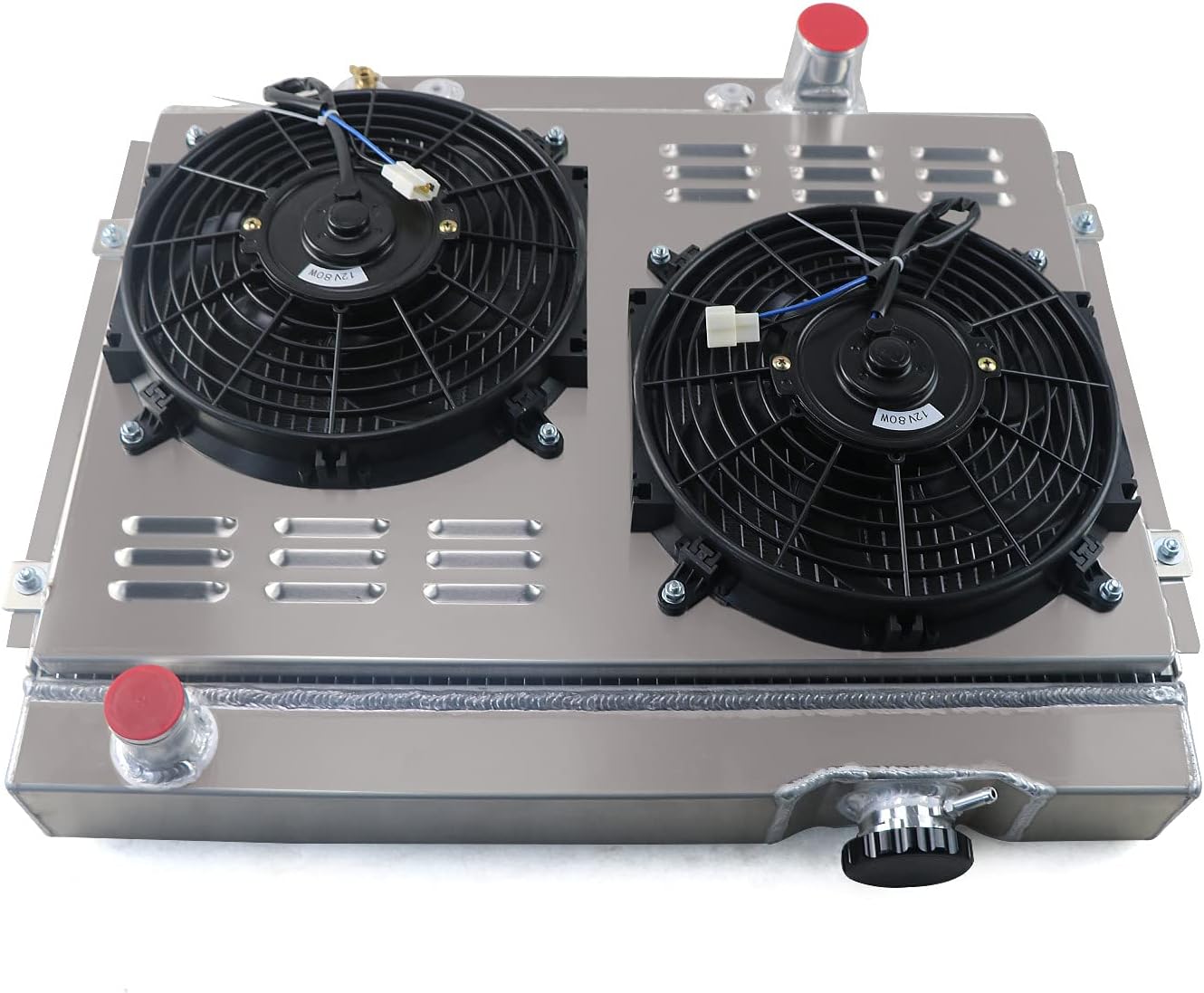

4 Row Aluminum Radiator For 1967-1970 Ford Mustang Mercury Cougar XR7 Radiator + Shroud + Fan + Relay

Fitment For 1967-1970 Ford Mustang/Mercury Cougar V8 For 1967-1969 Ford Fairlane/Ranchero/Falcon V8 Fit for both Automatic and Manual Transmission !This Listing Is Including 1 X 4-Row Aluminum Radiator (Includes Radiator Cap)1 X Aluminum Shroud2 X 10" Fans (Includes mounting kits)1 X Thermostat Relay Kit Radiator Details Row Count: 4 Row Upper Inlet: 1.5in located on driver side Lower Outlet: 1.75in located on passenger sideTrans Cooler Details: 1/8-27NPT Surface Finish: Aircraft Grade Raw Aluminum OEM style brass petcock drain CNC machined filler neck and cap Fans Size Maximum Fan CFM: 2500±200 Fan Diameter (in): 10.050" Thickness (in): 2.500" Number of Blades: 6 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Part Number Manufacturer Part Number:379,CC379,CU379 DPI379 AE379 EC379

• Core Size: 24" wide x 16-5/8" tall Overall size :25-1/2" wide x 21-5/8" tall
• Inlet/Outlet Diameter:1.5in/1.75in
• Package Include: Come with 1 x 4 Row Complete Radiator.1x Aluminum Shroud.2 x 10"Fans.1x Thermostat Relay Kit
• Each radiator is subjected to an aging and endurance test in order to validate its performance under extreme weather conditions.
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
