TIANIUSEEN Screen Frame Glue Free Self-Tension Silk Screen Printing Frame Stretching Frame 16 x 20 Inch Blue

Install the mesh:1.Loosen the four screws and align the inner edge of the aluminum pressure slot with the inner edge of the frame.2.Use aluminum alloy pressure mesh bar to wire mesh buckle into one side of the aluminum tank,straighten the mesh as far as possible,in the opposite side,wire mesh buckle into the alumi- num tank;Then buckle mesh into the other two sides.First use the hand electric drill to alternately turn the four screws,tighten the mesh.3.If the tension is not enough, use the reinforced inner hexagon wrench to continue to tighten the tension.Special tips:installation of the plate, because the force is not uniform,may cause a slight deformation of the pattern;If you need to correct, you can paste the original film or 1:1 printed copy on the plate,and then align the screen pattern with the original copy by fine-tuning the four-side screw of the screen frame.Before printing,the foamed rubber strip can be inserted between the mesh and the frame.the edge can be sealed with tape.Remove the mesh:Evenly loosen the four side screws of the mesh frame. Using the open cover handle to insert the horizontal edge of the aluminum alloy batten. Lift the handle to open the batten easily.Remove the mesh and save the mesh.

• 【PARAMETER】Frame outer size: 18.7x22.7 inch; Frame inner size: 16x20 Inch; Printing pattern size should be less than 14x18 inch. The screen mesh size should be larger than 19x23 inch.PLEASE PAY ATTENTION TO THE APPLICABLE SIZE OF THE SCREEN FRAME BEFORE PURCHASING

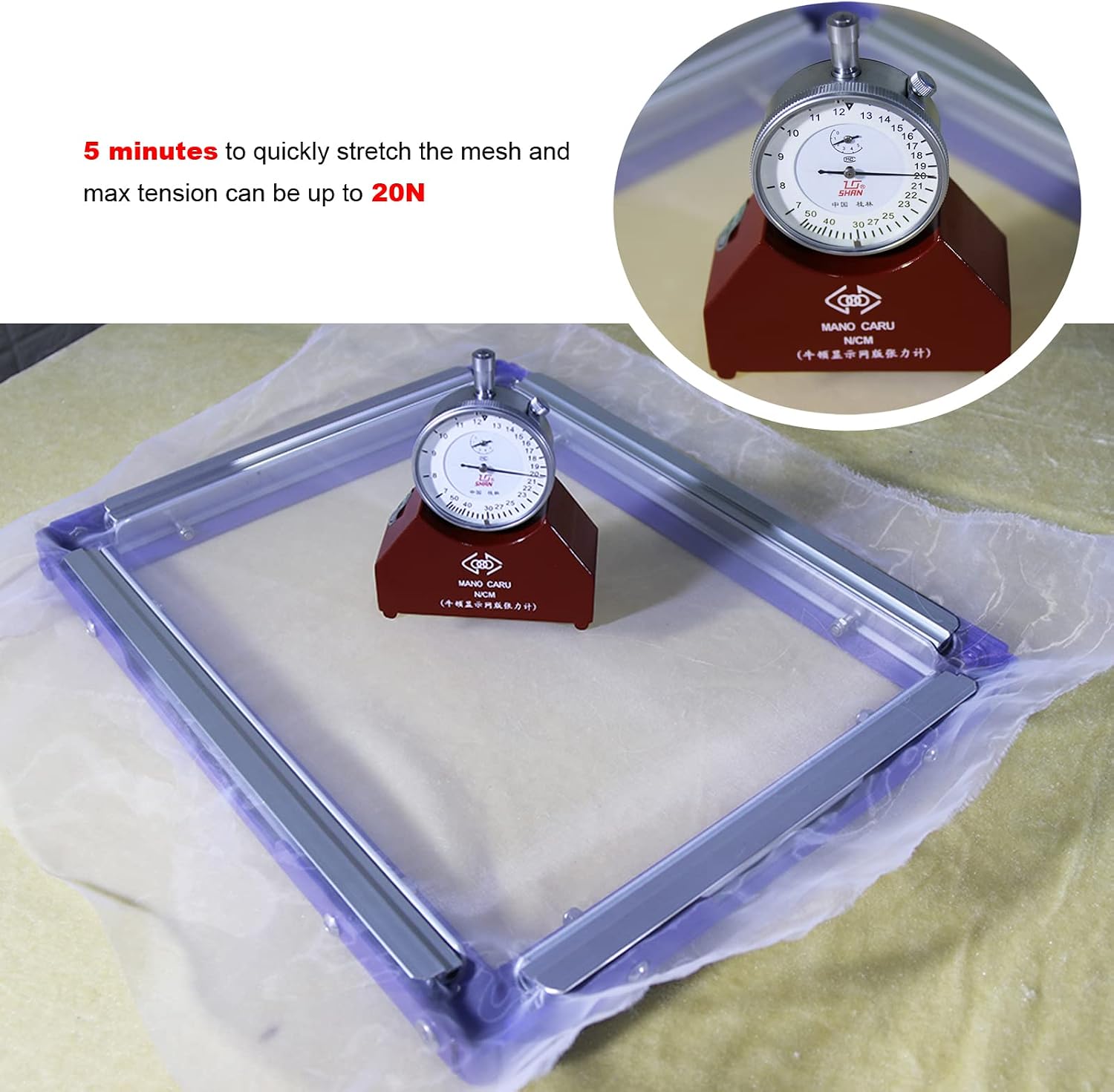

• 【FAST AND CONVENIENT】This is a screen frame that stretches the screen without any additional tools or equipment. 5 minutes to quickly stretch the mesh and max tension can be up to 20N. It's also a glue-free frame that allows you to stretch the grid without using any glue or adhesive.
• 【EASY TO USE】A set of installation tools are included, allowing you to stretch the mesh easily. At the same time, for your convenience to practice before making your own screen, 1pc squeege and 1 yard screen mesh are provided for free
• 【HIGH QUALITY】Screen Frame made of strong steel and aluminum material. Electrostatic spray coating make this screen frame is rust proof and durable.The stretched mesh can be easily removed after rinsing and printing.It can be reused for stretching mesh and printing
• 【NOTES】A drill and wrench are required to adjust the tension when stretching the mesh. You can stretch the mesh faster with a electric drill. Please stretch each side evenly, do not tighten one side directly at the beginning. When making plates and printing, please seal the screen frame with rubber and tape
