Motor Reversing Solenoid, DPDT 12VDC 150 Amps Contractor Relay Switch for Tarp Motor, Winch, Hoists, Snowplows by ALL TRUCK PRODUCTS
4.5 (126 items)
Limited Time Sale$17.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 229193097 | Release Date | 2026/05/31 | List Price | $12.00 | Model Number | 229193097 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

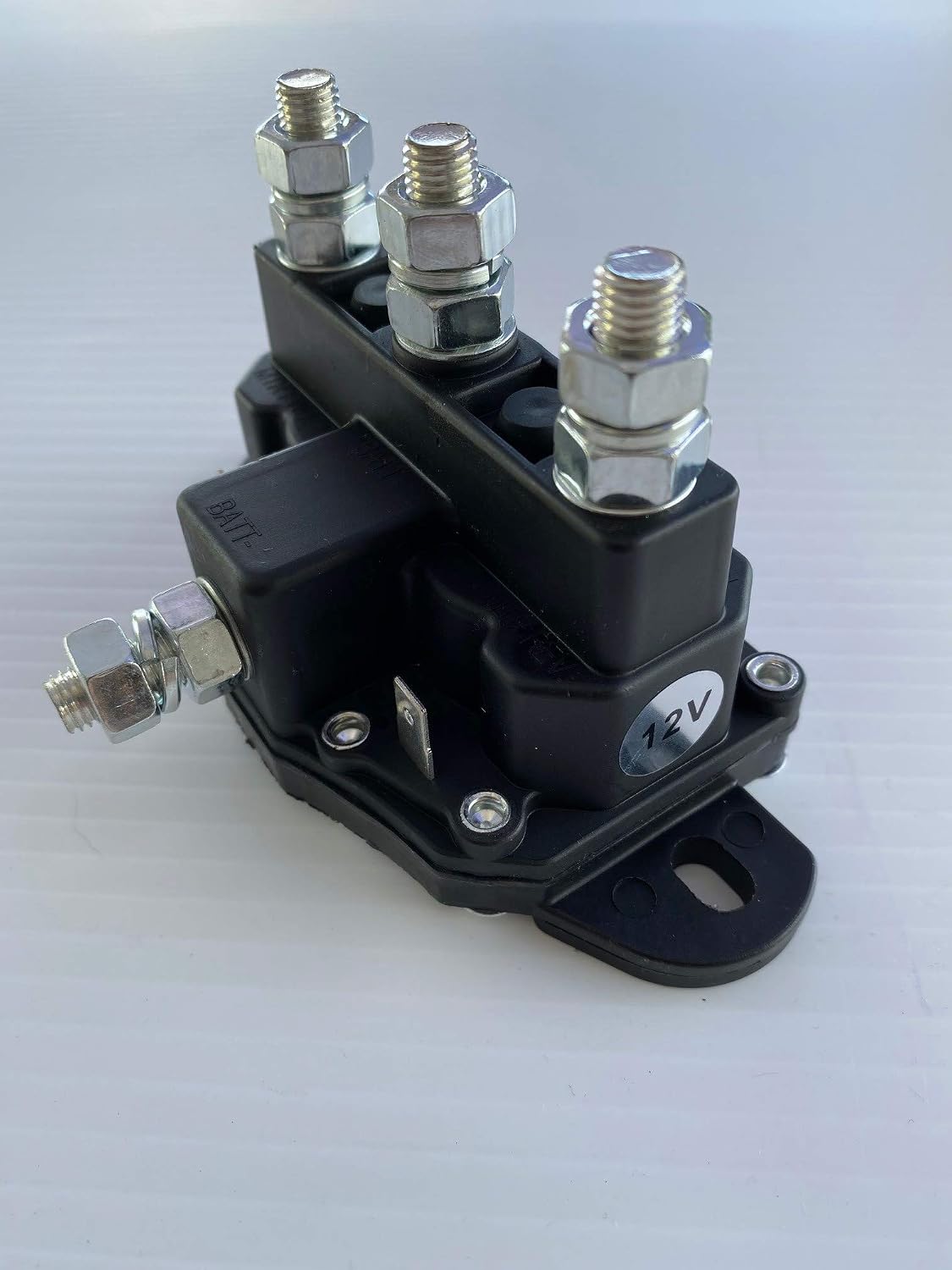

12V plastic solenoids are made of glass-filled nylon construction. This solenoid is light weight, durable and resistant to corrosion. The DPDT, insulated, intermittent motor reversing solenoid has two quick connect blades. Two solenoids in one for cost and space savings and simpler wiring. Two integral solenoids provide dynamic breaking for permanent magnet motors, when neither coil is energized. The solenoid is resistant to temperatures ranging from -40°C to 60°C. For reversing motors such as hoists, winches, windlasses and snowplow blades.
- 12 VDC, Alloy silver-plated contact material. Unit is grounded. Includes 150 Amp ground coils
- Handles up to 150A of power to your tarp system.
- Powers any reversing motor equipment. Ideal for electric tarp kit, boat lift, and winches
| ASIN | B085WC833Y |
|---|---|
| Brand Name | ALL TRUCK PRODUCTS |
| Part Number | ATP0108 |
| Coil Voltage | 12 Volts |
| Contact Type | Dpdt |
| Manufacturer | All Truck Products |
| Mounting Type | Socket Mount |
| Connector Type | Quick Connect |
| Current Rating | 150 Amps |
| Operation Mode | Motor |
| Contact Material | Silver-plated |
| Number of Terminals | 2 |
| Contact Current Rating | 150 Amps |
| Upper Temperature Rating | 60 Degrees Celsius |
| Minimum Switching Voltage | 12 Volts (DC) |
