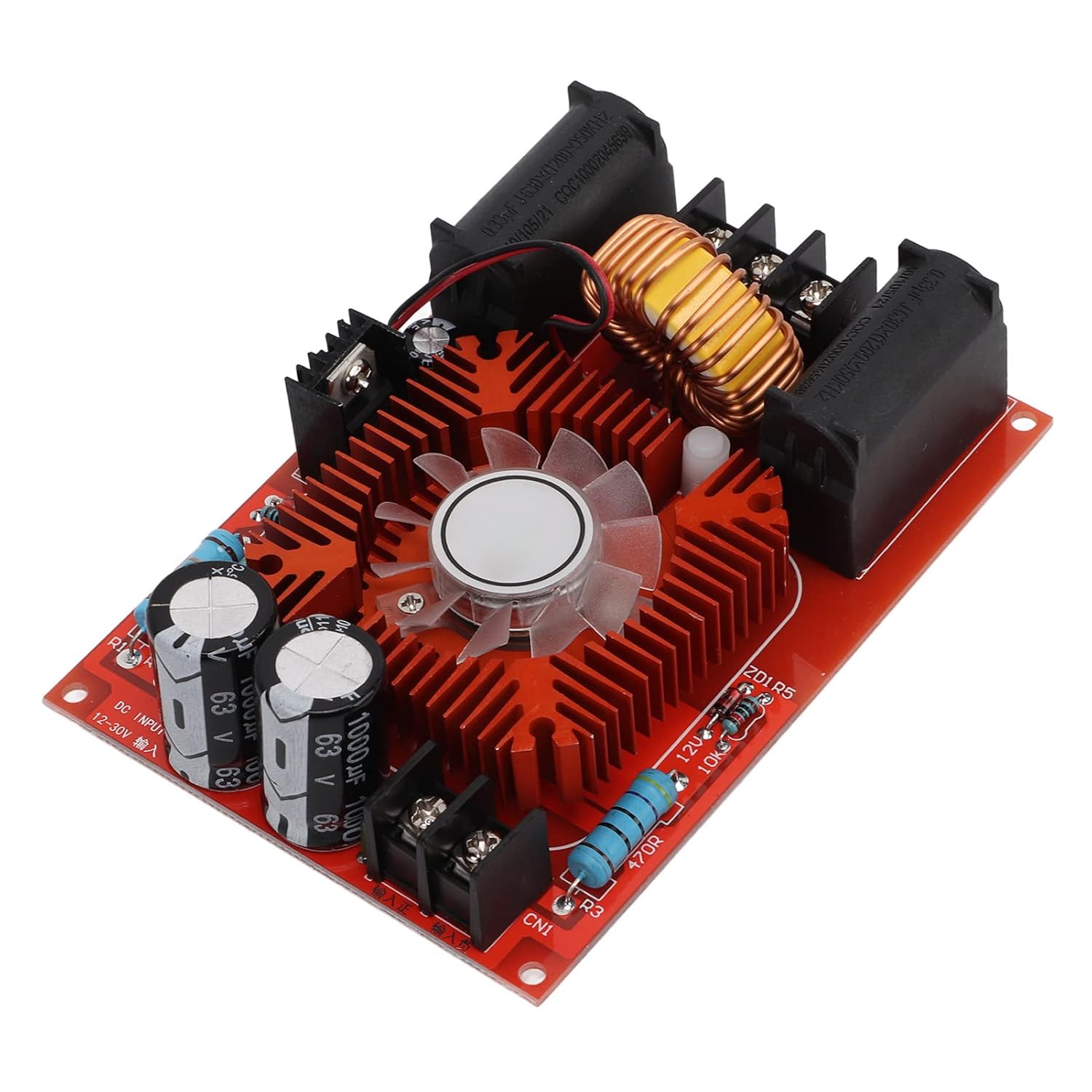

ZVS Driver Module 12V to 30V DC High Voltage Generator with Flyback Transformer Heater Coil Boost Power Supply Board for Induction Heating
5.0 (120 items)
Limited Time Sale$21.35 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 229299694 | Release Date | 2026/05/31 | List Price | $14.24 | Model Number | 229299694 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Flyback Drive Circuit: This high voltage generator uses zero voltage switching topology to drive flyback and ignition coils. The driver reduces switching loss and improves energy transfer efficiency during oscillation, providing consistent output for induction heating plasma arc and coil experiments.
- Low Heat Operation: The module features low resistance traces and graphic heat sink design with full window tin treatment at high current areas. This construction spreads thermal load minimizes hot spots.
- Double Layer Glass Fiber PCB: Built on dual layer FR4 glass fiber sheet with thickened copper and added tin on paths. This improves current handling capacity and prevents pad lifting during repeated soldering or vibration making the board suitable for long term lab and workshop use.
- Optimized Layout: The improved ZVS circuit uses stainless steel hardware and carefully arranged components to maintain stable oscillation. Input capacitors and snubber networks are pre soldered to reduce arcing and voltage spikes ensuring cleaner DC to AC inversion for sensitive experimental setups.
- Wide Compatibility: Works as a direct driver for flyback ignition coils and coils. Commonly used to build solid state coils induction heaters inverters and plasma speakers. A practical boost power supply module for university labs hobbyists and electrical engineering demonstrations.
| ASIN | B0BV7KS4KN |
|---|---|
| Item Weight | 15.5 ounces |
| Manufacturer | LiebeWH |
| Item model number | LiebeWHrmx04s3yd2 |
| Product Dimensions | 7.09 x 5.91 x 2.36 inches |
