3Row Radiator For 1917-1927 Ford Model T Bucket Chevy V8, Radiator+Shroud Fan For Ford Model T Bucket 17 1918 1919 1920 1921 1922 1923 1924 1925 1926 27

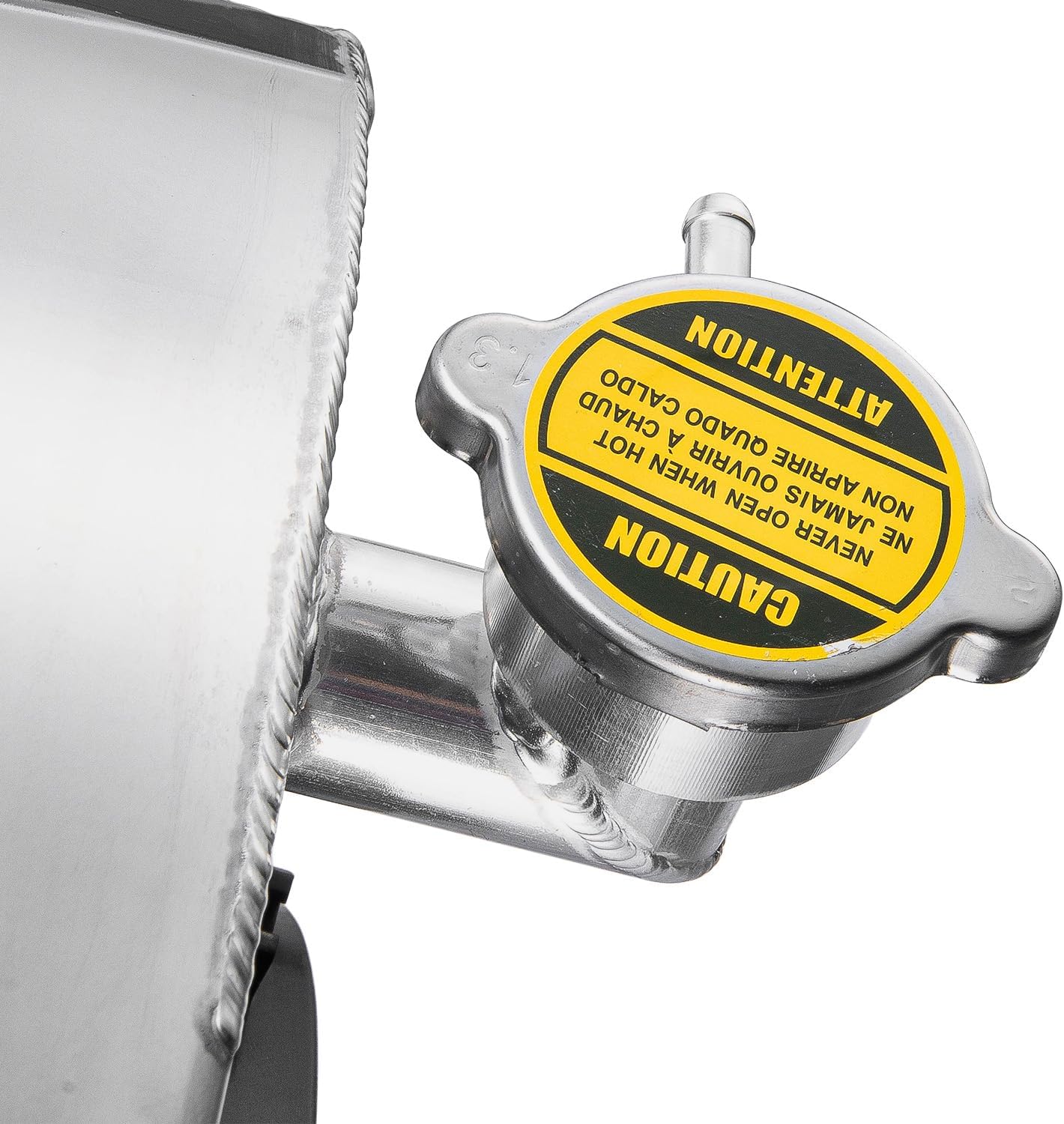

Package Include:1 X 3 Row Aluminum Radiator+Radiator Cap1 X Aluminum Shroud1 X 16" Fan (Includes mounting kits)Radiator Size: Material: AluminumHigh Performance Racing Spec.3-Row of tubes Core Racing DesignCore Dimensions: 18" (H) x 18-1/2" (W)Overall Dimensions: 24" (H) x 22-1/2" (W) x 6 1/2''(T)Inlet Location: 1-1/2" On Driver SideOutlet Location: 1-3/4" On Passenger SideTransmission Cooler: 1/8-27NPTOE/OEM Part Number: CC1005, EC1005, AE1005, MC1005The Radiator Fits:For 1917-1927 Ford Model T-Bucket with Chevy Configuration EngineFan Specification:Diameter : 16'' (Blade to Blade)Voltage: DC 12 VoltsWattage: 120WNumber of Blades: 10 S-Type bladesMaximum Fan CFM（Cubic Feet per Minute）: 3,000 cfmMaximum Fan RPM（Revolution(s) Per Minute）: 2000±10%Amp Draw: 10ampFan Thickness: 3.27"S-Type Blade pull push design, to make air flow more efficient and bring more cooling EffectPowerful 120 watt motor will keep your engine cool.

• [Radiator Fitment]: Direct-fit for 1917-1927 Ford Model T-Bucket with Chevy Configuration Engine
• [Radiator Specifications]: 3-Row of tubes Core Racing Design, Core Dimensions: 18" (H) x 18-1/2" (W), Overall Dimensions: 24" (H) x 22-1/2" (W) x 6 1/2''(T), Inlet Location: 1-1/2" On Driver Side, Outlet Location: 1-3/4" On Passenger Side, Transmission Cooler: 1/8-27NPT; OE/OEM Part Number: CC1005, EC1005, AE1005, MC1005
• [Highly Efficient Cooling]: The Pundimo radiator core is crafted from lightweight aluminum. Its tube and fin design is engineered to drastically increase the surface area. This, in turn, allows heat to dissipate way more efficiently. The aluminum construction not only cuts down on weight but also plays a crucial role in enhancing the overall cooling performance, making it a top - notch choice for various applications where efficient heat transfer is key
• [Proven Performance]: The Pundimo radiator has an increased coolant capacity, which means it can handle racing applications with ease. It's built to be more resilient against temperature swings. Made from aircraft - grade aluminum, this radiator outshines other common alloys when it comes to corrosion resistance. The brazed core technology used ensures peak performance and reliability, so you can count on it to keep your engine cool, race after race. Whether it's the intense heat of a long - distance race or the stop - and - go of a circuit track, the Pundimo radiator has got you covered
• [All - Aluminum Radiator]: The Pundimo radiator features a high - density core with cooling rows spaced just 3/8" apart. This design allows for 25% more rows in the core compared to standard aluminum radiators. The cooling fins, which make up a full inch of the total surface area, have 14 to 16 fins per inch. That's around 1,500 more cooling fins than what you'd find in typical aluminum radiators. All these features combined lead to a significantly improved heat dissipation capacity. So, if you're looking for a radiator that can really get the job done and keep your system running cool, the Pundimo all - aluminum radiator is the way to go
